Home > Instruments & Meters > Test Instrument > Test Machine > CBR-3 Digital Bearing Ratio Tester

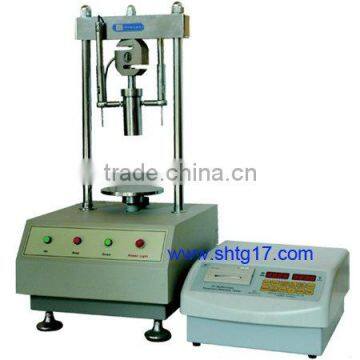

CBR-3 Digital Bearing Ratio Tester

Name: CBR-3 Digital Bearing Ratio Tester
Brand: SHTG
SKU: 141823314
Availability: InStock

CBR-3 Digital Bearing Ratio Tester thumbnail-1

CBR-3 Digital Bearing Ratio Tester photo-1

US$ 1,470 - 1,600 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

SHTG

Model Number:

CBR-3

Contact Supplier Request Quote Chat Now

Shanghai Civil & Road Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name SHTG

Model Number CBR-3

Power Electronic

Usage Other, Geosynthetics Clogging Tester

Specifications

Digital Bearing Ratio Tester
1.50KN capacity
2.Digital CBR tester
3.Easy operation ,full standard accessories

CBR-3 Digital Bearing Ratio Tester

1.50KN capacity
2.Digital CBR tester
3.Easy operation ,full standard accessories
4.Heavy-duty machine

1.General description

The machine features a rigid two-column frame with upper crossbeam, which can be adjusted in height and locked in position with locknuts. The drive force is provided by an linkage of motor, worm and worm wheel housed in the base cabinet, which also accommodates the motor and the electric panel. Can operated both by motor and manual handle

2.Specification

1)Max .load: 50KN Capacity

2)Test speed: 1mm/min(BS model)or 1.27mm/min(ASTM/EN model)

3)Size of the penetration rod: 50×100mm

4)Size of the cylinder: 152×170mm

CBR tester,Soil testing Soil tester,in situ CBR test; California bearing ratio; 30KN;50KN;1mm/min ,1.27mm/min

1.Accessories

Guide bracket and ball seating, adapter to fit pressure transducer, pressure transducer 50KN cap., connector pressure transducer/accessory, adjustable CBR penetration piston, adjustable transducer holder,25mm displacement transducer, digital controller plus data acquisition and processing system and so on.
