Specifications
Laboratory Stone Crusher1.Fast crushing of Aggregates, Ores, Minerals, Coal, Coke, 2.Chemicals and other similar materials

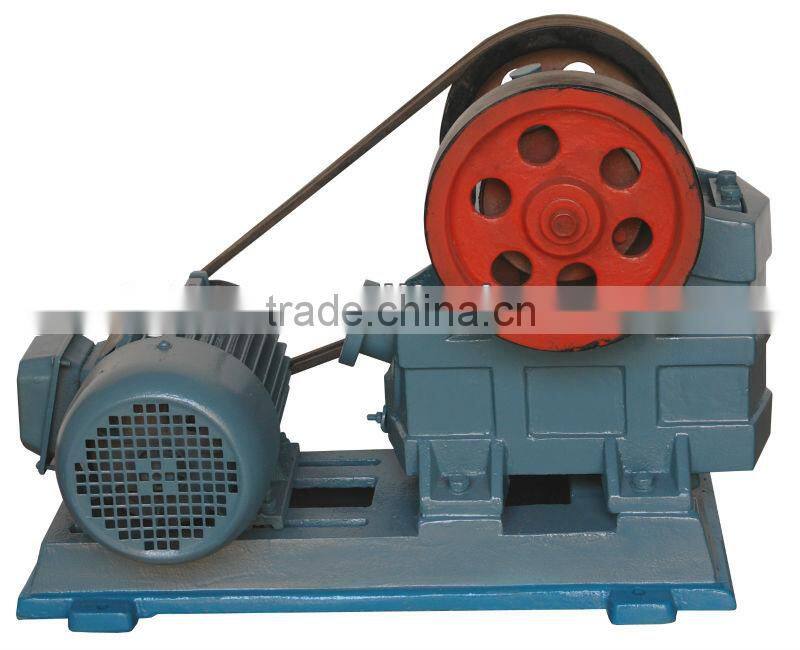

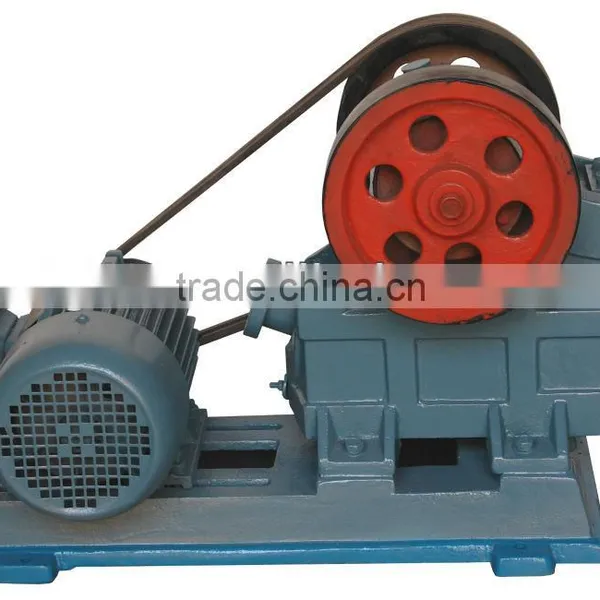

Laboratory Stone Crusher
Applications:
The is designed for fast crushing of Aggregates, Ores, Minerals, Coal, Coke, Chemicals and other similar materials. it is suitable for material with less than 2500Kpa compressoin strength It is compact and of rugged construction for general laboratory or small pilot plant operations.
Main Features:
Two jaws of manganese steel are provided in this laboratory Jaw Crusher. The moveable jaw produces two blows for every revolution, thus reducing over sizing to a minimum. A combination of forward and downward strokes with a rocking action exerts pressure on the coarser material, yet permits the finished material to pass through the jaws.
Parameters :
1. Opening : 100*60mm
2. Max feeding size: 45mm
3. Discharge opening :6-10mm
4. Capacity : 230-400KG/hour
5. Rotation speed : 1400rpm
6. Power : 15KW
7. Dimension;355*330*378mm
8. Weight :150KG
