Specifications
Automatic sieve shaker1.Side locking driven motor saving space .
2.Sturdy basement supporting whole vibrating device

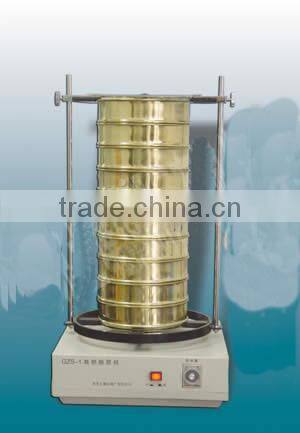

STSJ-4A High Frequency Sieve Shaker- automatic sieve shaker
Application:
The GSZ-1 High-frequency Sieve Shaker is mainly used for graded analysis of non-cohesive and dry grain substance(soil material).
Specifications:
1. Shaking frequency: 2500/min
2. Shaking method: up and down
3. Shaking amplitude: 1.5mm
4. Time setting: 0 – 60min. selectable
5. Motor power: 25W
6. Sieve size: 200 x 50mm (9 level) or 300 x 75mm (7 level)
sieve opening: 20 – 0.75mm
7. Power supply: 220V 50Hz
8. Dimension: 430 x 430 x 750mm3
9. Weight: 16kg

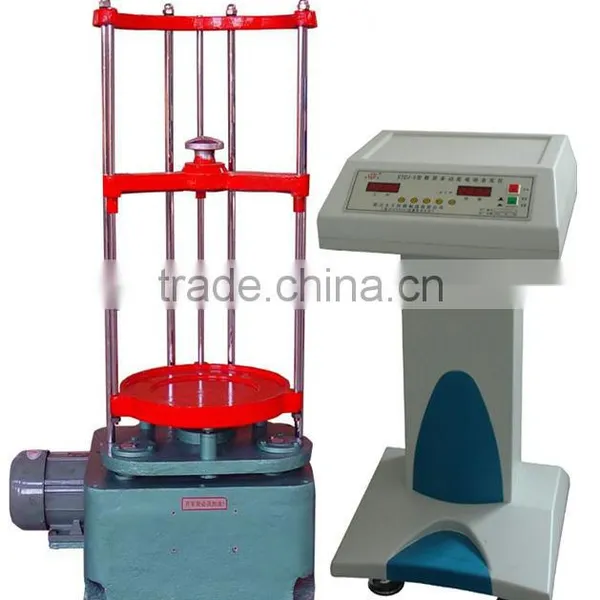

STSJ-4 Digital display high frequency sieve shaker- automatic sieve shaker
Applications:
The Machine is used in sieve analysis of materials in laboratory and widely used in Geology, Metallurgical industry, Chemical industry, Building industry, Coal industry, National defense, scientific research, Grinding wheel manufacturing and cement industry etc..
Specifications:
1. Diameter of sieves to be used: 300mm or 200mm
2. Overlapping height of sieves: 440mm
3. Amplitude of sieve base: 8mm 4. Shaking frequency: 221times/min
5. Shaking compacting times: 147times/min.
6. Slewing radius: 12.5mm; 7. Power of motor: 0.37kW 1400rpm
8. Dimension: 600 x 400 x 880mm (L x W x H) 9. Weight: 130kg
Main Features:
Side locking driven motor saving space .
Sturdy basement supporting whole vibrating device
Three dimensional frame structure locking testing sieves
Digital display device showing shaking times and time
High quality fasten jigs locking testing sieves
Order information:
1. You should buy additional testing sieves separately.
2. Additional testing sieve with 200mm or 300mm diameter

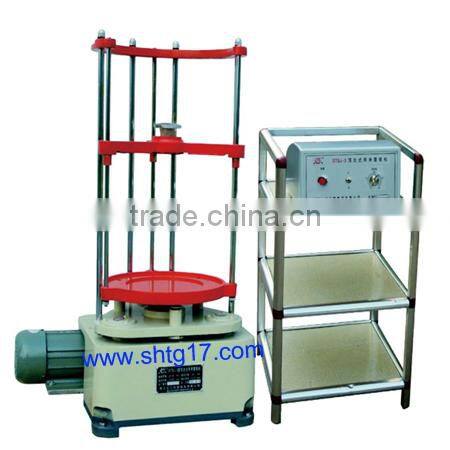

STSJ-3 Laboratory sieve shaker- automatic sieve shaker
Specifications
Lab Sieve Shaker
1.Side locking driven motor saving space .
2.Sturdy basement supporting whole vibrating device
Applications:
The Machine is used in sieve analysis of materials in laboratory and widely used in Geology, Metallurgical industry, Chemical industry, Building industry, Coal industry, National defense, scientific research, Grinding wheel manufacturing and cement industry etc..
Specifications:
1. Diameter of sieves to be used: 300mm or 200mm
2. Overlapping height of sieves: 440mm
3. Amplitude of sieve base: 8mm 4. Shaking frequency: 221times/min
5. Shaking compacting times: 147times/min.
6. Slewing radius: 12.5mm; 7. Power of motor: 0.37kW 1400rpm
8. Dimension: 600 x 400 x 880mm (L x W x H) 9. Weight: 130kg
Order information:
1. You should buy additional testing sieves separately.
2. Additional testing sieve with 200mm or 300mm diameter .
