Negotiable
MOQ: 1 Case (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
SHTG
Model Number:
ST4001
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
SHTG
Model Number
ST4001
Usage
Other, Stainless Steel Grid Sieves for Aggregate
Specifications
1.Grid Sieves2.Size: 300*300mm
3.Material:stainless steel
4.Grid with 5mm diameter are fixed on metal frame

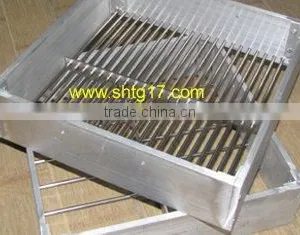

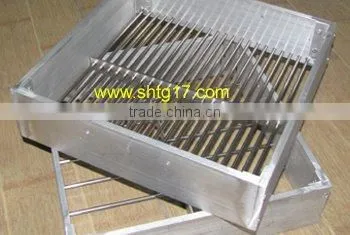

Grid Sieves
Standard: Confirming to EN933-3:1997
Application:
Size : 300×300mm, Grid with 5mm diameter are fixed on metal frame
Made from stainless steel , light structure, solid and corrosion-resistant , Long life .
oPtiona Sizes:
Item No Grid width Dia of material Net weight
Grid-2.5 2.5 5mm-4mm 3.2kg
Grid-3.15 3.15 6.3mm-5mm 3.1kg
Grid-4 4 8mm-6.3mm 2.9kg
Grid-5 5 10mm-8mm 2.8kg
Grid-6.3 6.3 12.5 mm-10mm 2.6kg
Grid-8 8 16mm-12.5mm 2.5kg
Grid-10 10 20mm-16mm 2.3kg
Grid-12.5 12.5 25mm-20mm 2.2kg
Grid-16 16 31.5mm-25mm 2.1kg
Grid-20 20 40mm-31.5mm 2kg
Grid-25 25 50mm-40mm 1.9kg
Grid-31.5 31.5mm 63mm-50mm 1.8kg
Grid-40 40mm 80mm-63mm 1.7kg
Model | Application | Sieves opening (mm) | Frame |
FB-2 | Soil analysis sieve | 0.075; 0.15; 0.3; 0.6; 1.18; 2.36; 4.75; 9.5 | Ø 200 x 50mm |
FB-3 | Sand analysis sieve | 9.50,4.75,2.36,1.18,600um,300um,150um | Ø 300 x 75mm |
FB-4 | Stone analysis sieve | 2.36,4.75,9.50,16.0,19.0,26.5,31.5,37.5,53.0,63.0,75.0,90.0 | Ø 300 x 75mm |
FB-5 | Asphalt analysis sieve | 0.075; 0.15; 0.3; 0.6; 1.18; 2.36; 4.75; 9.5; 13.2; 16; 19; 26.5; 31.5; 37.5; 53 | Ø 300 x 75mm |
FB-6 | Wash sieves | dia 120mm, 0.75mm |
|
FB-7 | Cement Sieves |
|
|
