Aggregate Abrasion Machine

Specifications

1. New Model
2. ASTM C131, EN1097-2, AASHTO T-96
3. good paint ,rustroof, Safety stop button

Aggregate Abrasion  Machine



Standard: Meets ASTM C131, C535; AASHTO T96.



Function:

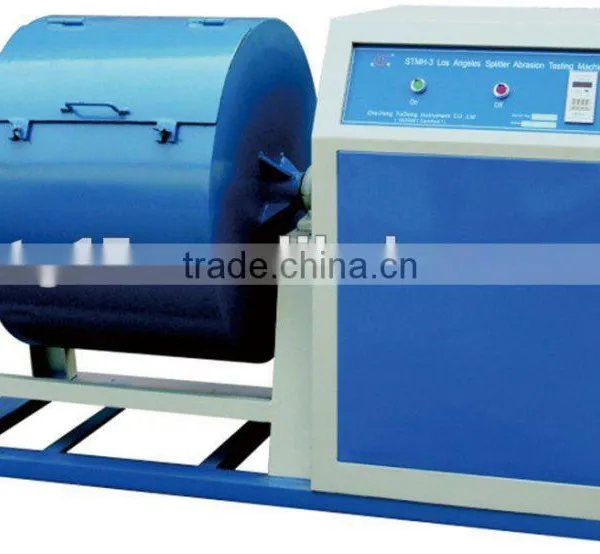

The Los Angles Abrasion Machine is used as a quality control tool for aggregates, including crushed rock, gravel and slag. The testing method determines the degradation when subjected to abrasion, atttrition, impact and grinding.



Main Technical Data:

Cylinder drum=719×510 ( diameter× Inner length)
Rotate speed3033 RPM
Working voltage AC380V

Counter digit counter (show the number Automatically, preset times and time)
Steel ball48  12pcs /set

Dimen.: 1650 x 910 x 1150mm

Shipping wt. 428kg



Feature: Includes revolution counter, material catch pan and 1 abrasion charge consisting of 12 hardened-steel balls.
