gas patio heater ignition valve parts furnace ignition igniter gas valve chimeneas

Name: gas patio heater ignition valve parts furnace ignition igniter gas valve chimeneas
Brand: NDK
Price: Negotiable

FOB Price

Negotiable / Piece

300 Pieces(Min.Order)

Supply Ability 100000 Set / Sets per Month
Port keelung
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Storage / Tankless:	Other	Certification:	CE, CSA, UL	Place of Origin:	Taiwan
Brand Name:	NDK	Model Number:	BK-368

Product Description

Specifications

1. Remote Control
2. CE & UL & CSA Approved
3. For fireplace and BBQ
4. Both NG & LPG
5. With Gas valve & Ignition

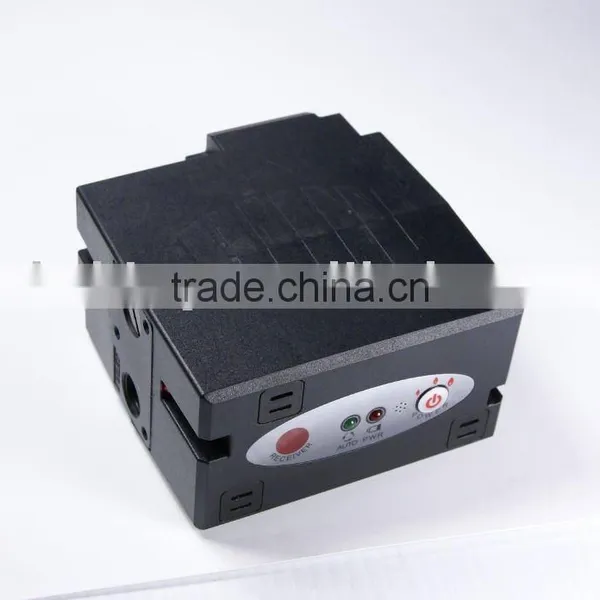

Fireplace Gas Valve Control System with Remote Controller (BK-368)

Hot Point :

1. IR Remote Controlled

2. CE & UL & CSA Approved
3. For fireplace and BBQ..etc.
4. Both NG & LPG
5. Includes of Gas valve & Ignition

Specification :

1. Gas Type: Both Natural Gas & LPG (Propane)

2. Capacity: Can be adjusted by your market needs

NG : Max 45000 BTU / hr

LPG : Max 90000 BTU / hr

3. Temperature : ~ 80^.C (175^.F)

4. Operation Voltage : 110 / 220 VAC ; 3 VDC

5. Output Voltage : 12 kV / min

6. Ignition Circles : 6 Hz at 3VDC

7. Maximum Operation Pressure : 1 / 2 psi (3.5 kpa)

8. Flame Faliure Respone Time : 25 +/- 5s (safty control system)

1. There are three stages of fires on this system. Small—>Medium—>Big fires

2. All function is controlled by remote controller which means end consumers never use their hands to turn on/off under freezing weather again.

3. The most important thing is saftey. There are two gates of valve (all four valves) to contol the flow of gas in order to avoid the leakage of gases.

4. There is a Children saftey device on remote controller. Operator has to press Key press for 2 senconds to unlock and press the power key again then to turn on the heater.

5. Flame our saftey device. Please kindly find the operation rule in specification page 5.

6. Customerization service: we can adjust the BTU based on the gas pressure to match your markets demand to make sure the stability of fires.

7. There are 2 kinds of remote controller for choice. One is simple one for elderly people ti use; another is one with LCD monitor for younger and fashion people choose.

8. Only main system and 1 remote controller are necessary. Other accessries are optional
