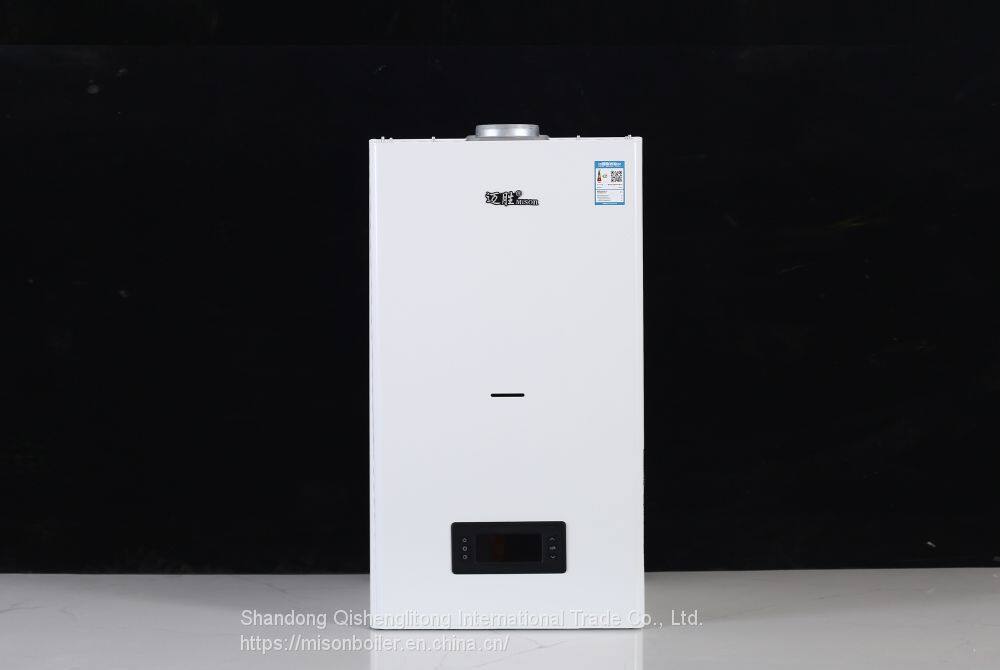

WALL MOUNTED GAS BOILER
MS-1 series :20kw 24kw 28kw 32kw 36kw
MS-1 Features
● WIFI smart contral, Efficient large LCD screen display, touch operation.
● Multiple security protections for safer use.
● Full combustion, full heat exchange, reasonable control.
● Thermal efficiency of more than 90%, energy saving of more than 20%.
● High configuration, long service life and low failure.
The simple controls, backlit LCD display, pressure gauge, time clock and intuitive button layout make it easy to manage warmth and comfort to your home.
Standard | GB25034-2020 GB20665-2015 | |||
Model | L1PB20 | L1PB24 | L1PB26 | |
Gas Type | NG | |||
Rated Gas Pressure | 2000Pa | |||
Working Gas Pressure | 1500-3000Pa | |||
Gas flow(m³/h) | 2 | 2.4 | 2.6 | |
Rated Max.Heat Input(KW) | 20 | 24 | 26 | |
Rated Max.Heat Output(KW) | 18 | 21 | 23.4 | |
Min. Heat Input(KW) | 8 | 9.6 | 10.3 | |
Min. Heat Output(KW) | 7.2 | 8.6 | 9 | |
Rated Power(W) | 120 | 120 | 120 | |
Voltage/Frequency | 220v/50hz | |||
Heating reference area(m2) | 100 | 130 | 150 | |
Heating | Working Water Pressure | 0.3Mpa | ||
Max Temperature | 80℃ | |||
Systerm temperature range | 30℃-80℃ | |||
Expansion tank (L) | 6 | 6 | 6 | |
Heating temperature setting range | 30℃-50℃ | |||
Hot water | Setting Temperature Range | 30℃-65℃ | ||
output rate of hot water | (△t=30k) | (△t=30k) | (△t=30k) | |
Min. start-up flow | 3L/Min | |||
Working Water Pressure | 0.05-0.8Mpa | |||
Heating Input/Output | G3/4” | |||
Hot water Input/Output | G1/2” | |||
Gas Input | G3/4” | |||
Product Dimensions(mm) | 740x400x310 | 740x400x310 | 740x460x310 | |
Weight(kg) | 33 | 34 | 35 | |
Exhaust pipe(mm) | φ60mmx100mm | |||
Appliance and Water protection grade | IPX4 | |||
