WG-2504 4-lines FXS SIP IP Gateway

WG-2504 4-lines FXS SIP IP Gateway

Dual IP Stack : IPv6 and IPv4 Simultaneously
Support up to 4 SIP proxy Servers
Support different SIP Trunk to each FXS line
Auto HTTP Provision feature
Flexible Routes Plan and Dial Plan
Redundant Firmware Image

Introduction:

WellGate 2504 is an 4-line FXS gateway with SIP protocol
IP device which allows to connect 4 sets of analog
telephone sets to make or receive VoIP call over Internet
or VPN network through Internet Telephony service
provider. This device is suitable for office user through
ITSP service provider to install at office or branch office
to call between different offices. It also can install at
trunk line in front of digital PBX to migrate digital PBX to
IP Telephony call.

To select up to 4 SIP service Accounts

WellGate 2504 is appropriate to use four VoIP Service Providers, IP Centrex service and
IP-PBX within offices and remote branch offices. One of four SIP Servers ( or ITSP
Service provider or alternative IP-PBX ) can be configured freely at each line ( FXS port )
to make or receive IP Call. It provides 4 service platforms to select lowest rate according
to your dial number or country.


IPv6 VoIP Gateway is ready to Market

IPv6 address was developed for years, however, it was not practical to our life up to
date. More and more electronic devices are able to link to IP Network, this makes
existing IPv4 address supply in shortage to global market. Meanwhile, the emerging
countries are not able to increase IPv4 address supply due to strong market demand
on broadband services. WellGate 2504 is an SIP based FXS gateway which built-in
both IPv6 and IPv4 IP address. No matter when you are ready to deploy IPv6 network
now, or reserve the future expansion to IPv6 from existing IPv4 address, WellGate2504
is ready to grow up with you. Both IPv6 and IPv4 address are working simultaneously
at Voice IP Call. Its flexibility of both IPv6 and IPv4 accept and interwork both
addresses on today and tomorrow whenever you need.

Flexible Dial plan and Route Plan Features

WellGate 2504 provides flexible Dial Plan from FXS to IP Trunk (SIP Softswitch). Dial Plan
is to configure in what condition the digits can be sent out to IP network. The dial inter
digit time before dialing is configurable to meet busy users or home user. Dial Rule is
able to detect the prefix code and maximum digits reached and then dial automatically.
The Digit Manipulation (DM) allows you to configure matched prefix code, digits length,
start and stop digit position to be replaced digits as well.
Route Plan is to configure the incoming and outgoing call routes which you desired this
call to go out or allow to income. For instance, IP incoming call may Ring to FXS port with
Priority, Cyclic or Simultaneously ring . You can also configure IP incoming call by Matched
prefix digits, Matched incoming FXS line number and Matched digit length. For FXS
outgoing call routes, the hunting type supports Priority, Cyclic or Simultaneously ring and
select which SIP trunk ( SIP Proxy Server ) to go. FXS outgoing call routes also support by
Matched prefix digits, Matched incoming FXS line number and Matched digit length. Both
direction supports No Answer time out and Backup Routes.


Suit to IP Telephony Service Provider

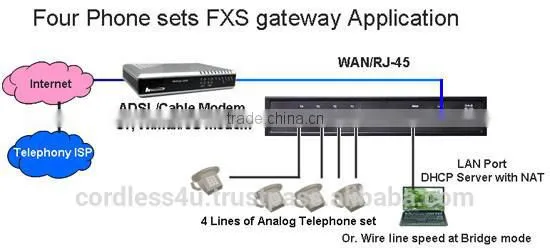

WellGate 2504 is a SIP IP device to connect with existing analog telephone set to make
IP call. Its compact design and easy installation allow office user or single user to make
or receive call just like an legend telephone call but less cost. It is compatible with
broadband internet service device such as ADSL/Cable Modem and WiMax/3G Modem.
It helps ISP provider to provide Telephony service to existing customer without
additional cable.

1 Year Warranty – Original made in Taiwan
