Outdoor IP66 Wireless Analog Input 4~20mA S05-AI

Outdoor IP66 Wireless Analog Input 4~20mA S05-AI photo-1
Outdoor IP66 Wireless Analog Input 4~20mA S05-AI photo-2
Outdoor IP66 Wireless Analog Input 4~20mA S05-AI photo-3
Outdoor IP66 Wireless Analog Input 4~20mA S05-AI photo-4
Outdoor IP66 Wireless Analog Input 4~20mA S05-AI photo-5
Outdoor IP66 Wireless Analog Input 4~20mA S05-AI photo-6
US$ 120 - 150 MOQ: 1 Piece
Key Specifications
Get Latest Price
Size:
Small
Type:
Other, Wireless Analog Input
Model Number:
S05-AI
Payment & Shipping
Payment Methods:
Port of Shipment:
Taipei Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Size Small
Type Other, Wireless Analog Input
Model Number S05-AI
Place of Origin Taiwan, China
Brand Name NHR

Outdoor IP66 Wireless Analog Input 4~20mA S05-AI



S05-AI ZigBee IP66 Wireless Analog Input 4~20mA

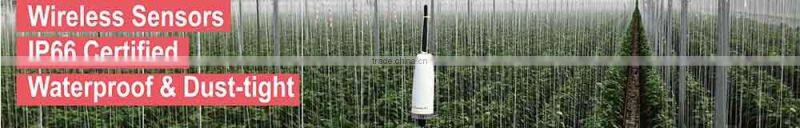

The S05-AI is a Analog Input 4~20mA transmitter designed for precision data capturing in agriculture. This wireless device is housed in an IP66 certified casing eliminating the need for wire and cable installation and giving it a high resistance to extreme weather and conditions. The S05-AI is DC 6V w/ 4 x AA battery or DC 5V adapter and has a transmission range of 500m making it suitable for installation out in the fields. This device is also compatible with ZigBee Complete Solution for constant data collection, instant awareness and automated environment control. This device can function as an ‘end device’ (sensor) in a ZigBee Tree, Star or MESH system.



Specification:
Sensing Type
Analog Input 4~20mA
Addressing
IEEE MAC 64 bit
Wireless Protocol
IEEE 802.15.4 Zigbee2007/PRO HA Profile
Network TopologyStar/Tree/Mesh
Transmission Range
500 meters / 1640 feet (Free space)
Operating Frequency
2.4GHz ISM Band
RF Output Power
18dBm
Receiver Sensitivity
-92dBm
Ingress Protection
IP66
Power SupplyDC 6V w/ 4 x AA battery or DC 5V adapter
Power Consumption
Tx:350mA/ Sleep:5uA
Battery Life1 year based on sending data per 10 mins.
Transmit Interval

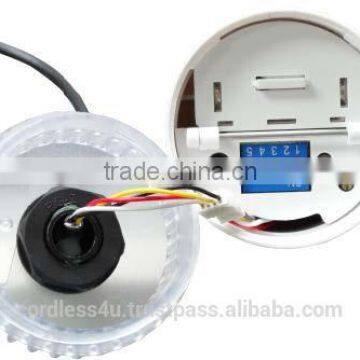

Set by DIP Switch (1sec. ~ 75min.)
Operating Environment
Temperature: -10°C~45°C/14°F~113°F
Humidity: 0~100% RH
Dimensions
13(H) X 5(Φ) cm
5.1(H) X 1.9(Φ) inches
Weight265g/ 9.34oZ
CertificationsCE/ FCC



1 Year Warranty. Original Made in Taiwan
