Wireless Smart Plug A11

Dow Technology Electronics Trading Co L.l.c
Wireless Smart Plug A11 thumbnail-1
Wireless Smart Plug A11 thumbnail-2
Wireless Smart Plug A11 thumbnail-3
Wireless Smart Plug A11 thumbnail-4
Wireless Smart Plug A11 photo-1
Wireless Smart Plug A11 photo-2
Wireless Smart Plug A11 photo-3
Wireless Smart Plug A11 photo-4
US$ 75 - 90 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
NHR
Model Number:
A11
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Taipei Taiwan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name NHR
Model Number A11
Type Plug with Socket
Grounding Standard Grounding
Rated Voltage 100-120VAC
Rated Current 12A
Application Other, Residential / General-Purpose, Smart Home

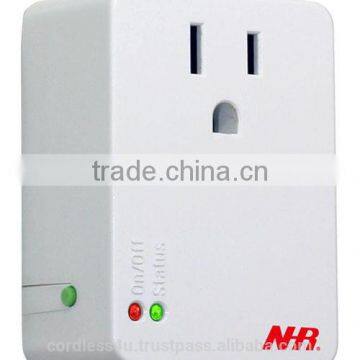

A11 ZigBee Wireless Smart Plug



Smart plug, smart outlet or smart meter plug are the next generation of devices that stand in between your wall socket and anything you want to plug into it(X-Box, coffee machine, fan, stereo, oven, lamp, server…etc and so many more).
The power of Smart Plug is that the solution gives you tangible numbers into your energy consumption on device level. That way, you can see precisely how much energy you are using, when and on what, in turn, enables you to take smart actions that provide the greatest possible energy savings, without the need for you to make any sacrifices in terms of living comfort and environment-friendly. In no time, you can prepare switching plans for your connected appliances that fit with your lifestyle.



Features:
1. Small size with pearl-white color
2. Plugs in between any appliance and the AC outlet
3. Robust wireless MESH network via ZigBee, a global wireless standard
4. Power consumption information from attached electrical devices
5. A11 expands and increases the wireless signal as a router

Specification:
Key Function
Power ON/OFF attached device from smart devices remotely
Reports power consumption, on/off status of attached devices
Bridges other wireless devices as router
Other normal plug can be plugged simultaneously because of its small size
Electrical
Operating Voltage: 100 ~ 120 Vac
Power Frequency: 50 ~ 60 Hz Max.
Load Capacity: US: 12 A/120 Vac
Power Sensor
Accuracy: +/- 5 %
Detects current draw from user AC socket
Range: 0 A to 12 A
RF Transmit Power
63 mW (18 dBm), 100 mW EIRP
RF Receiver Sensitivity
-100 dBm
RF Transmit Distance
100 meters in open space
RF Communication
Wireless IEEE 802.15.4
Supports router/ range extender function
Frequency Band: 2.4000 ~ 2.4835 GHz
Protocol: ZigBee Standard Home Automation
Buttons
Relay ON/OFF / Reset switch X 1
LED Indication
ON/OFF (Red): Solid when user AC socket is powered
Status (Green): Flashes when the plug is connected to an RF network with the plug powered on.
Red+Green at the same moment: Unit reset
Management
iPhone & iPad app; Android app
Remote access (Internet)
Email notifications
Sensor control; schedule control; manual
Environment
0°C ~ 40°C / 32 °F ~ 104 °F
0 ~ 80 %RH (non-condensing)
Indoor use only
Color
Pearl-white
Material
UL 94_V0 fire protection material
Dimensions
(L) 68 X (W) 29 X (H) 53 mm
(L) 2.68 X (W) 1.14 X (H) 2.09 inches
Weight
81.5 g / 2.9 oz
Certification
FCC, NCC, UL





1 Year Warranty. Original Made in Taiwan
