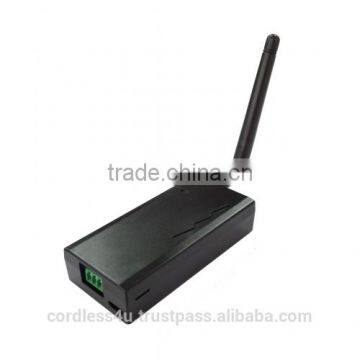

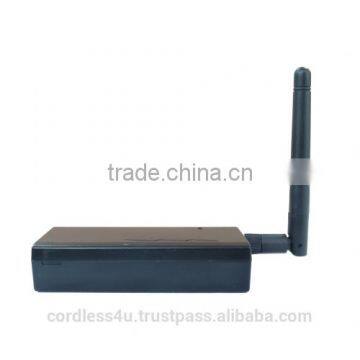

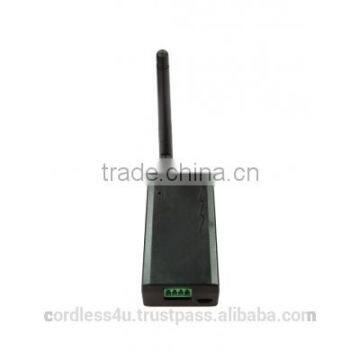

A09 ZigBee Wireless Pulse Width Modulation (PWM) Controller
A09 is a PWM controller; it controls PWM input devices, such as LED driver or motor by generating Pulse Width Modulation signal. With its features of constantly changing electric level, it save energy when the electric level in low positions. A09 works with ZigBee/Ethernet/WiFi/3G controller gateway G07, or ZigBee USB dongle WZB-01USB to implement configurable operations, such as automated control by schedule-time, scene, or manual, more importantly automatic controlled by sensors.
Features:
1.Wide range application due to its PWM Output Frequency 1KHz~20KHz

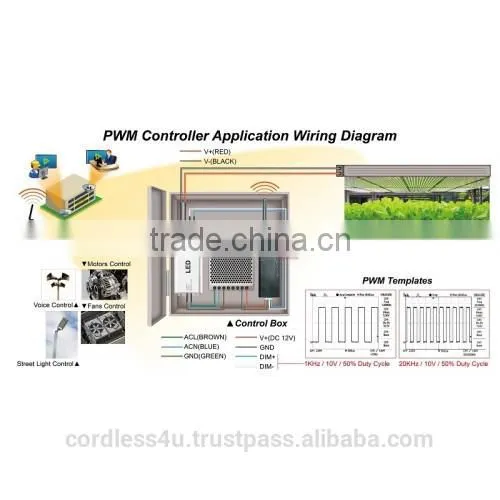

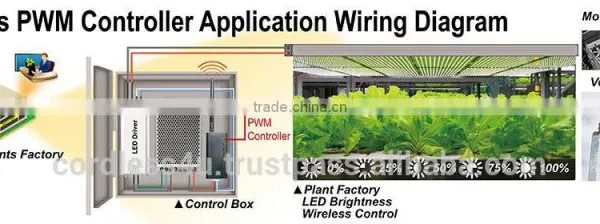

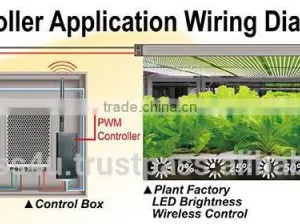

2.Wireless control for PWM input devices such as LED, street lights, motors, voices, fans, heaters, irrigation systems etc.
3.Certification meeting all required safety regulations
4.Interoperable with DataView & ZigBee coordinator for complete automation
5.PWM control for PWM input devices, it is an ideal way to save energy
6.Wireless data transmission: 500 meters
Network Protocol | Modbus RTU or ZigBee Home Automation |
Wireless Protocol | IEEE 802.15.4 Zigbee2007/PRO HA |
| Addressing | HA:IEEE MAC 64Bit / Modbus: ID |
Transmission Range | 500 meters / 1640 feet (Free Space) |
Operating Frequency | 2.4GHz ISM Band |
RF Output Power | 18dBm |
Receiver Sensitivity | -92dBm |
Network Topology | Star / Tree / Mesh |
Power Supply | DC 12V ~ 24V |
Operating Temperature | -10 °C ~ 50 °C (32°F ~ 104°F) |
Dimensions | 62mm(L) x 42mm(W) x 15mm(H) |
Weight | 50.4g / 1.78oz |
PWM Output Frequency | 300Hz ~ 20KHz |
PWM Duty Cycle | 0 ~ 100% |
PWM Output Voltage | DC 0V for low level – 10V for high level |
| Dimming Load Capacity | 1000 mA |
Certifications | CE, FCC Pending |
1 Year Warranty. Original Made in Taiwan
