STH-01ZBE ZigBee Wireless Temperature and Humidity Data Logger Sensor

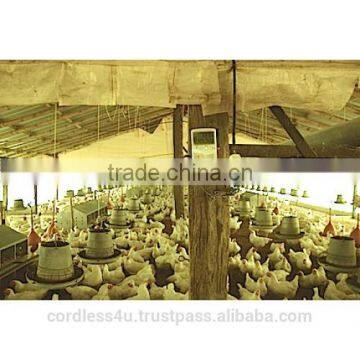

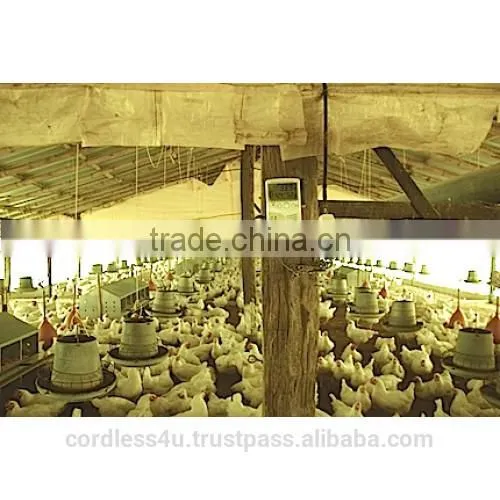

The STH-01ZBE measures the air temperature and the relative humidity in the location and logs the data in its internal memory which is capable of storing 10,000 readings. This device can transmit data wirelessly through a router and/or Gateway receiver where it can be viewed on a PC, tablet or mobile phone. The User can monitor and analyze the data in our QuickView Software in real time. The STH-01ZBE ZigBee Wireless Temperature and Humidity Data Logger reduces overheads, R&D costs and development schedules thus guaranteeing a rapid return on investment. This data logger is suitable for homes, office buildings, schools, libraries, warehouses, museums, greenhouses etc.
ZigBee HA profile compliant, RS profile ready
Range 500m (line of sight)
5V DC powered via micro-USB adapter or DC12-24V
Backup Battery
Out-of-limits temp. & humidity alert
- Data transfer via wireless ZigBee, compliant with IIEEE 802.15.4
- Modbus RTU protocol.
- Supports PC software Simply Data for real-time & one-time data export
- Two recording modes: Looping (overwrite), One-time.
- Beeping Alarm, flashing Alarm LED, and LCD alert icon for Out-of-limits conditions
Sensor type | Temperature and relative humidity |
| Measurement accuracy | +0.5°C (at 25°C), +4.5%RH (20%RH – 80%RH) |
| Transmitting protocol | Modbus RTU./ HA profile |
| COM port data rate | 9600,8,N,1 |
| ZigBee transmitting format | IEEE 802.15.4 compatible |
| RF power transmission Range | 1mw, 0 dBm, 100Meters (line of sight) (with Nietzsche ZigBee module range depend) range depend on actual environment |
| Network topology | Star-Tree-Mesh |
| Receiver sensitivity | -92 dBm |
| Addressing option | Dip/SW or IEEE 64 bit |
| Supply voltage input | DC5V adaptor, support DC 12-24V (optional) |
| Power consumption | 150mw |
| Dimensions | L85mm X W47mm X H10mm |
| Accessories included | User manual, QuickView data V.1.0 software |
1 Year Warranty. Original Made in Taiwan
