Product Details
Size | Small | Type | Other, Wireless CO2 Sensor | |
Model Number | S05-CO2 | Place of Origin | Taiwan, China | |
Brand Name | NHR |
Product Description

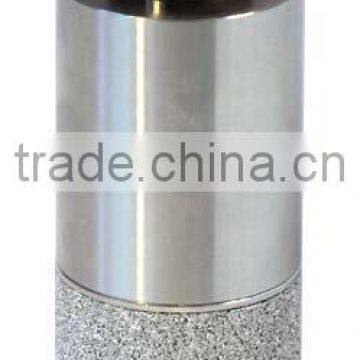

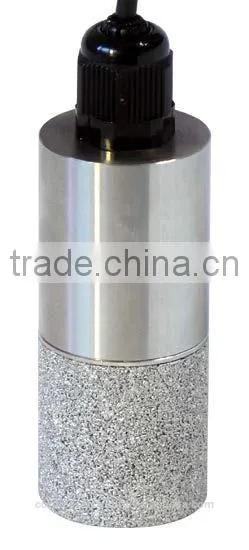

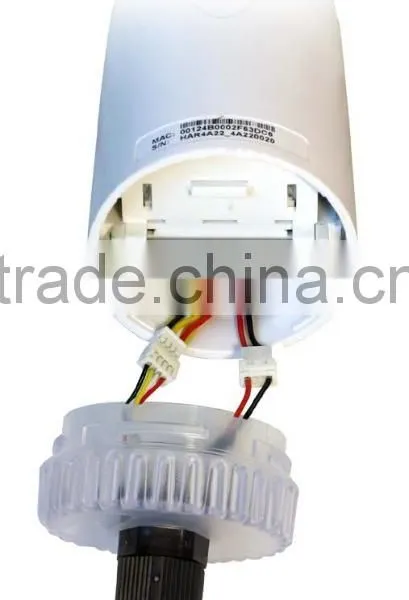

S05-CO2 Outdoor IP66 Wireless CO2 Sensor
CO2 sensor are used in the field for monitoring of environmental parameters to help producers to conduct more efficient irrigation or pest control programs, during storage for post harvest grading and sorting for fruits and vegetables. With CO2 demand controlled ventilations, S05-CO2 helps to save money by decreasing the energy consumption while maintaining a healthier indoor air quality. With high tolerance to humidity, the sensor is ideal for applications in greenhouses, mushroom farming and other high relative humidity regions. The S05-CO2 is a wireless sensor in the growing SentrolCloud family. This sensor can measure CO2 concentration and send it over wireless. Its ZigBee Home Automation Profile provides compatibility with other wireless devices with ZHA profile. With SentrolCloud platform, the sensor can simply upload data and all the data will be stored and presented in trend that makes data monitoring and mining easy.
1. Self-calibrating infrared (NDIR) technology enables high repeatability and stability over long measurement period.
2. Stainless CO2 sensor enclosure designed specially for high humidity environment.
3. Self-healing mesh network for robust wireless sensing network deployment.
4. Up to 80% installation and commissioning cost savings over traditional cable-based solutions.
5. Compatible with SentrolCloud for real-time data monitoring and automated control
Sensing Operating Principle | Non-dispersive infrared (NDIR) |
Sensing Gas | Carbon dioxide (CO2) |
Sensing Range CO2 | 0 – 10,000 ppm CO2 |
Sensing Accuracy | ±70 ppm CO2 ±3% of reading |
Pressure Dependence | + 1.6 % reading per hPa |
Sensor Cable Length | 2 meters |
Sensor Probe Dimension | 8.4(H) X 2.9(Φ) cm; 3.3(H) X 1.1(Φ) inches |
Sensor Enclosure | Steel sintered filter (Water splashing prohibited) |
Operation Temperature Range | 0 to +50 °C (32F to +122F) |
Operation Humidity Range | 0 to 95% rH (Water splashing prohibited; senor should be always powered on) |
Wireless Transmission Range | 500 meters / 1640 feet (Free space) |
Operating Frequency | 2.4GHz ISM Band |
Output Power | 18 dBm |
Receiver Sensitivity | -92 dBm |
Transmitter Dimension | 13(H) X 5(Φ) cm ; 5.1(H) X 1.9(Φ) inches |
Ingress Protection | IP66 grade – SGS Lab. certified |
Power Supply | 90 - 240VAC/ 50-60 Hz |
Certifications | CE/FCC/SGS IP66 testing report |
1 Year Warranty. Original Made in Taiwan
