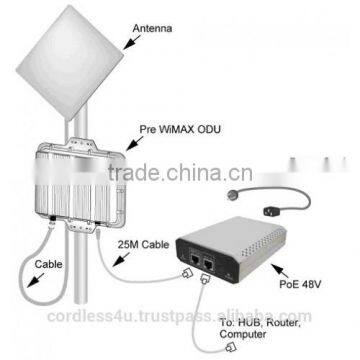

ALINK-5X FDD Long Range Full-Duplex Backhaul Bridge. Range up to 40km Over 60Mbps photo-2

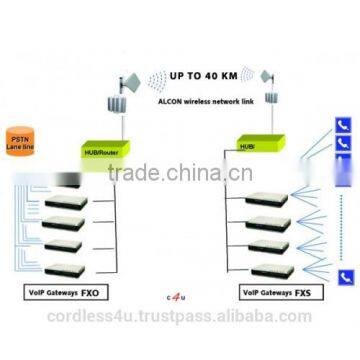

ALINK-5X FDD Long Range Full-Duplex Backhaul Bridge. Range up to 40km Over 60Mbps photo-3
ALINK-5X FDD Long Range Full-Duplex Backhaul Bridge. Range up to 40km Over 60Mbps photo-4
ALINK-5X FDD Long Range Full-Duplex Backhaul Bridge. Range up to 40km Over 60Mbps photo-5
ALINK-5X FDD Long Range Full-Duplex Backhaul Bridge. Range up to 40km Over 60Mbps photo-6
US$ 1,220 - 1,350 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
ALCON
Model Number:
ALINK-5X FDD
Contact Supplier Request Quote Chat Now
Dow Technology Electronics Trading Co L.l.c
Payment & Shipping
Payment Methods:
Port of Shipment:
Taipei Taiwan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name ALCON
Model Number ALINK-5X FDD

 ALINK-5X FDD Point to point Full-Duplex Backhaul wireless bridge. Range up to 40km with speed data over 60Mbps

As broadband wireless connectivity solution is in production since 2009 and the product line are adopting Wireless FDD concept to provide an affordable and reliable rural connectivity platform. Alcon Alink are high performance outdoor deployable wireless bridge that provides wireless connectivity between multiple network locations, with the high throughput and long distance transmission, it is the appropriate backhaul solution for Network Carriers, Internet Service Providers, System Integrators and Enterprises.Professional device for stable connections and heavy duty operation. Working in extreme climates conditions such as -30 ~ +70°C. Ideal for Point to point applications in range up to 40km. Data speed by our testing on 32km is 74Mbps, on 40km is 60Mbps.



Here below are our test report:

Distance IP # Bandwidth Antenna Modulation RSSI Throughput
< 1km 12Tx
+
12Rx		 40MHz 23 64QAM 3/4 N/A 96Mbps
3km 8Tx
+
8Rx		 40MHz 23 64QAM 3/4 N/A 74.56~76.63Mbps
4.6km 8Tx
+
8Rx		 40MHz 23 64QAM 3/4 N/A 52.76~100.23Mbps
7km 4Tx
+
4Rx		 40MHz 23 16QAM 3/4 -68dBm
-65dBm		 58.67~60.09Mbps
32km 8Tx
+
8Rx		 20MHz 30 16QAM 3/4 -71dBm
-71dBm		 47.2Mbps
32km 8Tx
+
8Rx		 40MHz 30 16QAM 3/4 -71dBm
-73dBm		 74.43Mbps



Features:
Rural Connectivity Platform
Up to 40Mbps over 50Km connection
Up to 60-80Mbps over 30km connection
Easy Installation and Configuration
IP68 rated enclosure for dust and water protection
Wireless FDD Technology
Best choice for multiple IP camera transmissions under PtP mode



Specification:

Standards Compliance

 IEEE 802.11 silicon to non-standard; IEEE 802.3; IEEE 802.3u; IEEE802.3af(option)

SDRAM

 64 M Byte

Flash

 16 M Byte

Radio Frequency Type

Proprietary 5GHz based on 802.11a OFDM, Dual Radio architecture for dedicated transmit and receive paths

Modulation

 64QAM 3/4, 64QAM 2/3, 16QAM 3/4, 16QAM 1/2, QPSK 3/4, QPSK 1/2, BPSK 3/4, BPSK 1/2

Frequency Band

 4920~6060MHz by customer requirement
Transmission Power 16~25 dBm ( Adjustable output power )
Data Rate Up to 40Mbps over 50Km connection

Access Point Interfaces

Auto sensing MDI/MDI-X Ethernet 10/100Base-TX: RJ-45

Sensitivity

-92dBm @ 6Mbps; -72dBm @ 54Mbps, PER < 10%

Antenna Type

N-type external high gain antenna (optional)

Wireless Setting

Operation Mode –Wireless PtP Bridge
Channel Bandwidth adjustable 20/40 MHz
Adjustable transmit power

Software/Firmware

DFS
Spanning Tree settings
Reset to default by WebUI
Web-based configuration via popular browser (MS IE, Netscape…)
Firmware upgrade and configuration Backup/Restore via Web
802.1Q VLAN pass-through
Signal strength LED indicator (5 LEDs)
SysLog
Remote Log Server
SNMP v1/v2c
MIB support: MIB I, MIB II (RFC-1213) and Private MIB
Support Time settings
Hardware Watch dog

Operating Environment

 Operating Temperature: -30 ~ +70°C

Power

DC 48 Volt ± 5%; 1A (Max.)AC adapter AC 100V ~ 240V

Network Management
System OS Support

 Windows 2000/ XP/ Vista/ Window 7

Warranty

 One year limited





1 Year Warranty. Original made in Taiwan.
