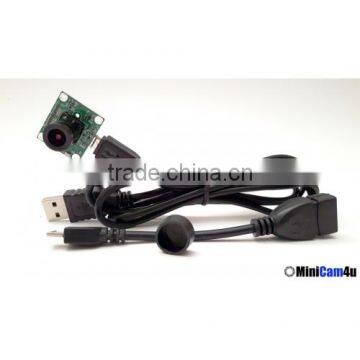

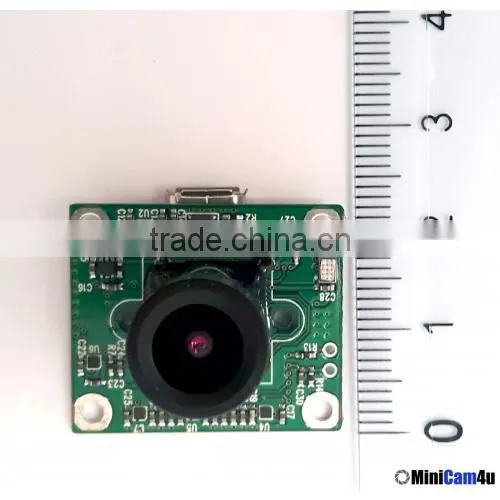

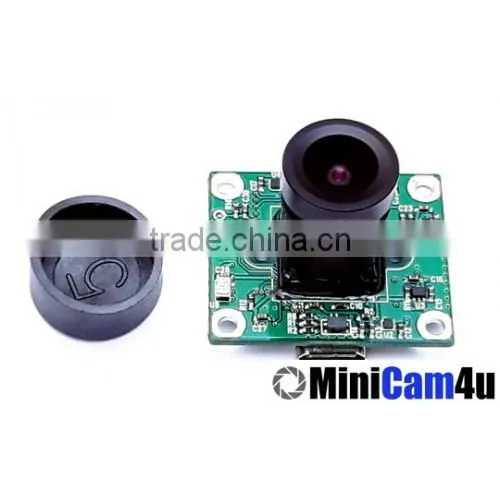

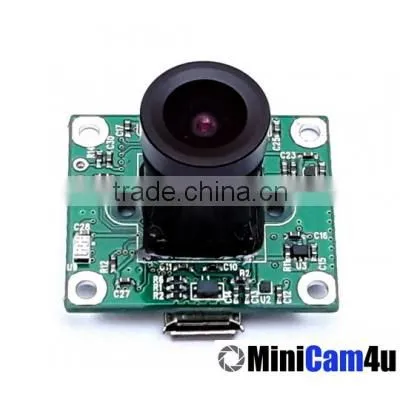

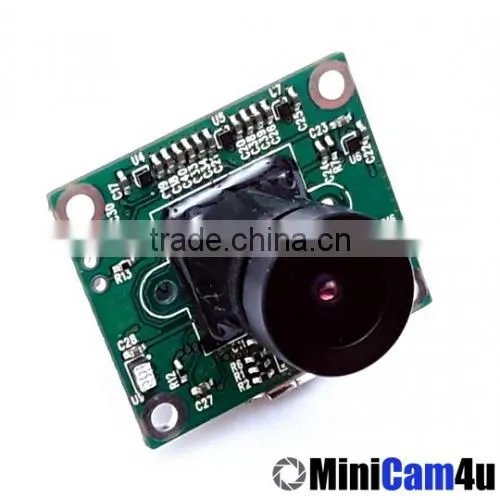

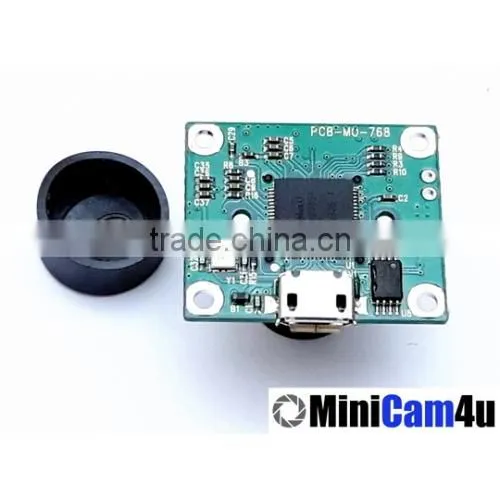

CM-1X26U 5MP FHD Micro USB 2.0 QSXGA CMOS Camera Module Wide Angle

Dow Technology Electronics Trading Co L.l.c
CM-1X26U 5MP FHD Micro USB 2.0 QSXGA CMOS Camera Module Wide Angle thumbnail-1
CM-1X26U 5MP FHD Micro USB 2.0 QSXGA CMOS Camera Module Wide Angle thumbnail-2
CM-1X26U 5MP FHD Micro USB 2.0 QSXGA CMOS Camera Module Wide Angle thumbnail-3
CM-1X26U 5MP FHD Micro USB 2.0 QSXGA CMOS Camera Module Wide Angle thumbnail-4
CM-1X26U 5MP FHD Micro USB 2.0 QSXGA CMOS Camera Module Wide Angle thumbnail-5
CM-1X26U 5MP FHD Micro USB 2.0 QSXGA CMOS Camera Module Wide Angle thumbnail-6
CM-1X26U 5MP FHD Micro USB 2.0 QSXGA CMOS Camera Module Wide Angle photo-1
CM-1X26U 5MP FHD Micro USB 2.0 QSXGA CMOS Camera Module Wide Angle photo-2
CM-1X26U 5MP FHD Micro USB 2.0 QSXGA CMOS Camera Module Wide Angle photo-3
CM-1X26U 5MP FHD Micro USB 2.0 QSXGA CMOS Camera Module Wide Angle photo-4
CM-1X26U 5MP FHD Micro USB 2.0 QSXGA CMOS Camera Module Wide Angle photo-5
CM-1X26U 5MP FHD Micro USB 2.0 QSXGA CMOS Camera Module Wide Angle photo-6
US$ 90 - 110 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
OEM
Model Number:
CM-1X26U
Color:
Black
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Taipei Taiwan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name OEM
Model Number CM-1X26U
Color Black
Place of Origin Taiwan, China

CM-1X26U 5MP FHD Micro USB 2.0 QSXGA CMOS Camera module wide angle



Feature
5.0 MegaPixel USB QSXGA
High Sensitivity!
High Performance.
Full HD image pixel



Specification:1/4" Color QSXGA 5MP Camera module
Image Area: QSXGA 2592 x 1944, 1.4um
Frame Rate:
Full 5.0M 2592 x 1944 /15 fps
FHD 1920 x 1080 /30 fps
HD 1280 x 720 /60 fps
VGA 640 x 480 /60 fps
pixel size: 1.4um x 1.4um
Output Format: Raw YUV MJPG Data
Lens:3.0mm/F2.0(M10xP0.5)      35mm ekvivalent FOV = 32mm
Image sensor: 1/4" CCIQ III digital QSXGA CMOS camera module
View angle: H= 62° 19'; V= 48° 48'; D= 74° 14
Scan mode: progressive
Sensitivity: 5100 e-/lux.sec
Dynamic range: 63 dB
White balance AUTO
Gain control AUTO
Exposure AUTO
Connector: Micro USB 2.0
Input: DC 5V (USB)/ 170mA(working)
Power current 1:170mA; Isb:50mA
Dimension(mm): 22 x 26 x 25.6
Cable length(cm): 200(accessory)



 - Driver free Mac OS; Windows XP, Windows 7, Windows 8,(When using Win7, need to install MJPG decoders),after UVC convey to computer, file can compress in MJPEG



- Works on Andorid phones only with OnTheGo option, comes with OTG USB cable, but do not supporting Skype or Viber



Tested Android Free Apps :
/store/apps/details?id=com.vaultmicro.camerafi



/store/apps/details?id=



/store/apps/details?id=com.serenegiant.usbwebcamera



/store/apps/details?id=com.serenegiant.uvcstreamer




1 Year Warranty – Original made in Taiwan.

Neutral packing, ODM OEM Manufacturer and exporter :



R&R GROUP INTERNATIONAL

Taipei Taiwan, Hong Kong, Dubai UAE
