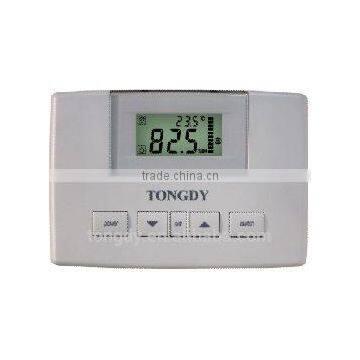

Temperature Humidity Sensors Features
Detect and display ambiance relative humidity& temperature
A high accuracy RH & Temp. sensor inside
LCD can display working status such as %RH, temperature, set point, and device mode, etc. Makes reading and operating easy and accurate
Provide one or two dry contact outputs to control a
Humidifier/dehumidifier and a cooling/heating device
All models feature user-friendly setting buttons
Enough parameters setup for end users for more
applications. All setup will be held even if power failure
Button-lock function avoids wrong operation and keep on the setup
Infrared Remote Control (optional)
Blue backlight (optional)
Modbus RS485 interface (optional)
controller with an external RH&Temp. sensor or external RH&Temp. sensor box
Other wall mounting and duct mounting humidity controllers, please see our high accuracy hygrostat THP/TH9-Hygro series and THP –Hygro16 Plug-and-Play high-power humidity controller.
Models
Product Name |
Model |
Description |
|
Humidity Controller Power supply: -(A)/(B)/(C) A: 230VAC B: 110VAC C: 24 VAC |
F2000P-TH-K01-a-(A)/(B)/(C) |
Detect and display RH&Temp. 1XON/OFF relay output to control a humidifier or dehumidifier. The max. current is 5A. |
F2000P-TH-K02-a-(A)/(B)/(C) |
Detect and display RH&Temp. 2 ON/OFF relay outputs to control a humidifier/ dehumidifier and a cooling/heating device. The max. current is 5A. |
|
F2000P-TH-K01-WT-(A)/(B)/(C) |
Detect and display RH&Temp. with the external sensor. 1XON/OFF relay output to control a humidifier or dehumidifier. |
|
F2000P-TH-K02-WT-(A)/(B)/(C) |
Detect and display RH&Temp. with the external sensor. 2 ON/OFF relay outputs to control a humidifier/ dehumidifier and a cooling/heating device. |
|
F2000P-TH-K01-TSM-(A)/(B)/(C) |
Detect and display RH&Temp. with an external sensor box. 1XON/OFF relay output to control a humidifier or dehumidifier. |
|
F2000P-TH-K02-TSM-(A)/(B)/(C) |
Detect and display RH&Temp. with an external sensor box. 2X ON/OFF relay outputs to control a humidifier/ dehumidifier and a cooling/heating device. |
|
|
Humidity Controller With Modbus |
F2000PC-TH-K01-(A)/(B)/(C) |
Detect and display RH&Temp. 1XON/OFF relay output to control a humidifier or dehumidifier. Modbus interface |
F2000PC-TH-K02-(A)/(B)/(C) |
Detect and display RH&Temp. 2 ON/OFF relay outputs to control a humidifier/ dehumidifier and a cooling/heating device. Modbus interface. |
|
Options for Above Models | ||
Options |
Back light-EL |
Blue back light displaying |
Remote receiving-R |
Remote control humidity with the infrared hand held controller |
|
¨Specifications
|
Power supply |
230VAC/110VAC/24VAC selectable in the order |
|||
|
Output |
One or two Max. 5A relay/each for the On/Off output |
|||
|
Displaying |
LCD |
|||
|
External sensor connection |
Typical 2m, 4m/6m/8m selectable |
|||
|
Net weight |
280g |
|||
|
Dimensions |
120mm(L)×90mm(W)×32mm(H) |
|||
|
Mounting standard |
Wall mounting in the wire box of 2”×4” or 65mm×65mm |
|||
Sensor spec. |
Temperature |
Humidity |
|
||
Accuracy |
±0.5℃ (20℃~40℃) |
±4.0% RH (20%-80%RH), 25℃ |
|
||
Measuring range |
0℃~60℃ |
0~100%RH |
|
||
Display resolution |
0.1℃ |
0.1%RH |
|
||
Stability |
<0.04℃/year |
<0.5%RH/year |
|
||
Storage environment |
10℃-50℃, 10%~70%RH |
|
|||
