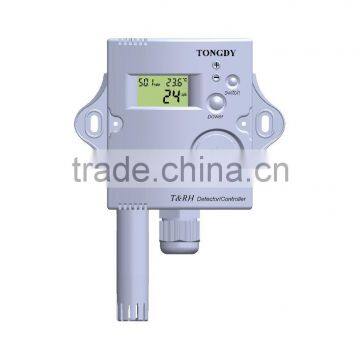

Wholesale Humidistat for Mushroom
Professional and high-precision controller for ventilating & dehumidifying
Using the absolute humidity measuring & control method
Special design for room ventilating& dehumidifying in humid areas
Automatic ventilation control to prevent occurrence of mildew
ApplicationThe holiday rooms in humid areas
The vacant houses
The Indoor places need to be often ventilated
Room dehumidifying purpose
Other ventilation and dehumidification control
Features
uWith both indoor and outdoor temperature and humidity sensors, it’s designed for indoor temperature
and humidity detection and control especially for the humid rooms.
Real time measure outdoor and indoor environment temperature and relative humidity, as well as
absolute humidity
Power supply: 230VAC
Two on/off outputs control
Optional Modbus RS485 interface
With the ingenuous and strong structure, for easy installation and convenient operation
LCD Display
At normal work it displays the indoor
temperature and RH measurements,
does not display the outdoor measurements.
Specifications
Common Parameter | |
Power supply |
220/240VAC |
Output and Controlled power |
2x 5Amp dry contact outputs |
Power Consumption |
2.0W |
Work Condition |
-20℃~50℃/ 0~99%RH, non-condensation |
Storage Condition |
0℃~60℃/ 10~60%RH |
Dimension |
165.00mm(L)*123.50mm(W)*50.00mm(H) |
Net Weight |
295g |
Housing |
PC/ABS fireproof material() |
IP Protection class |
IP40 |
Approval |
CE-Approval |
Indoor temperature and humidity sensor (Detect indoor temperature and RH) | |
Temperature and RH Sensor |
Built-in temperature and humidity sensor |
Sensing element |
Integrated digital T&RH sensor |
Temperature Measuring range |
-20℃~60℃ |
RH Measuring Range |
0~100%RH |
Absolute RH Measuring Range |
0~128.45 g/m3 |
Accuracy |
Temperature.:<±0.5℃@25℃, Humidity:<±3.0%RH (20%~80%RH) |
Stability |
Temperature drift:<0.04℃(per year), Humidity drift:<0.5%RH(per year) |
Outdoor temperature and humidity sensor box (Detect outdoor temperature and humidity) | |
Sensing element |
Integrated digital T&RH sensor |
Temperature Measuring range |
-40℃~60℃ |
RH Measuring Range |
0~100%RH |
Absolute RH Measuring Range |
0~128.45 g/m3 |
Accuracy |
Temp:<±0.5℃@25C RH:<±3.0%RH (20%~80%RH) |
Stability |
Temp:<0.04℃(per year) RH:<0.5%RH(per year) |
Dimension |
100mm(L)×80mm(W)×28mm (H) |
Housing |
PC/ABS Material |
Net |
80g |
IP Protection Class |
IP30 |
Approval |
CE-Approval |
Connecting distance |
<10 meter |
