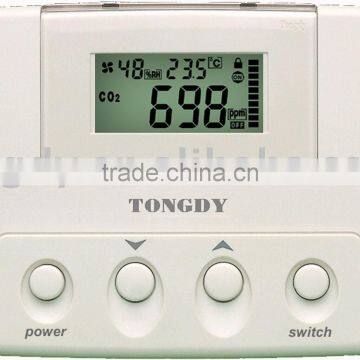

NDIR CO2 Monitor / Controller

Gas detected

Carbon Dioxide (CO₂)

Sensing element

Non-Dispersive Infrared Detector (NDIR)

Temperature sensor

NTC

Humidity sensor

HS series capacitive sensor

Temperature dependence

0.2% FS/

Temperature correction

Self compensation

Power supply

220VAC, 110VAC or 24VAC, 50/60HZ±10%, selectable with the order

Consumption

3.5 W max. ; 2.5 W avg.

Accuracy@25(77)

±40ppm + 3% of reading

Stability

<2% of FS over life of sensor (15 yr typical)

Calibration interval

ABC Logic Self Calibration Algorithm

Non linearity

<1% of FS

Pressure dependence

0.13% of reading per mm Hg

Altitude calibration

Programmable from 0-9,900m in 100m increments

Response Time

<2 minutes for 90% step change

Signal update

Every 2 seconds

Warm up time

24 hours (first time)

5 minutes (operation)

CO₂ measuring range

02,000ppm (default)

020,000ppm, programmable selection

050,000ppmt

CO₂ setting & Display resolution

1ppm

Temperature measuring/ setting range

050(32122)/  545(41113)

Humidity measuring/setting range

099%RH/ 595%RH

Analog output

010VDC linearized output or PID control output, selectable by end users

Output resolution

10Bit

Relay output

One or two dry contact outputs with programmable selection to control CO₂, temperature, humidity

Rated switching current: 3A(220VAC/30VDC), resistance load

Communication interface

RS-485, 9600/14400/19200(default)/28800 or 38400bps (programmable selection), 15KV antistatic protection, 3 independent base address, max network node 64

Flow rates

Diffusion version 80 ~ 120 cc/min

Flow through version 40~50cc/min

Operation conditions

0~50(32~122); 0~95%RH, non condensing

Storage conditions

-40~70(-40~158)

NDIR life

15 years

Weight

360g

Dimensions

130mm×90mm×40mm

Installment standard

65mm×65mm or 2×4wire box

Interface connections

Maxi. 9 terminals

Wiring standard

wire section area<1.5mm²

Approval Standard

CE-Approval

Programming and selection

Via internal jumpers and push-buttons on the panel
