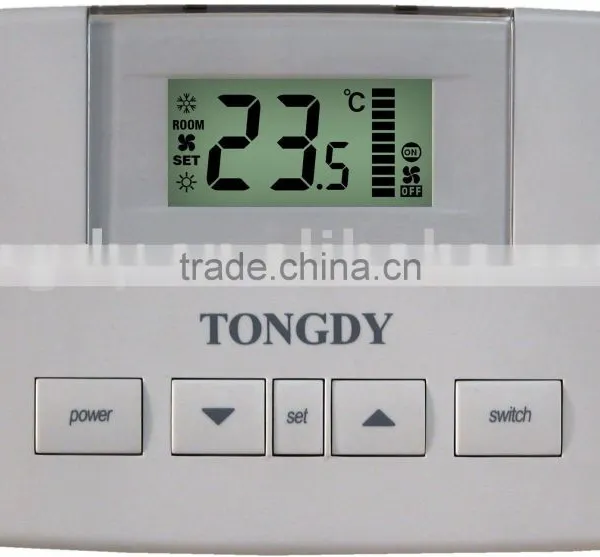

Help CenterFCU Thermostat for Modulating Valve Control
Related Products
-
Programmable FCU ThermostatNegotiableMOQ: 20 Pieces -
Non-Programmable Thermostat for FCU SystemNegotiableMOQ: 10 Pieces
-
Digital FCU ThermostatNegotiableMOQ: 10 Units
-
Proportion-Action Control Thermostat for FCUNegotiableMOQ: 100 Units
-
Proportion-Action Control Temperature Controller for FCUNegotiableMOQ: 100 Units
Power supply |
220VAC±10% , 110VAC±10% , 24 VAC±20% selectable in order |
Rate contact current for the fan and aux. heater |
1 amp 5 amp for F2000PS-A-5A |
Analog output |
0~10VDC |
Sensor |
NTC 5K |
Temperature Control Range |
5-35°C |
Accuracy |
±0.5°C @25 |
Display |
LCD |
Weight |
300g |
Dimensions |
130mm(L)×90mm(W)×32mm(H) |
Mounting Standard |
Mounting on the wall, 2×4 or 65mm×65mm box |
1.PI(proportional and integral) control action provides accurate, stable room temperature control
2.LCD can display working status such as room temperature, set point, etc. Makes reading and operating easy and accurate.
3.All models feature user-friendly setting buttons
4.Multi-function control for different systems with 1X 0~10VDC output and 3-speed fan or single speed fan control.
5.Provide one stage or two stages electric aux.heater control.
6.Low temperature protection
7.Celsius or Fahrenheit degree selectable
8.Two-part structure and quick wiring terminal block make mounting easier.
9.RS485 communication option makes the thermostat connecting with a PC or other systems.
10.External temperature sensor optional
11.Blue backlight display optional
12.Infrared remote control (optional)
