Specifications
1. Real time detect CO2, temperature and humidity.2. Day/Night mode control to CO2 generator
3.Modbus RS485 optional
Gas detected | Carbon Dioxide (CO2) |
Sensing element | Non-Dispersive Infrared Detector (NDIR) with more than 10 years lifetime |
Temperature sensor | NTC |
Humidity sensor | HS series capacitive sensor |
Temperature dependence | 0.2% FS/°C |
Temperature correction | Self compensation |
Power supply | 100VAC~240VAC or 24VAC, 50/60HZ±10%, selectable in order |
Consumption | 3.5 W max. ; 2.5 W avg. |
Accuracy@25°C(77°F) | ±40ppm + 3% of reading (0~5,000ppm) ±75ppm or 10% reading whichever is greater (0~20,000ppm) |
Stability | <2% of FS over life of sensor (15 yr typical) |
Calibration interval | ABC Logic Self Calibration Algorithm |
Non linearity | <1% of FS |
Pressure dependence | 0.13% of reading per mm Hg |
Altitude calibration | Programmable from 0-9,900m in 100m increments |
Response Time | <2 minutes for 90% step change |
Signal update | Every 2 seconds |
Warm up time | 24 hours (first time) 10 minutes (operation) |
CO2 measuring range | 0~5,000ppm 0~20,000ppm (optional) |
CO2 setting & Display resolution | 1ppm |
Temperature measuring range | -20~60°C(-4~140°F) |
Temperature setting range | 5~45°C(41~113°F) |
Humidity measuring range | 0~99%RH |
Humidity setting range | 5~95%RH |
Output resolution | 10Bit |
Relay output | Three ways dry contact outputs with programmable selection to control CO2,temperature,humidity Rated switching current: 2A(220VAC/30VDC), resistance load |
Communication interface | RS-485, 9600/14400/19200(default)/28800 or 38400bps (programmable selection), 15KV antistatic protection, 3 independent base address, max network node 64. |
Flow rates | 80 ~ 120 cc/min |
Operation conditions | 0~50°C(32~122°F); 0~95%RH, non condensing |
Storage conditions | 0~50°C(32~122°F); 0~90%RH |
Weight | 360g |
Dimensions | 130mm×90mm×40mm |
Installment standard | 65mm×65mm or 2”×4”wire box |
Wiring standard | Wire section area<1.5mm2 |
Approval Standard | CE-Approval |

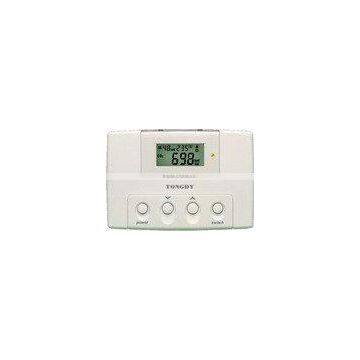

1 Especially designed for agriculture equipments such as greenhouses, food and vegetable storages. Real-time detecting CO2 level, temperature and humidity with the local programmable control.
2 Wall mounting, LCD display
3 Carbon dioxide sensor, temperature sensor and humidity sensor are internal. The three values can be apart set.
4 Non-Dispersive Infrared Detector (NDIR) CO2 sensor, 15 years lifetime, CO2 setting range is selectable: 0~2000ppm / 0~20000ppm / 0~50000ppm
5 Special ABC Logic with patented Self Calibration Algorithm makes the CO2 sensor used up to 15 years
6 Temperature setting range: 5~45C
Humidity setting range: 5~95%RH
7 Provid three relays outputs to control a CO2 generator, a temperature device and a humidity devise or a ventilator.
8 Special photosensitive sensor detection can make the working mode of the CO2 generator changeover automatically in day and night.
9 Provide brightness adjustment range to make day/night limit setting by end users.
10 RS-485 communication interface with 15KV antistatic protection makes the controller being connected with PC (option)
11 Multiple functions, high performance, low price, make it praiseworthily.
