2015 the Newest Non-locating Water Leak Detection

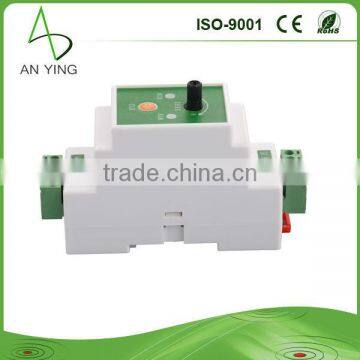

Water Leak Detector with Alarm
RS - 485 Output, Enable Software Management
- Practical and reliable twisted-pair serial RS - 485 communication, the unit can control sense cables up to 1200 meters, general industrial standard MODBUS protocol
- 12V DC power
- Cable sensitivity is adjustable
- A variety of communication baud rate could be chosen, address and communication baud rate is set by software, so that you don’t need swicher.
- It’s able to set the relay NO-COM /NF-COM at the same time, it’s depended on your need.
- Good anti-static & anti-surge ability, making the working system safer and reliable.
- Convenient installation of 35mm DIN guide rail
- External dimension:55*115*36mm
A complete set
↓↓↓↓↓↓↓↓
Technical Parameter
General features | Sensor Cable compatibility | A-LC1Bnone-locating leak sensing cablesor similarcables |
Maximum length | 500 meters | |
Accuracy | 100% | |
Environmental rating | Storage temperature | -40 oC~60 oC(0 oF~140oF) |
Operating temperature | -20oC~50 oC(32 oF~122oF) | |
Operating Humidity | 5%~95%(non-condensing) | |
Serial interface | Network configuration | Two-wire network of RS-485; Baud rates is optional: factory default9600; Address isoptional: 0~255, factory default0 |
Communication protocol
| MODBUS RTU | |
Relay contact | NO-COM /NF-COM, free to choose | Leakage alarm/cable break alarm/power supply alarm |
Power Supply | 12VDC, 3W |
Introductions of Interface
"Quality is Our Culture!"
Click the picture or the title to know more details.
| | |
| Anying Location Water Leak Detector A-LLM1 Localizable detector Relay & RS485 Output with built-in alarm Enable Software Management | Anying Water Leak Detector A-LC6A
Aluminium Oxide Made Cover Unique & Durable Design Sensitivity is controllable Relay & RS485 Output with built-in alarm Enable Software Management | Anying 2-pin Water Leak Detection Cable A-LC1B Compatiable with none-location detector Great quality with long life Length & Color could be customized Better price than other manufacturer |
| | |
| Anying 4-zone Water Leak Detector A-LC6A Monitoring 4 different places Aluminium Oxide Made Cover Unique & Durable Design Relay & RS485 Output with built-in alarm Enable Software Management | Anying 4-pin Water Leak Detection Cable A-LL1000 Compatiable with location detector Great quality with long life Length & Color could be customized Better price than other manufacturer
| Anying 4-zone Anti-acid/alkali Water Leak Detector A-LC6A Compatiable with location detector Great anti-acid/alkali ability Length could be customized
|
The OEM service is offered if needed.
