China Supplier 4 Pins Water Leak Sensor Cable With Strong Abrasion Resistance, Liquid Leak Sensing Cable for Detecting Leakage

China Supplier 4 Pins Water Leak Sensor Cable With Strong Abrasion Resistance, Liquid Leak Sensing Cable for Detecting Leakage photo-1
China Supplier 4 Pins Water Leak Sensor Cable With Strong Abrasion Resistance, Liquid Leak Sensing Cable for Detecting Leakage photo-2
China Supplier 4 Pins Water Leak Sensor Cable With Strong Abrasion Resistance, Liquid Leak Sensing Cable for Detecting Leakage photo-3
China Supplier 4 Pins Water Leak Sensor Cable With Strong Abrasion Resistance, Liquid Leak Sensing Cable for Detecting Leakage photo-4
China Supplier 4 Pins Water Leak Sensor Cable With Strong Abrasion Resistance, Liquid Leak Sensing Cable for Detecting Leakage photo-5
China Supplier 4 Pins Water Leak Sensor Cable With Strong Abrasion Resistance, Liquid Leak Sensing Cable for Detecting Leakage photo-6
US$ 10 - 15 MOQ: 5 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
AY water leak detection cable
Model Number:
A-LLW1000
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name AY water leak detection cable
Model Number A-LLW1000
Usage Other, water leak detection cable

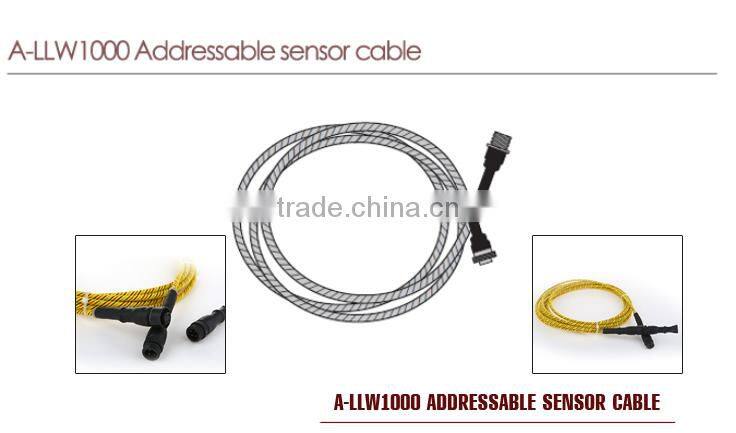

4 pins water sensing cable for location water leak detector, water sensor Cable, water leak detection cable with alarm.

Product Description
China supplier 4 pins water leak sensor cable with strong abrasion resistance, liquid leak sensing cable for detecting leakage

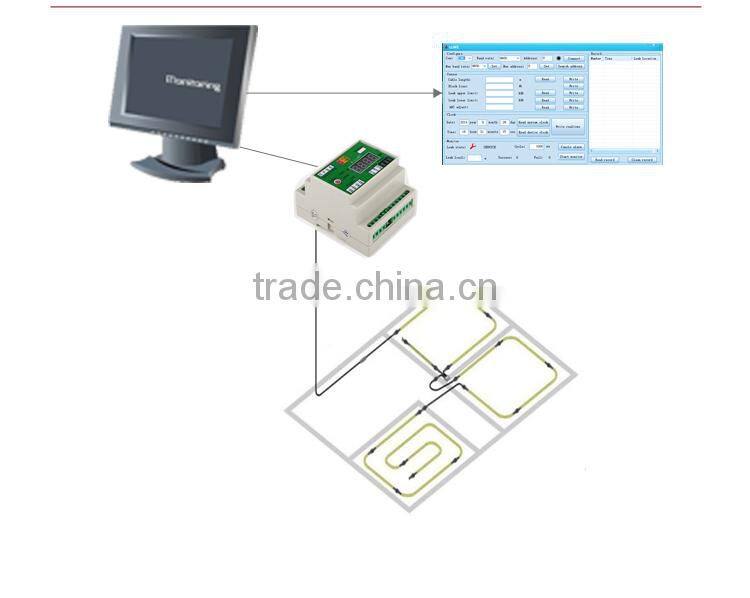

Using single or Multiple water sensing cable can expand the capabilities of water leak detection.

The length of the A-LLW1000 can be custom-made to any length within 400m.

   Color and internal structure are also customizable ( Customize MOQ 500m) .

China supplier 4 pins water leak sensor cable with strong abrasion resistance, liquid leak sensing cable for detecting leakage





Product Features

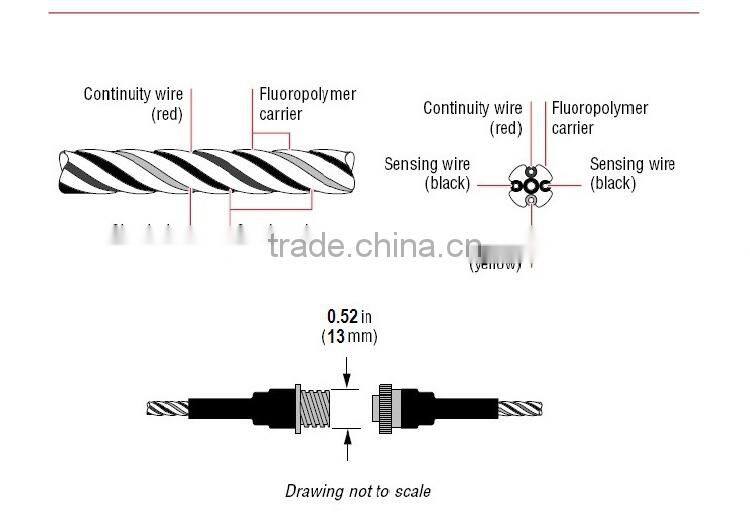

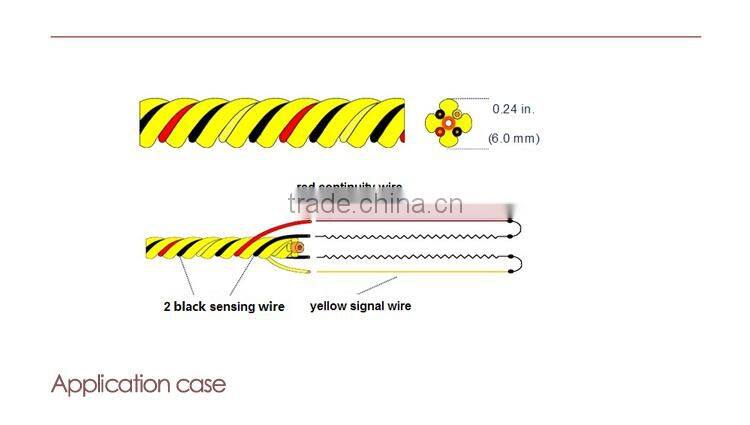

Product Features0.24 in(6.0mm)nominal
Continuity and signal wires2*26 AWG with insulation of fluoropolymer
Sensing wires2*30 AWG with jacket of conductive fluoropolymer
CarrierFluoropolymer
Cable weight(50 ft/15m length)2.3 lb (1kg)
Cable colorHigh-visibility yellow
Technical Information
Breaking strengthCable only:160 Ib(72KG) .Including connectors:70 Ib(32kg)
Cut-through force>50Ib with 0.005(>22kg with with 0.13mm) in blade; cross head speed 0.2in/min
Abrasion resistance>65 cycles per UL719
Maximum continuous operating temperature70degree
Performance Data
Leak size to alarm(tap water)2 in(50mm)maximum at any point along sensing cable ,up to 5000 ft maximum system length
Drying timeCable dries and resets within 15 seconds removal from standing water
Standard cleaning methodWipe with clean damp cloth

China supplier 4 pins water leak sensor cable with strong abrasion resistance, liquid leak sensing cable for detecting leakage







China supplier 4 pins water leak sensor cable with strong abrasion resistance, liquid leak sensing cable for detecting leakageChina supplier 4 pins water leak sensor cable with strong abrasion resistance, liquid leak sensing cable for detecting leakage

Applications

  China supplier 4 pins water leak sensor cable with strong abrasion resistance, liquid leak sensing cable for detecting leakage

Data Center

Water damage is the most unknown environmental threat for a data center. Once the leakage occurs under the raise floor, it can flood electric wires, cause heavy financial losses especially for the banking and telecommunication systems. Early detection will avoid catastrophic damages.

China supplier 4 pins water leak sensor cable with strong abrasion resistance, liquid leak sensing cable for detecting leakage

Wafer/Chip/Semiconductor Plants

The expensive equipment in these plants can be damaged once in contact with the liquid. More seriously, it will cause the production suspension.

China supplier 4 pins water leak sensor cable with strong abrasion resistance, liquid leak sensing cable for detecting leakage

Technical Room-MER/UPS Room

These rooms are critical to assure the good functioning of the whole building. In case of the leakage water in contact with UPS would paralysis the backup system, causing the most serious data damage loss. This is the crucial environment in which water leakage is unacceptable.

China supplier 4 pins water leak sensor cable with strong abrasion resistance, liquid leak sensing cable for detecting leakage

Museum & Library

Precious artistic work, highly protected cultural relic, rare specimen demonstrated in the museum and books deposited in libraries are concerned by 100% safety. Protection of water leakage is one of these priorities.
