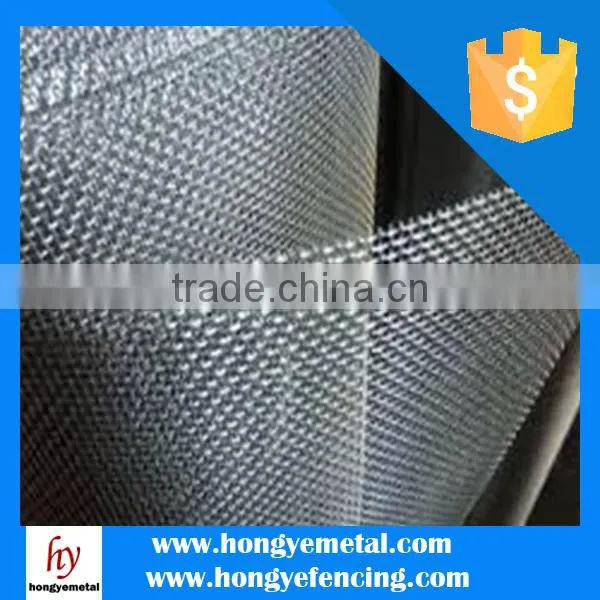

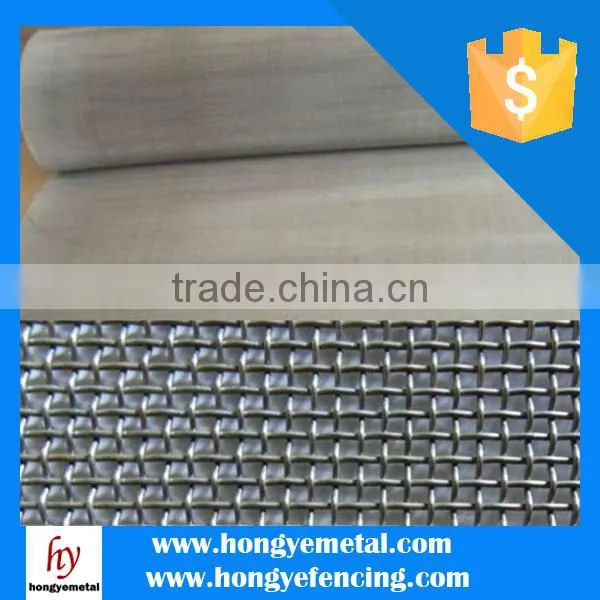

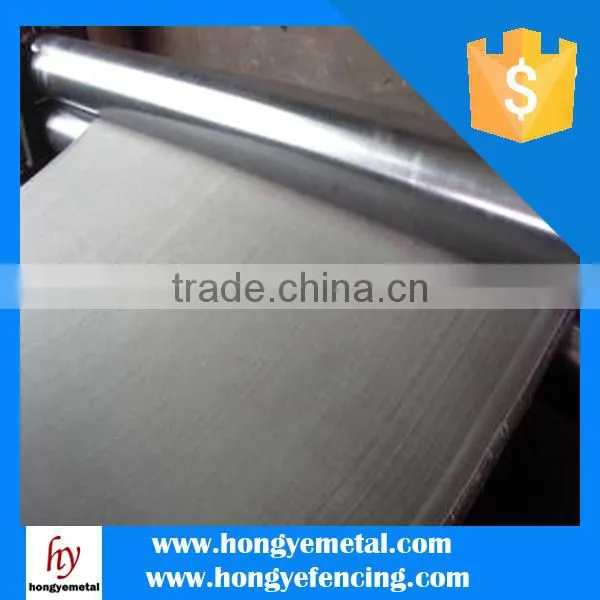

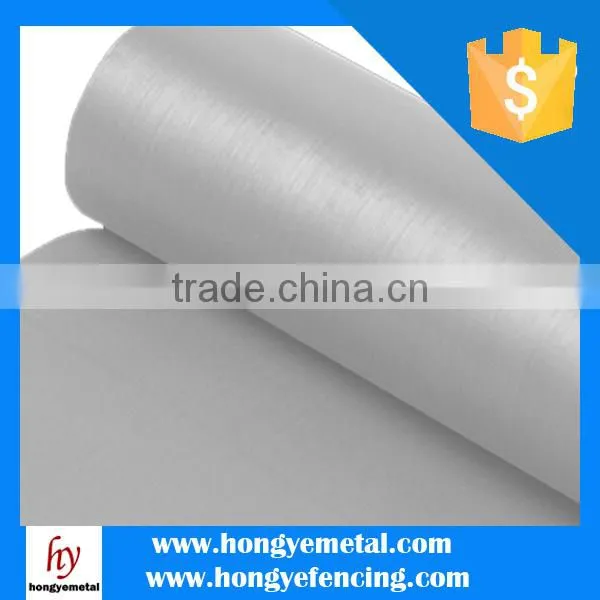

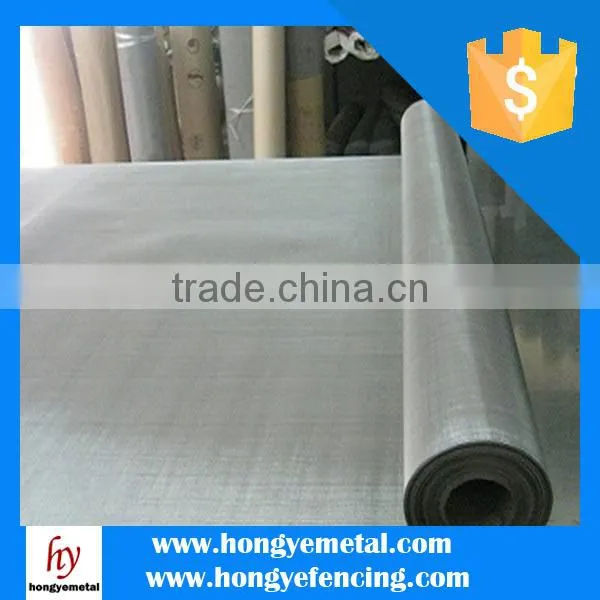

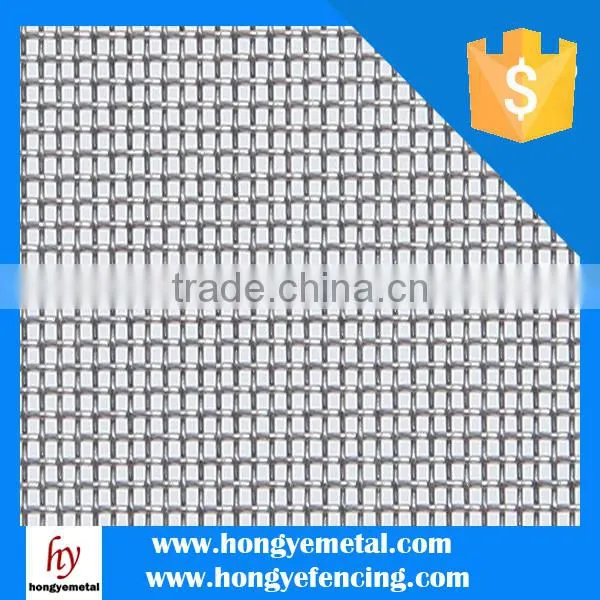

Inconel 600 625 800 825 Wire Mesh
Inconel 600 Wire Cloth from 2mesh to 200mesh. Inconel wire cloth is nickel-chromium alloy ,which is nickel base alloy.
Weave Pattern: plain weave, twill weave.
Materials: Inconel 600,Inconel 601,Inconel 617,Inconel 625,Inconel 718,Inconel X-750.
Feature: Inconel wire cloth can be used in the temperature range from low temperature to 1093 degrees Celsius.No magnetic,oxidation resistance, very good cold-formed function,good weldability, good corrosion resistance to the reducing environment of the medium intensity.
Use: In the chloride ion and the alkaline salt solution,no corrosion happen. Inconel wire mesh is widely used in Petrochemical, aerospace industry, hydropower, nuclear power, oil refining and shipbuilding, onshore and offshore oil and gas, pulp and paper, chemical fiber, machinery equipment manufacturing industry and the change of heat exchangers and other products, highly recognized by customers.
Packing: waterproof paper with plastic cloth,then put into wooden box.
Inconel wire Mesh: 2 mesh to 200 mesh in plain weave.
Inconel's materials:1. Inconel 600 is non-magnetic, has better oxidation resistance than pure nickel and good resistance to chloride-ion stress corrosion.2. Inconel 617 has an exceptional combination of metallurgical stability, strength, and oxidation resistance at high temperatures.3. Inconel 718 has exceptional creep-rupture properties up to 1300 degrees F, and outstanding weldability without spontaneous hardening.4. Inconel X-750 is similar to alloy 600, but precipitation hardenable, and has a very low creep rate.
Inconel Wire Mesh | ||
Mesh/Inch |
Wire Diameter(mm) |
Aperture(mm) |
2 |
1.6 |
11.10 |
4 |
0.91 |
5.44 |
6 |
0.71 |
3.52 |
8 |
0.50 |
2.67 |
10 |
0.50 |
2.04 |
12 |
0.45 |
1.66 |
14 |
0.40 |
1.41 |
16 |
0.30 |
1.28 |
18 |
0.25 |
1.16 |
20 |
0.25 |
1.02 |
30 |
0.21 |
0.64 |
40 |
0.19 |
0.45 |
50 |
0.15 |
0.36 |
60 |
0.15 |
0.27 |
70 |
0.13 |
0.232 |
80 |
0.12 |
0.197 |
90 |
0.11 |
0.172 |
100 |
0.10 |
0.154 |
110 |
0.09 |
0.141 |
120 |
0.09 |
0.122 |
130 |
0.07 |
0.125 |
140 |
0.07 |
0.111 |
150 |
0.06 |
0.109 |
160 |
0.06 |
0.098 |
180 |
0.053 |
0.088 |
200 |
0.053 |
0.074 |
Inconel 600 Chemical Composition %
C |
Mn |
Fe |
Cu |
Ni |
Si |
S |
Cr |
Max |
Max |
Max |
Max |
Max |
Max |
Max |
Min/Max |
0.15 |
1.0 |
6.0 - 10.0 |
0.5 |
72.0 |
0.5 |
0.015 |
14.0 - 17.0 |
Hongye is home to a range of wire mesh products dedicated to providing online sales and service, where you can find almost all the related products. Some of the products are manufactured by our factory in Anping (since 1995) and some by our partner factories. All the products have been tested strictly before sales.
Hongye is proud of the people that work for us,the experienced workers, strict inspectors and energetic sales, whose work guarantees the best price, quality products and reliable service for customers.
Hongye is always ready to be your one-stop supermarket for wire mesh.
