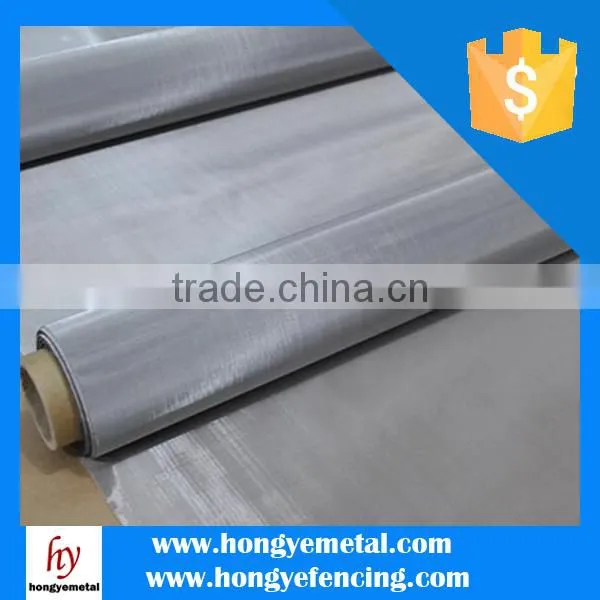

Incoloy MA956 Wire Mesh Incoloy MA956 Incoloy Wire Screen
Incoloy 800 Wire Cloth is primarily used in applications with temperatures up to 1100ºF, where alloys 800H and 800HT are normally used in temperatures above 1100ºF where resistance to creep and rupture is required. Incoloy 800 is a nickel-iron chromium alloy with good strength and excellent resistance to oxidation and carburization in high temperatures.
Incoloy 825 wire mesh is a nickel iron chromium alloy with additions of molybdenum, copper and titanium, with exceptional resistance to many aggressive corrosion environments.
Weave Pattern: plain weave, twill weave.
Materials: Incoloy 800,Incoloy 800H,Incoloy 800HT,Incoloy 825.
Feature: It has high nickel content, sufficient to resist chloride ion stress corrosion cracking, and a very stable austenite structure. The levels of molybdenum and copper enable the alloy to resist reducing agents and acids. Chromium gives resistance to oxidizing conditions, such as nitric acid solutions, nitrates and oxidizing salts.
Use: Incoloy 800 Wire Mesh is widely used in equipment that must have high strength and resistance to oxidation, carburization and other harmful effects of high temperature exposure. For service requiring optimum creep and rupture properties, Incoloy 800H or 800 HT are used.
Packing: waterproof paper with plastic cloth,then put into wooden box.
Incoloy wire Mesh: 2 mesh to 100 mesh in plain weave
Incoloy Wire Mesh | ||
Mesh/Inch |
Wire Diameter(mm) |
Aperture(mm) |
2 |
1.6 |
11.10 |
4 |
0.91 |
5.44 |
6 |
0.71 |
3.52 |
8 |
0.50 |
2.67 |
10 |
0.50 |
2.04 |
12 |
0.45 |
1.66 |
14 |
0.40 |
1.41 |
16 |
0.30 |
1.28 |
18 |
0.25 |
1.16 |
20 |
0.25 |
1.02 |
30 |
0.21 |
0.64 |
40 |
0.19 |
0.45 |
50 |
0.15 |
0.36 |
60 |
0.15 |
0.27 |
70 |
0.13 |
0.232 |
80 |
0.12 |
0.197 |
90 |
0.11 |
0.172 |
100 |
0.10 |
0.154 |
Incoloy 800 Chemical Composition %
C |
Mn |
Fe |
Cu |
Ni |
Si |
S |
Cr |
P |
Ti |
Al |
Max |
Max |
Max |
Max |
Min/Max |
Max |
Max |
Min/Max |
Max |
Min/Max |
Min/Max |
0.10 |
1.5 |
Rem |
0.75 |
30.0 - 35.0 |
1.00 |
0.015 |
19.0 - 23.0 |
0.045 |
0.15 - 0.60 |
0.15 - 0.60 |
Hongye is home to a range of wire mesh products dedicated to providing online sales and service, where you can find almost all the related products. Some of the products are manufactured by our factory in Anping (since 1995) and some by our partner factories. All the products have been tested strictly before sales.
Hongye is proud of the people that work for us,the experienced workers, strict inspectors and energetic sales, whose work guarantees the best price, quality products and reliable service for customers.
Hongye is always ready to be your one-stop supermarket for wire mesh.
