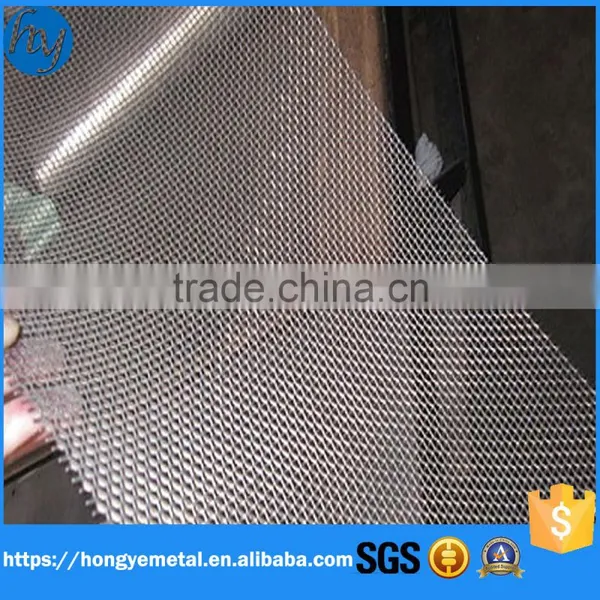

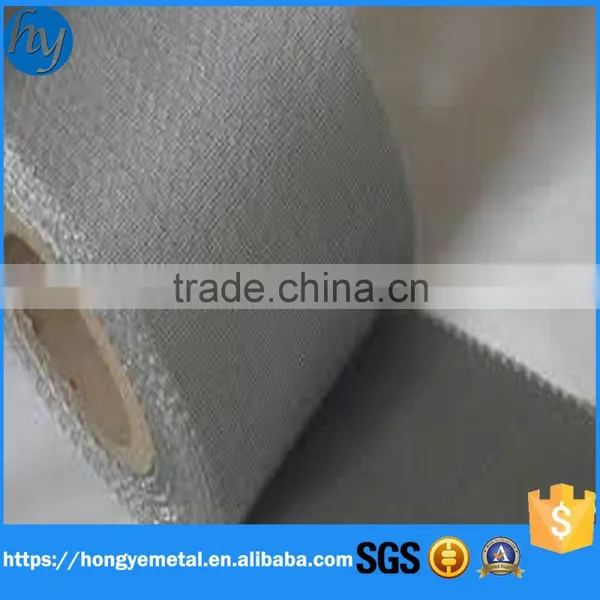

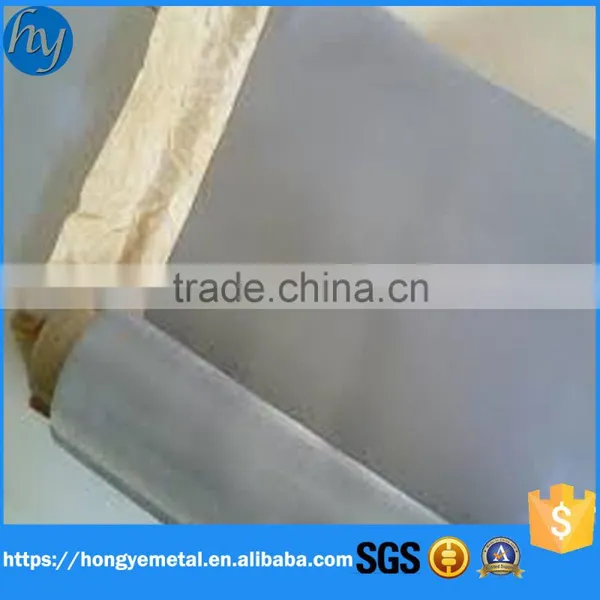

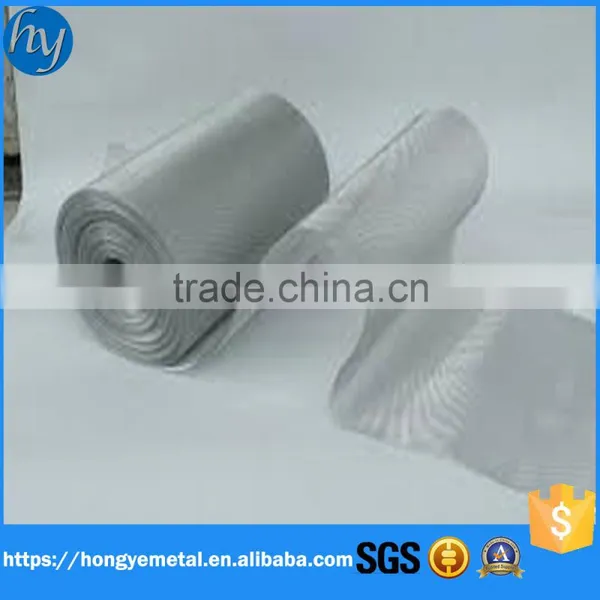

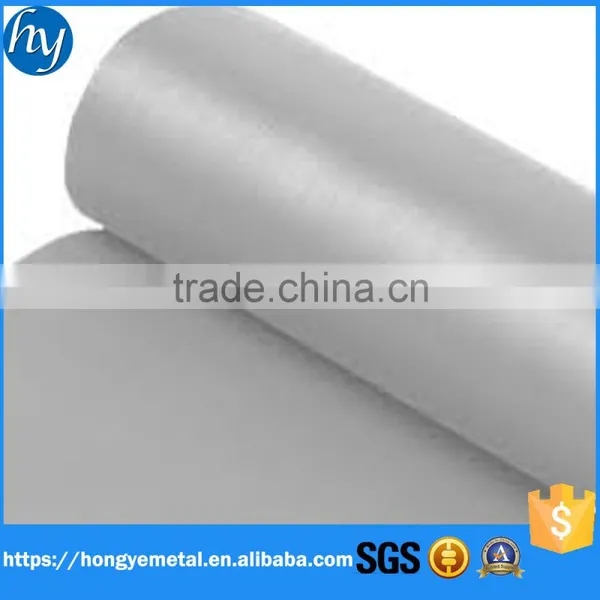

Nichrome Wire Mesh
Nichrome Wire Mesh is widely used to process heat tratment for electronic parts and components. Nickel Chromium Wire Meshes have many advantages, such as deformation ability, thermal stability, mechanical character, shockproof ability in thermal state and anti-oxidization. For heating, resistance Conveyor Belt must be stable in air when hot.
Nichrome Wire Cloth is an ideal material, because it has relatively high resistance and forms an adherent layer of chromium oxide when it is heated for the first time. Material beneath the Conveyor Belt will not oxidize, preventing the Conveyor Belt from breaking or burning out. So Nickel Chromium Wire Mesh is good for anti-corrosion and high resistant co-efficiency. So Nickel Chromium Wire Cloth is applicable for heat treatment, air-carbon furnace, chemical industry, machinery, metallurgy.

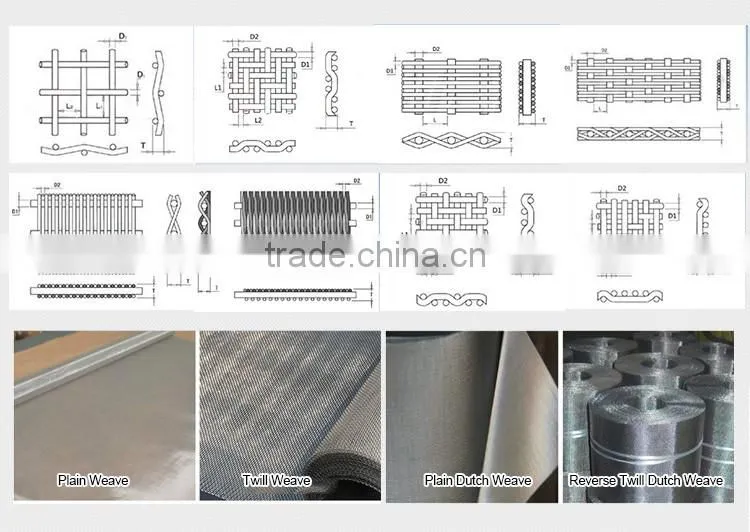

Weave Pattern: plain weave, twill weave.
Application:
1) Heating Elements;
2) High-Temperatures Uses;
3) Igniters;
Packing: waterproof paper with plastic cloth,then put into wooden box.
Nichrome wire mesh: 4mesh-325mesh.
Nichrome: it is a blend of 60% nickel, 16% chromium and 24% iron. It retains its strength and shape at temperatures up to 1700 degrees F. It also resists oxidation and scaling.
Specification List of Nichrome Wire Mesh | |||||||||
Mesh/Inch |
Wire Dia |
Mesh |
Opening Area |
Mesh /Inch |
Wire Dia |
Mesh Opening |
Opening Area |
|
|
4 |
1.60 |
4.75 |
56% |
20 |
0.41 |
0.86 |
46% |
|
|
8 |
1.19 |
1.98 |
39% |
40 |
0.25 |
0.385 |
37% |
|
|
8 |
0.120 |
0.303 |
51% |
80 |
0.12 |
0.197 |
38% |
|
|
10 |
0.89 |
1.65 |
42% |
200 |
0.05 |
0.077 |
37% |
|
|
16 |
0.51 |
1.09 |
46% |
325 |
0.035 |
0.043 |
30% |
|
|
Nichrome Chemical Composition %
C |
Cr |
Mn |
Ni |
S |
Si |
Fe |
0.15 |
14.0-18.0 |
1.0 |
57 |
0.01 |
0.75-1.60 |
Rem |

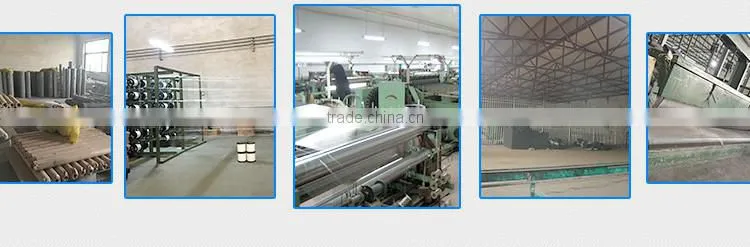

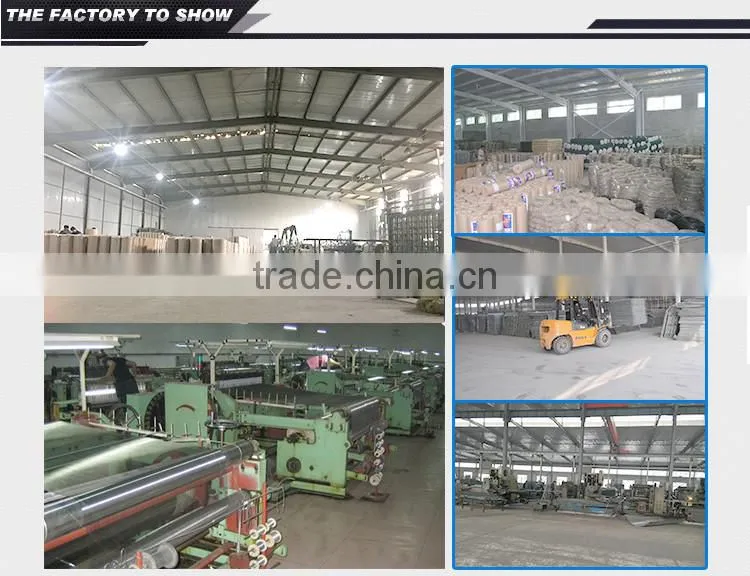

Hongye is home to a range of wire mesh products dedicated to providing online sales and service, where you can find almost all the related products. Some of the products are manufactured by our factory in Anping (since 1995) and some by our partner factories. All the products have been tested strictly before sales.
Hongye is proud of the people that work for us,the experienced workers, strict inspectors and energetic sales, whose work guarantees the best price, quality products and reliable service for customers.
Hongye is always ready to be your one-stop supermarket for wire mesh.
