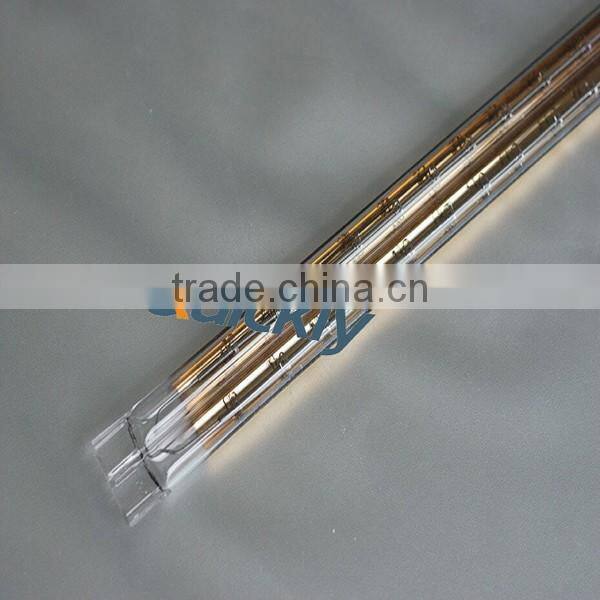

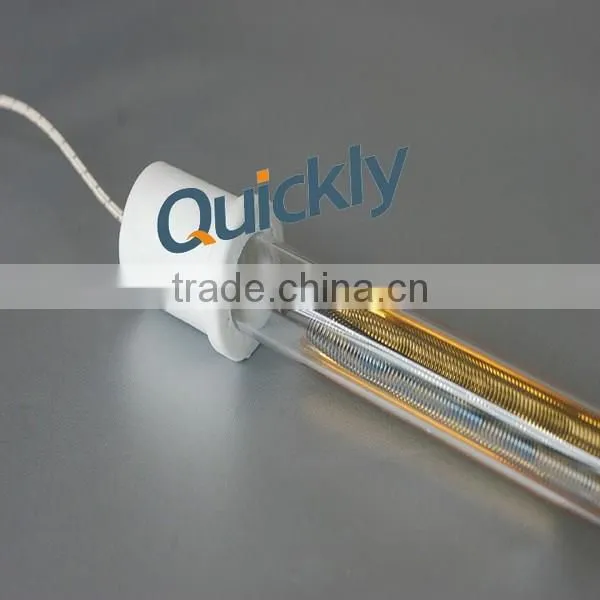

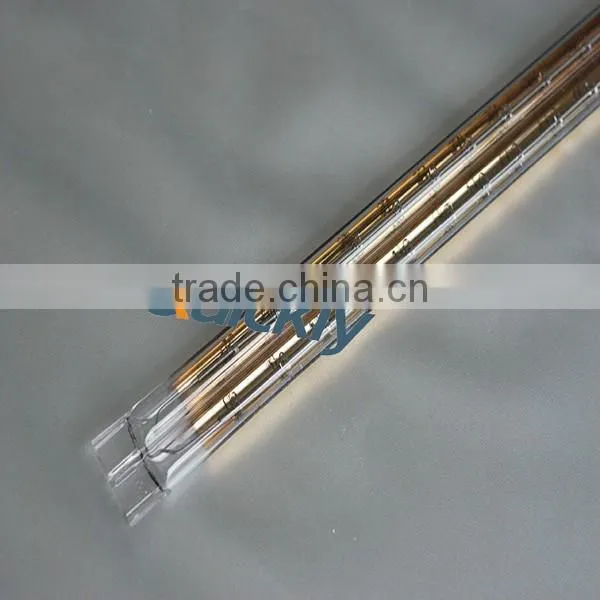

Quartz Heating Tube Medium Wave Infrared Lamp for Wooden Furniture Paint Drying

Name: Quartz Heating Tube Medium Wave Infrared Lamp for Wooden Furniture Paint Drying
Brand: Quickly
SKU: 141796542
Availability: InStock

Quartz Heating Tube Medium Wave Infrared Lamp for Wooden Furniture Paint Drying thumbnail-1

Quartz Heating Tube Medium Wave Infrared Lamp for Wooden Furniture Paint Drying photo-1

US$ 1 - 200 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Anhui, China

Brand Name:

Quickly

Application:

heating and drying, widely used in all kinds of industry heating process

Contact Supplier Request Quote Chat Now

Hefei Quickly Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Anhui, China

Brand Name Quickly

Application heating and drying, widely used in all kinds of industry heating process

Surface Treatment Gold Coated

Outside Diameter 10,12,15,23*11,33*15mm

Product Description

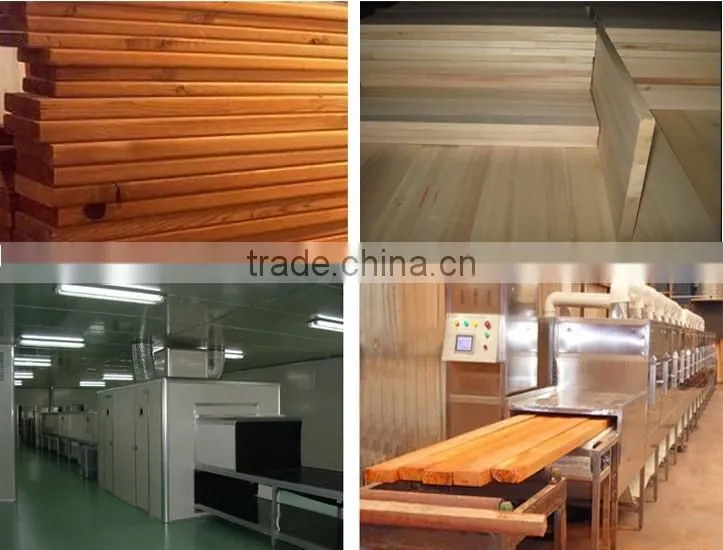

Application: Timber Drying

Product		Short wave IR heat lamp	Medium wave IR heat amp
Wave length		1.0-1.4μm	2.4-2.7μm
Heating response time		1 second	1-4min
Voltage		110v/230v/380v/400v,customized available
Max. Length for twin tube		6000mm
Max. filament temp		2200°C	900°C
Watt density		35-200w/cm	10-30w/cm
Working expectation		5000hours	20000hours
Dia. of twin tube		23×11mm / 33×15mm
Wall thickness of tube		0.8mm,1.0mm,1.2mm,1.5mm,1.8mm
Dia. of single tube		Φ10mm, Φ11mm, Φ12mm, 15mm,18mm, 20mm
Max. length for single tube		1600mm(Φ12mm)	2000mm(Φ15mm)
Main material	filament	tungsten filament	Ni80Cr20 heating wire
	quartz glass	can resist high temperature, sudden hot and cold
Inner structure of quartz tube		Quartz envelope profile , vacuum processing with protective halogen gas inflation, which provide a safe working environment	Quartz envelope profile , Non-vacuum
Surface of quartz tube		1. White reflector/Gold reflector: High heat radiation rate 2. Transparent tube: Normal style 3. Ruby tube for shortwave
