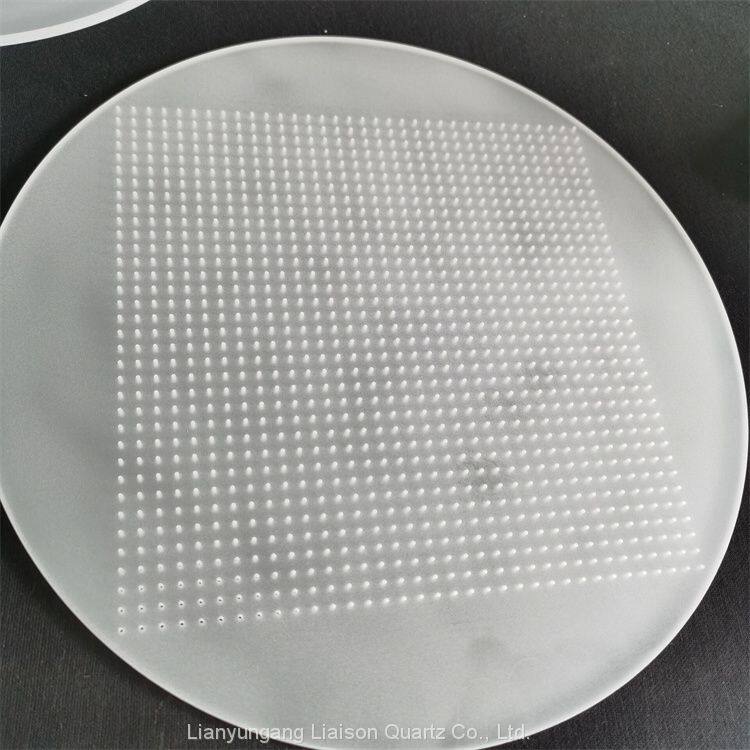

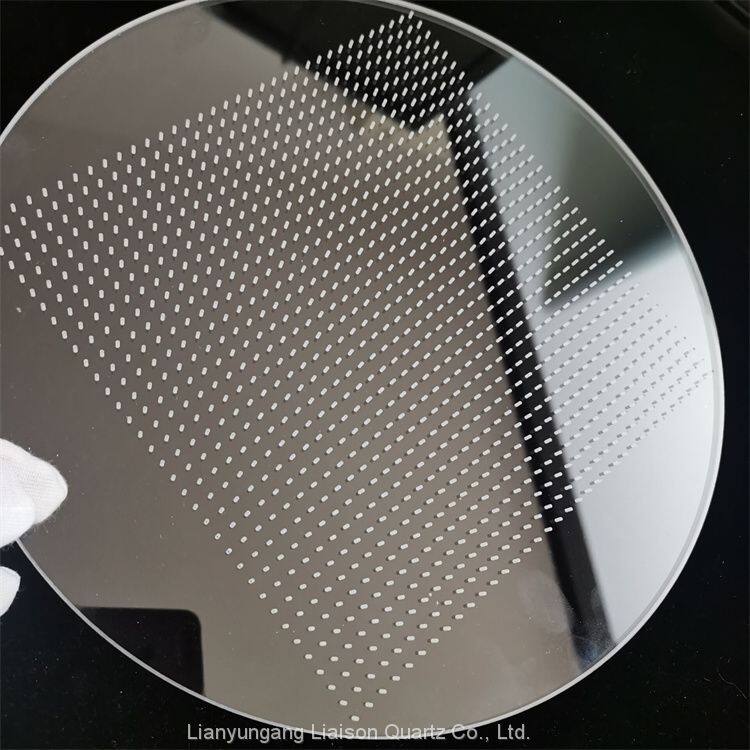

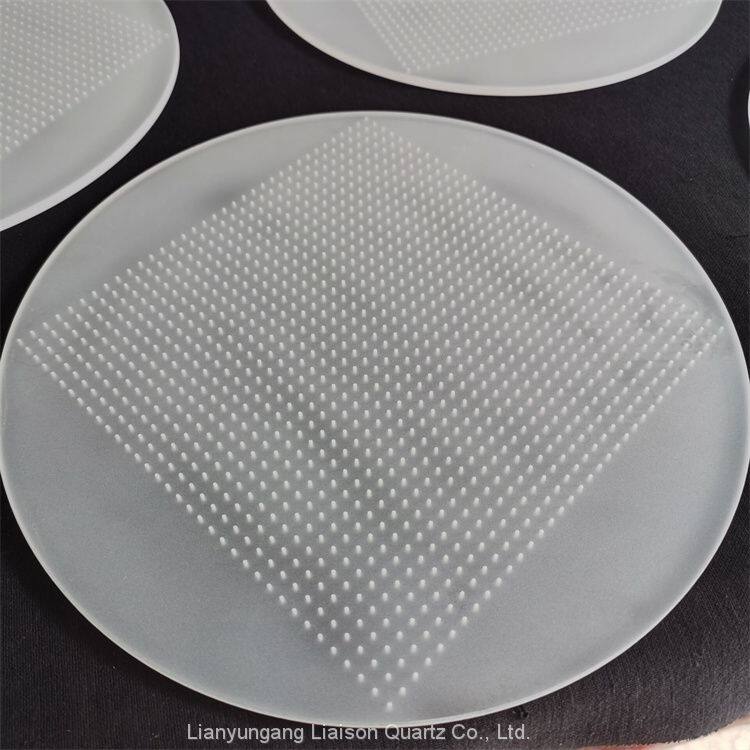

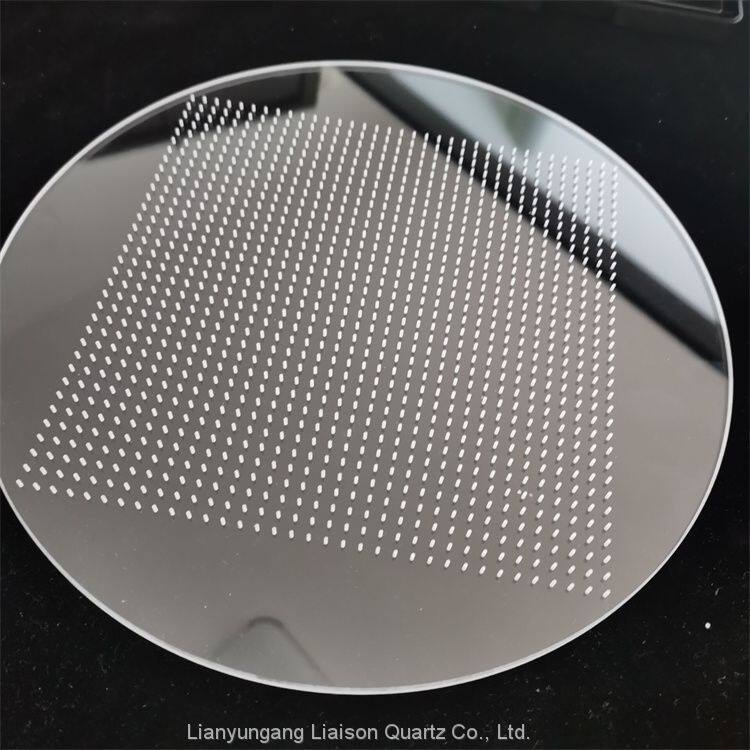

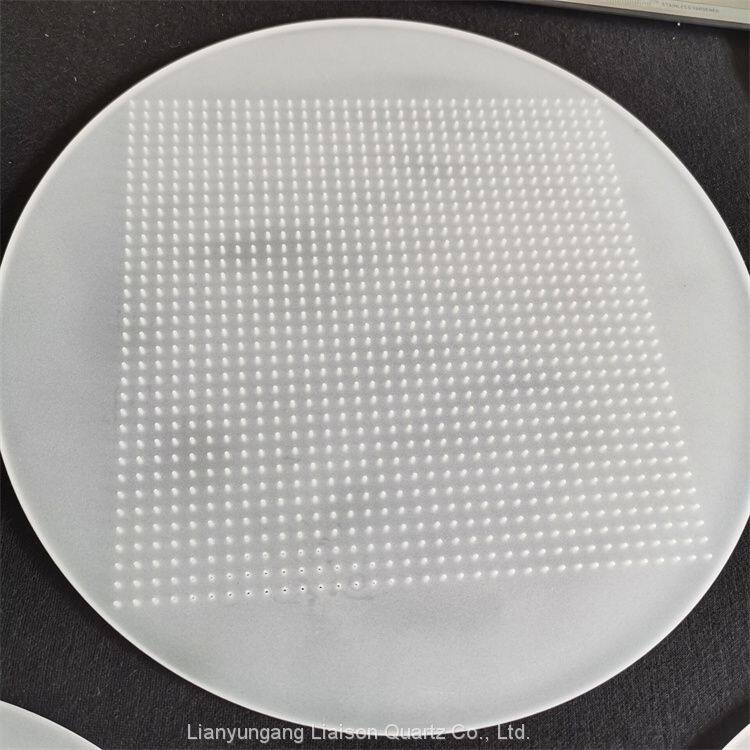

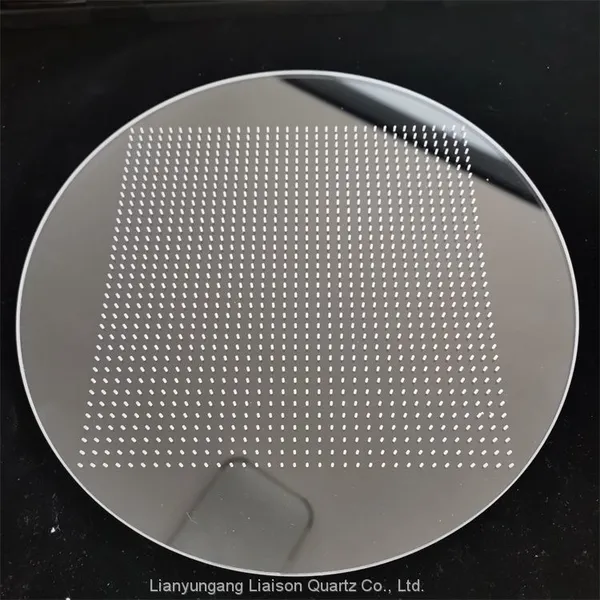

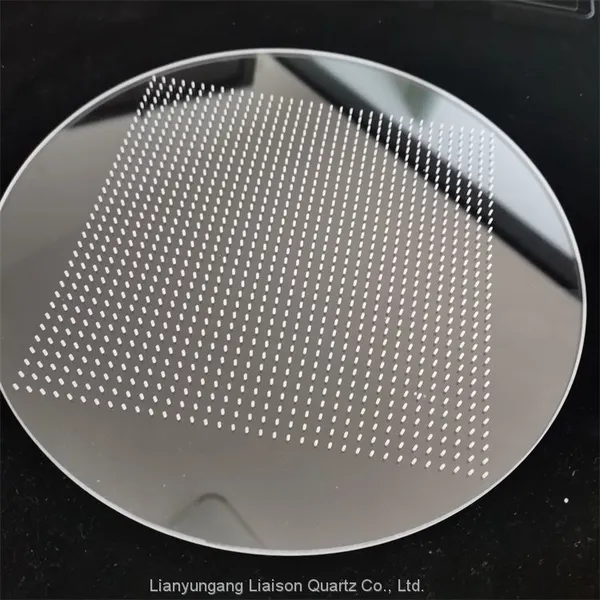

Help CenterHigh Quality Custom Transparent Quartz Plate Quartz Disc With 0.1mm Holes
Related Products
-
Quartz Tube With Thread / Quartz Pipe With Screw Thread Variable Size CustomizationUS$ 5 - 30MOQ: 10 Pieces -
Quartz Tube With Thread / Quartz Pipe With Screw Thread Variable Size Quartz Screwed Threaded TubeUS$ 5 - 30MOQ: 10 Pieces
-
Custom Quartz Ground Joints Standard Ball Bowl Quartz Joint Connector With Good Thermal StabilityUS$ 20 - 100MOQ: 10 Pieces
-
Factory Customized Quartz Glass Tube High Pressure Quartz Glass Tube Quartz Tube FlangeUS$ 100 - 1000MOQ: 10 Pieces
-
One End Closed Quartz Glass Tube Quartz Glass Sleeve for uv LampUS$ 100 - 1000MOQ: 10 Pieces
Shape: round, square, rectangular and various shapes are available.
Size and thickness:
Square type
100mmx100mmx(thickness 1mm-30mm)
150mmx150mmx(thickness 1mm-30mm)
200mmx200mmx(thickness 1mm-30mm)
200mmx400mmx(thickness 1mm-30mm)
300mmx300mmx(thickness 1mm-30mm)
400mmx400mmx(thickness 1mm-30mm)
Other size can be made according to customers’ detailed requirements.
Circular shape
Diameter 50mmx (thickness 1mm-30mm )
Diameter 100mmx(thickness 1mm-30mm )
Diameter 150mmx(thickness 1mm-30mm )
Diameter 198mmx(thickness 1mm-30mm )
Other size can be made according to customers’ detailed requirements.
| Physical properties | |
| SiO2 : | 99.99% |
| Density : | 2.2(g/cm3) |
| Degree of hardness mosh' scale : | 6.6 |
| Coefficient of expansion 25--300℃ ℃-1 ( ×10-6 ) | 0.58 |
| Melting point: | 1732°C |
| Working temperature : | Under 1100°C |
| Max temperature can reach in a short time : | 1450°C |
| Acid tolerance: | 30 times than Ceramics , 150 times than Stainless steel |
| Visible light transmittance : | above 93% |
| UV spectral region transmittance: | 80% |
| Resistance value : | 10000 times than ordinary glass |
| Annealing point: | 1180°C |
| softening point: | 1630°C |
| Strain point: | 1100°C |
| Spectral Transmission at 1.0mm Thickness | ||||||||
| nm | 220 | 255 | 280 | 315 | 350 | 380 | 590 | 780 |
| % | 89 | 91 | 93 | 93 | 93 | 93 | 93.2 | 93.4 |
| Chemical Composition, unit: PPM | ||||||||
| K+Na | Ca | Fe | Al | Mg | Ti | Ba | Li | Cu |
Application of standard clear quartz tube: halogen lamp, mercury lamp, single end lamp,automobile lamp,stage lamp, The thermoelectric boiler, The photocopier lamp, Water treatment lamp casing,quartz ware and pipe.
Application of Ultraviolet quartz tube : Single-ended metal halide lamp,automobile metal halide lamp,G12 metal halide lamp, anti-explosion metal halide lamp, High power stage light and so on.
Application of free ozone quartz tube : Kill germs free ozone light,the material of hospital ,family,and public place Ultraviolet kill germs,and water treatment.
Application of quartz rod : Linear light source products, light guide stick, light pipe, Fiber Lighting, Quartz fiber manufacturing,semiconductor silicon wafer, hollow half round.
Application of film coated quartz heater tube: Instant Hot water heater, Alkaline water purifier, Electrothermal heater, Oven heating, Aquarium heater,Screen Printing, Drying, Sealing, Food Warming, Plastic Forming, Laminating.
