Home > Products > Timber drying use IR lamp > High Power Low Color Temp Carbon Fiber IR Lamp Infrared Heater Element
High Power Low Color Temp Carbon Fiber IR Lamp Infrared Heater Element
- Shanghai
- T/T Credit Card PayPal
You May Like
-
2016 New 2500K Carbon Fiber IR Lamp Quartz Heater Element
-
Carbon Medium Wave IR Heat Lamp Quartz Heater Element
-
Wood Drying Short Wave Quartz Element Infrared Heater Tube 6000W
-
Wood Drying Oven Carbon Medium Wave Quartz Heater Tube 2000W
-
Carbon Medium Wave Infrared Lamp Twin Tube Heater
-
Carbon Medium Wave Infra Red Light Emitter Lamp Tube Heater
Product Details
| Condition | New | Type | Other, Infrared Heater, Infrared heating lamp | |
| Power Source | Electric | Place of Origin | Anhui, China | |
| Brand Name | Quickly | Model Number | KKL-S-005 | |
| Dimension(L*W*H) | 600*(10*10,18*18, 23*11,33*15)mm | Weight | 0.5-6KG | |
| Voltage | 45-600V, 110V, 220V, 240V, 380V, customized. | Power(W) | 0.3-6KW | |
| Certification | CE, MA, AL, CNAL, CE approved by EMC | Warranty | 5,000 hours, 5,000 hours | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

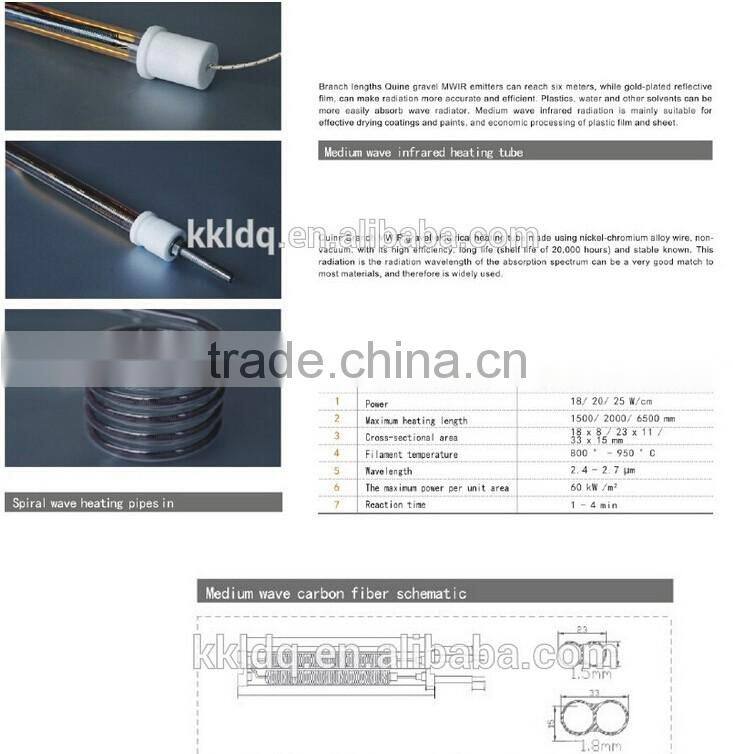

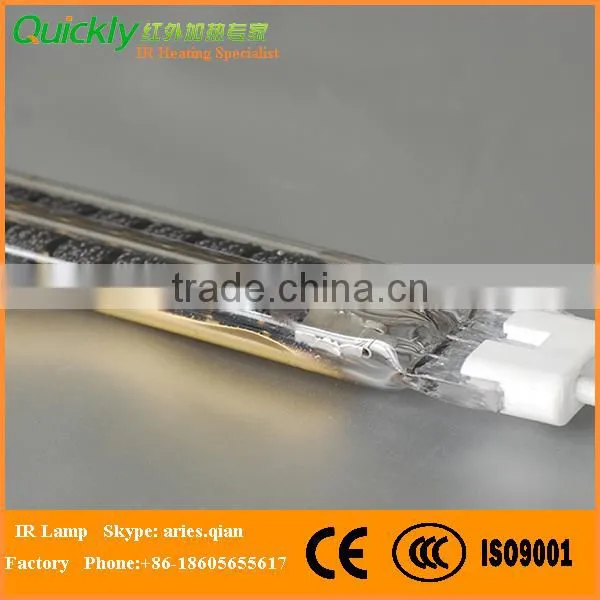

High power low color temp carbon fiber IR lamp infrared heater element
Product Catalog links as follow:
- Shortwave heat lamp
- Medium Wave heat lamp

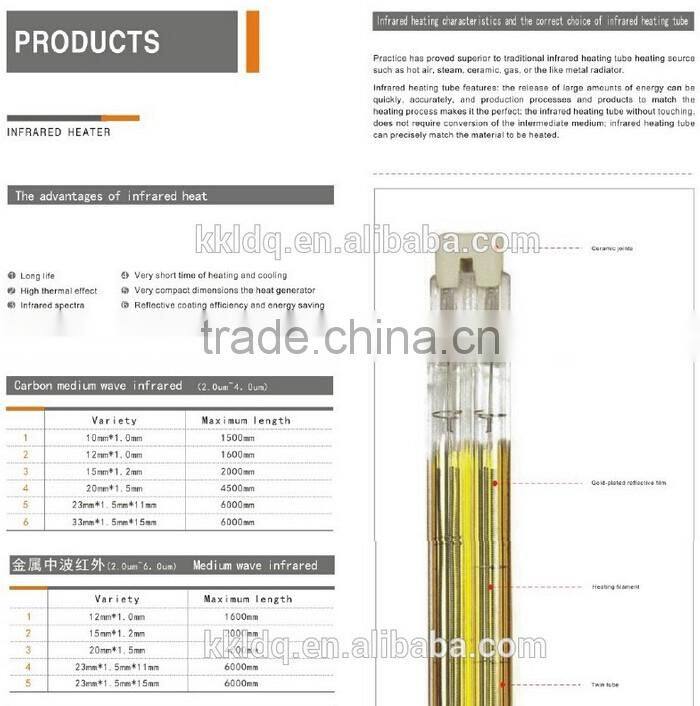

- Carbon fiber far infrared heat lamp
- Fast Medium wave heat lamp
Voltage | 120V, 220V, 240 V,380V,480V |
Wattage | Range from 300W to 10000W |
Diameter | 10mm,12mm,15mm,20mm,23*11mm,33*15mm |
Electricity saving rate | Can save 20-35% more energy |
Main Positive Wavelength | 1.0-1.4um |
Response Time | 1s |
Max wire temperature | 1800 ° - 2400 °C
|
Using time | More than 5000h |
High power density | up to 200w/cm |
Heating method | Non-contacting heating, radiation heating way |
Core Competence | Clean, safe, high efficient, energy-saving |
High heat reflector choice | Gold reflector and ceramic white reflector |

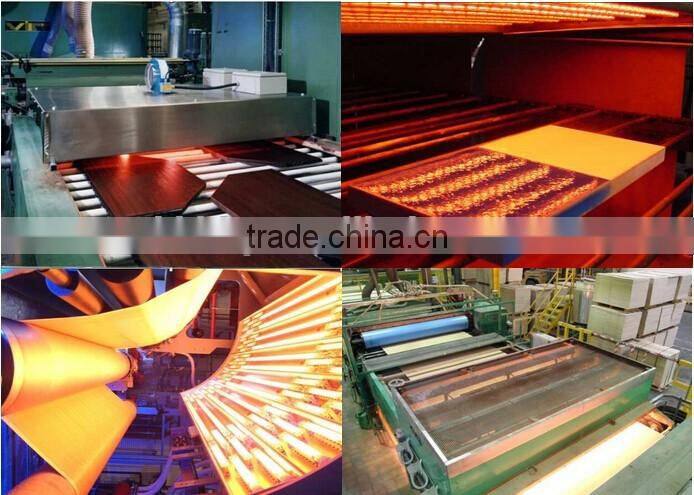

Application of High power low color temp carbon fiber IR lamp infrared heater element | |
Automotive | Primer coat,Color coat,Clear coat,Powder coat, Seat de-wrinkling,Head liner forming |
Plastics | Welding,Forming,Softening,Curing,Drying |
Printing | Ink drying,Silk Screening,Bindings,Glue drying |
Food | Baking,cooking,stove,Browning,Dehydrating,Pasteurizing |
Electronics | Re-flow soldering,Water dry-off,Silk screening |
Textiles | Web Drying,Finishing,Pre-shrinking |
Glass- Ceramics | Heating safety glass,Drying mirrors,Drying frit |
Farm | Space heating,Incubating,Brooders |
High power low color temp carbon fiber IR lamp infrared heater element
1.About Quickly
Quickly Electric is a leading manufacture of infrared lamp in China.Our infrared lamps can replace the Ushio, GE, Philips and some other brands you may use . More competitive and stable in supplier chain. With fast delivery time and good quality lamps.
2.Can you make custom size lamp?
We have ODM and OEM services. Custom size,custom voltage and wattage,custom reflector and etc.
Just tell me what you need,or providing drawings.We will produce you the lamp you want.
3.How long about the lamp life time?
Short wave infrared lamp life time: more than 5000 hours(Assume high power density lamps),Medium wave infrared lamp life time: more than 20000 hours.
4.How about our Production test before delivery?
Every lamp will be tested by our QC department before shipping. Any damage before delivery will be replaced right away. Damage caused by delivery and non man-made reason within guarantee will also send the replacement heaters for you.
5.How to order the lamps?
We accept Paypal,Escrow,Western Union and T/T.
