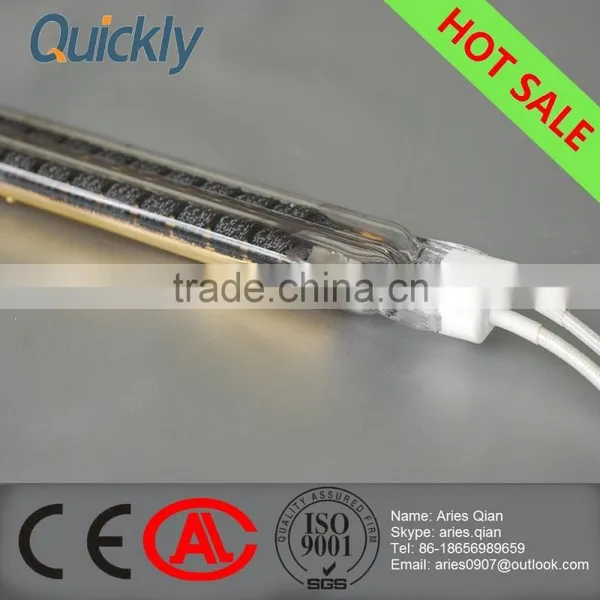

Carbor fiber heating tube IR lamp with high quality warranty
Practice has approved infrared heating superior to traditional heating such as hot air,steam,ceramic,gas,or metal radiator.
Infrared heating features: large amounts of energy can be released quickly and accurately,and match the
producing process and production perfectly to heat the objects,infrared heating need no conversion
of intermedium,infrared heating with different wave length can precisely match the heated
material's wave length,get the purpose of heating and drying in
a shorter time,with high quality.Long warranty of heating lamps,reduce the cost ,with no by-
product and pollution,realize green economy,and sustainable development.
Technical Parameters
Voltage | 100, 110, 120, 220, 230, 240 V |
Wattage | 300 -6000W |
Dia | 10,12,15,20,8*18,23*11,33*15mm |
Electricity saving rate | 30% |
Wavelength | 2.4-2.7 µm |
Response Time | 1 - 2s |
Electric heat transformation rate | >98% |
Temperature(surface) | 1200℃ |
Max heating length | 6400/ 2400 mm |
Wire temperature | 1400 °C - 1800 °C |
Max power per unit area | 150 kW /m2 |
Long life | More than 10000h |
Instant heat | within 1-4 min reaction time |
High power density | up to 80w/cm |
High control ability | neither ballast nor special circuits are necessary for basic usage |
No air droughts | because of radiation |
Clean | No byproducts, no pollution |
Extensive assortment | voltage,wattage,length,base,cables and other specifications are available |
High efficiency | more than 85% heat efficiency of full power. |
Economical
| More than 85% of consumed energy transmitted into infrared heat |
Heat can be focused | Same optical properties as light,can be directed by reflectors |
Safe | Quartz envelope, heat shock resistant |
Application
Infrared heating lamp application | |
Automotive | Primer coat,Color coat,Clear coat,Powder coat, Seat de-wrinkling,Head liner forming |
Plastics | Welding,Forming,Softening,Curing,Drying |
Printing | Ink drying,Silk Screening,Bindings,Glue drying |
Food | Baking,cooking,stove,Browning,Dehydrating,Pasteurizing |
Electronics | Re-flow soldering,Water dry-off,Silk screening |
Textiles | Web Drying,Finishing,Pre-shrinking |
Glass- Ceramics | Heating safety glass,Drying mirrors,Drying frit |
Farm | Space heating,Incubating,Brooders |

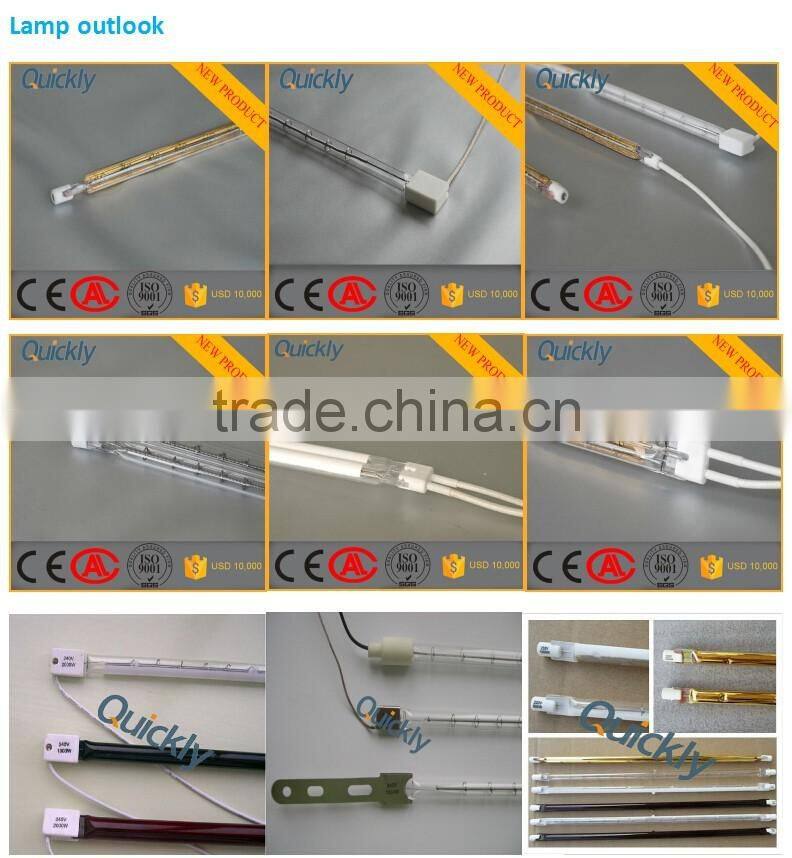

Picture showcase
1.About Quickly
Quickly Electric is a leading manufacture of infrared lamp in China.Our infrared lamps
can replace the Ushio, GE, Philips and some other brands you may use . More
competitive and stable in supplier chain. With fast delivery time and good quality lamps.
2.Can you make custom size lamp?
We have ODM and OEM services. Custom size,custom voltage and wattage,custom
reflector and etc.
Just tell me what you need,or providing drawings.We will produce you the lamp you
want.
3.How long about the lamp life time?
Short wave infrared lamp life time: more than 5000 hours(Assume high power density
lamps),Medium wave infrared lamp life time: more than 20000 hours.
4.How about our Production test before delivery?
Every lamp will be tested by our QC department before shipping. Any damage before
delivery will be replaced right away. Damage caused by delivery and non man-made reason within guarantee will also send the replacement heaters for you.
5.How to order the lamps?
We accept Paypal,Escrow,Western Union and T/T.
