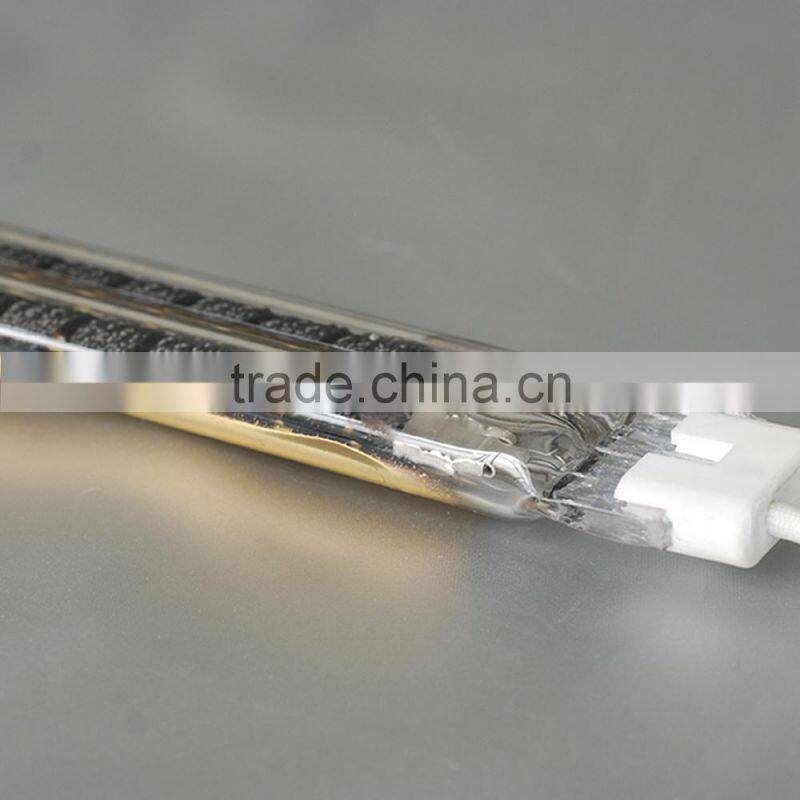

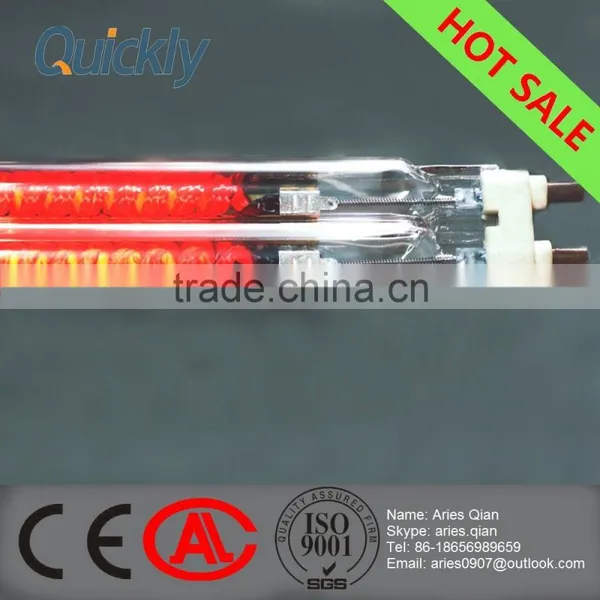

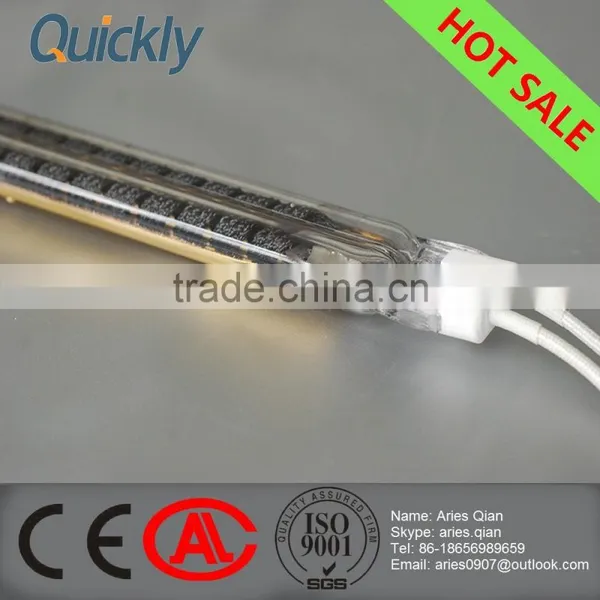

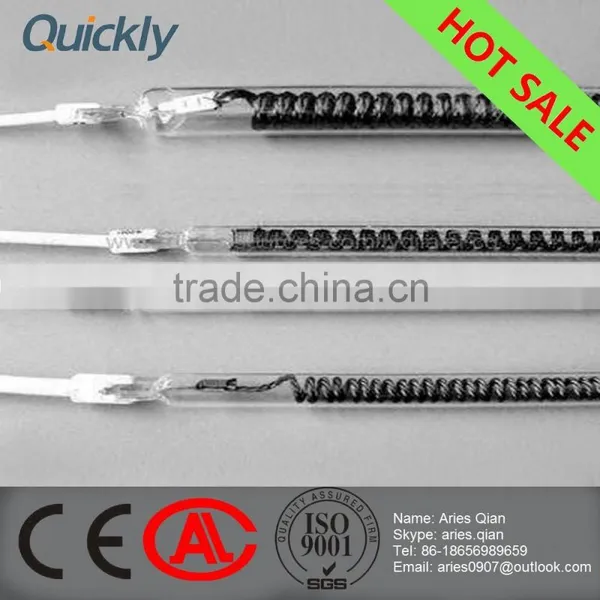

Carbor Fiber Heating Wire Electric Quartz Tube

Voltage

100, 110, 120, 220, 230, 240 V

Wattage

300 -6000W

Dia

10,12,15,20,8*18,23*11,33*15mm

Electricity saving rate

30%

 Wavelength

2.4-2.7 µm

Response Time

1 - 2s

Electric heat transformation rate

>98%

Temperature(surface)

1200℃

Max heating length

6400/ 2400 mm

Wire temperature

1400 °C - 1800 °C

Max power per unit area

150 kW /m2

Long life

More than 10000h

Instant heat

within 1-4 min reaction time

High power density

up to 80w/cm

High control ability

neither ballast nor special circuits are necessary for basic usage

No air droughts

because of radiation

Clean

No byproducts, no pollution

Extensive assortment

voltage,wattage,length,base,cables and other specifications are available

High efficiency

more than 85% heat efficiency of full power.

Economical

 More than 85% of consumed energy transmitted into infrared heat

Heat can be focused

Same optical properties as light,can be directed by reflectors

Safe

 Quartz envelope, heat shock resistant

Infrared    Heating       VS    Traditional   Heating

Name

heating way

medium

quality

Power

conversion

efficiency

source

environment

heating

section

Infrared heating

infrared
radiation

no

good

95%

electric

green,

no  byproducts,

no pollution

from inside

 to outside

Traditional heating

air convection

air

surface with

wrinkle and bubble

less 40%

Combustible

gases,Flammable

liquids,Coal

byproduct,

pollution

surface

Conclusion

using shorter time to heat and cool,reducing cost from long term,improving product quality,

high efficiency,environmental protection

Infrared heating lamp application

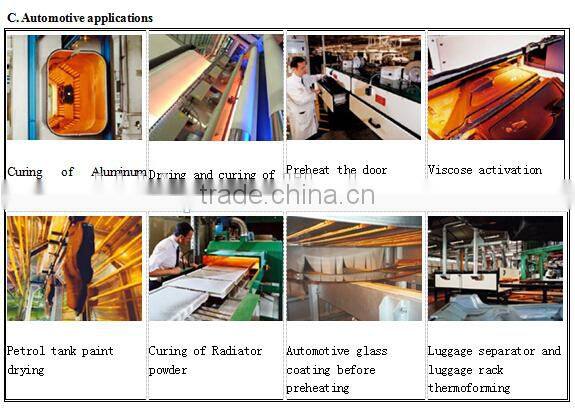

Automotive

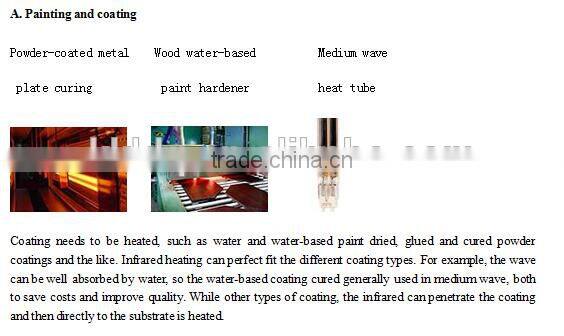

Primer coat,Color coat,Clear coat,Powder coat,

Seat de-wrinkling,Head liner forming

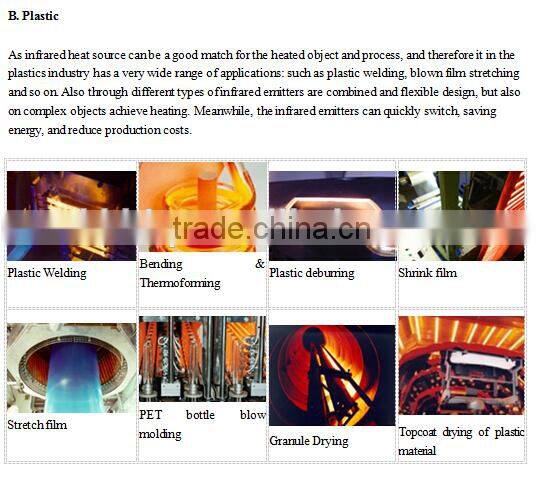

Plastics

Welding,Forming,Softening,Curing,Drying

Printing

Ink drying,Silk Screening,Bindings,Glue drying

Food

Baking,cooking,stove,Browning,Dehydrating,Pasteurizing

Electronics

Re-flow soldering,Water dry-off,Silk screening

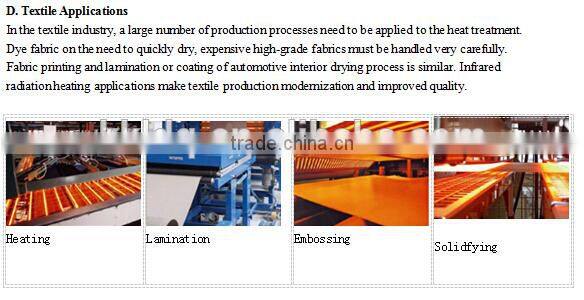

Textiles

Web Drying,Finishing,Pre-shrinking

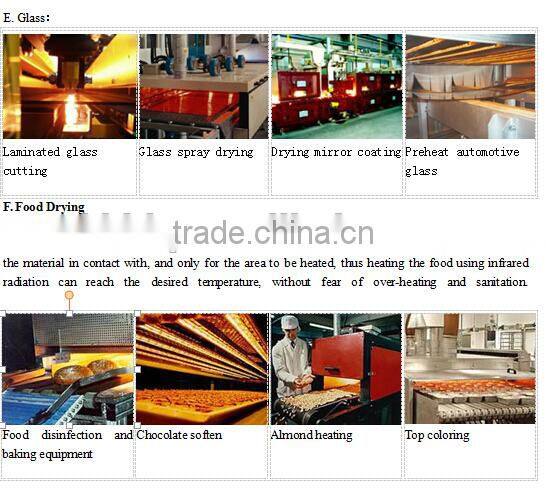

Glass- Ceramics

Heating safety glass,Drying mirrors,Drying frit

Farm

Space heating,Incubating,Brooders
