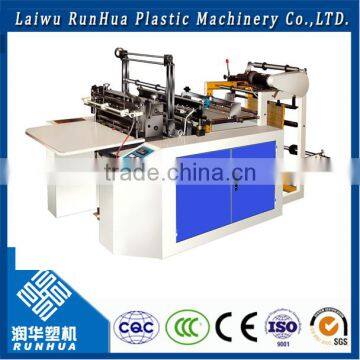

Customized shopping plastic bag making machine price
Customized shopping plastic bag making machine price
FEATURES
1.Wide application, several purposes serving
2.Advanced structure, easy operation, correct chromatography, easy maintenance
3.Raw material saving, reliable quality
Characteristics contrast to traditional wheel print machine:
a. Bright color, more fastness
b. Blow and color-print at same time, correct chromatography
c. Easy maintenance, reliable and stable quality
d. Less power consumption, less labor, work time saving, less cost
This machine adopt double friction rewinders and cutting device.
It could produce the single layer film and double layers rounded film according to clients’ requirements.
It could double rewind in single layer or single rewind in two layers.
Customized shopping plastic bag making machine price
I | FEATURE | Specifications |
1 | Material to be processed: | HDPE,LDPE ,recycle material and degradable material. |
2 | Film width: | 100-350 mm |
3 | Film thickness: | HDPE:0.015-0.03MM,LDPE:0.015-0.1MM |
4 | Extrusion Output: | 10-45KG/H |
5 | Screw speed: | 10-100R/MIN |
6 | Total Power: | 30KW |
7 | Machine weight: | 2500KG |
8 | Overall Dimensions: | 6000*2000*2500MM |
9 | Inverter Brand: | China |
II | EXTRUDER |
|
10 | Screw diameter: | 45MM |
11 | Screw ratio (L/D): | 28:1 |
12 | Screw and Barrel Material: | 38CrMoAL |
13 | Screw treatment: | BY NITRIDATION |
14 | Heaters: | STEEL (FOUR ZONE) |
15 | die head: | Common die |
16 | Die head for: | 35/70MM |
17 | Die head material: | 45 steel,mould cavity and mould centre chromeplate |
18 | Air Ring: | one layer |
19 | Screen changer type: | by hand |
20 | Reduction Gearbox: | HIGH-STRENGTH HARD TOOTH SURFACE |
21 | Motor power : | 11KW |
III | TAKE-UP TOWER |
|
22 | Type of Tower: | RISE AND DOWN FREELY |
23 | Cylinder Of Roller Width: | 420MM |
24 | Effective Roller Width: | 350MM |
25 | Gussets Boards (Include it) | Ok |
26 | Embossing Roller (Include it) | Ok |
27 | Bubble Guide/Stabilizing Ring: | by motor |
28 | Take-Up Control: | Inverter control |
29 | Digital corona treatment | Including |
IV | PRINTING PART |
|
30 | Print width | 100-420mm |
31 | Print type | Gravure |
32 | Ink type | Gravure plastic ink with solvent |
33 | Print speed | 0-50m/min |
34 | Print cylinder size | Length 600mm, diameter :75-180mm |
35 | Ink dry type | By electric |
36 | Print color | 1-2 color (max more 6 color for both sides) |
37 | Print face | Only one side/both sides |
V | WINDING UNIT |
|
38 | Winder: | one rewinder |
39 | Winder diameter: | 300MM |
40 | Effective Width: | 420MM |
41 | Banana Roller: | 1 |
42 | Winder Controlling: | BY FRICTION |
Customized shopping plastic bag making machine price
Laiwu Runhua plastic Machinery Co., Ltd is a high technology enterprise which collects departments of Reserach& Development, Production, Sales and Service. We are specialized in plastic extruder, drawing machine, film blowing machine. Our engineers and experts are available to support you oversea.
Main products: Agriculture film blown film line, Geomembrane film blowing film line, Packing film blown film line, Plastic wire drawing machine.
Our machine specialized to prodcuce various plastic wires, plastic films. The film max. width can reach 30 meters. Technology support 1-7 layer co-extrusion, able to meet various demands.
Plastic wires: round wires, flat wires, fishing nets
Plastic films: POF films, high barrier films, liner bag films , mulch film, greenhouse/agricultural film, geomembrane and other films
Address: 123#, Longtan East Street, High-tech Zone, Laiwu, Shandong, China
