HDPE LDPE LLDPE plastic extrusion blown tubular film machine
- 150 Set / Sets per Month
- QINGDAO
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High speed rotary die pe plastic blow film extrusion machine
-
PE plastic rotary die head film blowing machine
-
Double layer ldpe hdpe rotary die head film blowing machine
-
hdpe ldpe 2 layer co-extrusion rotary die film blown machine
-
Mini 3 layer blown film extrusion machine for packaging
-
HDPE LDPE three layer co-extrusion plastic film blowing machine
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Shandong, China | |
| Brand Name | RUNHUA | Model Number | 3FM1600 | |
| Voltage | 380V/3PH/50HZ | Power(W) | 110kw | |
| Dimension(L*W*H) | 9000X6500X7000 mm | Weight | 14000kg | |
| Certification | ISO9001 | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
HDPE LDPE LLDPE plastic extrusion blown tubular film machine
RUNHUA Small-sized Packaging Film Blowing Line
Film layers co extrusion: 1-7 layer
Film kinds: common film, shrink film, stretch film, high-barrier film
Film lay-flat width: 300-2500mm
Film thickness: 0.04-0.1mm
Processed material: pe, ldpe, lldpe, mpe, eva, master batch or recycled materials
Consist parts of one set machine
1. Single-screw Extruder
2. Screen changer
3. Die head
4. Air ring(cooling fan and connecting soft tube)
5. Herringbone, plugboard and sizing cage
6. Traction device
7. Rewinder device
8. Matched spare parts one set
Options:
1. Rotary die head
2. Corona treater
3. Up-blowing rotation
4. Autoloader
5. Edge recycling machine
Specification parameters for HDPE LDPE LLDPE plastic extrusion blown tubular film machine
One layer
Two layer
Type | 2FM1100-I | 2FM1300-I | 2FM1600-I | 2FM2200-I |
Max.lay-flat width(mm) | 1000 | 1200 | 1500 | 2000 |
Raw material | LLDPE, LDPE and blend compound, mPE, EVA | |||
Screw diameter(mm) | φ45/φ45 | φ45/φ45 | φ50/φ50 | φ55/φ55 |
Max. plasticizing capacity | 90Kg/h
| 90 Kg/h
| 110 Kg/h
| 150 Kg/h
|
Die diameter(mm) | φ200 | φ300 | φ350 | φ500 |
Air ring structure | Dyke and dam mode, even air structure | |||
Length of traction roller(mm) | 1100 | 1300 | 1600 | 2200 |
Traction winding speed | 3~30m/min | |||
Total power (kw) | 60 | 62 | 70 | 90 |
Overall dimension(mm) | 7000X5500X5000 | 7000X5700X5000 | 7500X6000X7000 | 7500X6600X7600 |
Weight (kg) | 10000 | 11000 | 12000 | 12500 |
Three layer
Type | 3FM1100-I | 3FM1300-I | 3FM1600-I | 3FM2200-I | |
Max.lay-flat width | 1000 | 1200 | 1500 | 2000 | |
Raw material | LLDPE, LDPE, mPE, EVA LLDPE, LDPE and blend compound, mPE, EVA | ||||
Layer number of laminating | 3 | ||||
Screw diameter | φ45/φ45/φ45 | φ45/φ45/φ45 | φ45/φ55/φ45 | φ55/φ65/φ65 | |
Max. plasticizing capacity (LDPE) | 120Kg/h
| 120 Kg/h
| 160 Kg/h
| 200 Kg/h
| |
Die diameter(mm) | φ200 | φ300 | φ350 | φ500 | |
Air ring structure | Dyke and dam mode,even air structure | ||||
Winding roller length(mm) | 1100 | 1300 | 1600 | 2200 | |
Haul-off.Wind-up speed | 3~30m/min | ||||
Total power(KW) | 90 | 92 | 110 | 135 | |
Overall dimension(mm) | 9000X5500X6500 | 9000X5700X6500 | 9000X6500X7000 | 9000X7500X8000 | |
Weight (kg) | 12000 | 12500 | 14000 | 16000 | |

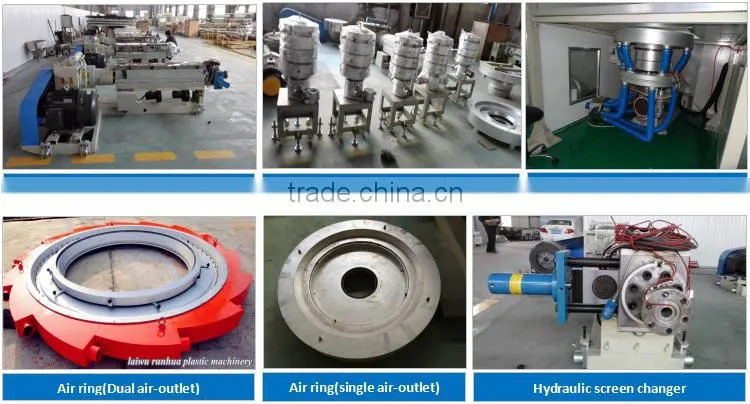

Referenced photos
Machine extruder:
Own design, screw with structure of mixer, barrier, distributing etc.
Matched with standard big power motor.
Matched with big Model gearbox
Die head:
Large-scale composite die, center-feed, multi-layer co extrusion
Matched with load-bearing car
Chrome plated and polishing treatment
Traction and Rewinder parts

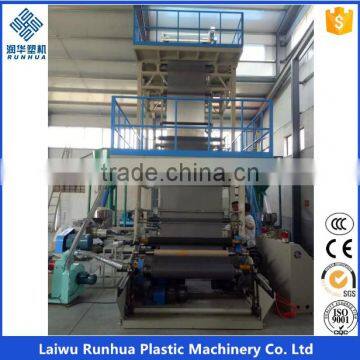

Whole machine view
The Terms and Conditions 1. Trade terms: FOB, CFR, CIF, FCA, CPT, CIP 2. Transportation way: ocean or land 3. Payment terms: 30% T/T, 30% T/T + 70% L/C, or 100% L/C(for specilized country) 4. Package: disassembled nude packing in container, accessories with stretch film packing 5. Warranty: 12 months after develiry
|
|
RFQ 1. Manufacturer or Trading Company? Manufacturer 2. Customized production or flow line production? Customized production, configuration as your specific demands 3. Provided technical support or not? We provide full set technical supports, for machine design, raw material ratio application, film economic prodution etc, engineers available for oversea installation guidance 4. Can we check running machine before order? Yes, we have domestic customers here, you can check the machine in working condition in their workshop 5. Have you exported before? We do export business since 2009, now we have already exported to Russian, Turkey, Slovenia, Japan, South and North Korea, Algeria, Argentina, Nigeria and Southeast Asia etc
|
