Plastic processed pe film making machine

Name: Plastic processed pe film making machine
Brand: RUNHUA
Price: USD $6,000 - 100,000 / Set

FOB Price

USD $6,000 - $100,000 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Qingdao
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Application:	Film	Plastic Processed:	PE
Blow Moulding Type:	Extrusion Blow Moulding	Automatic:	Yes	Place of Origin:	Shandong, China
Brand Name:	RUNHUA	Model Number:	3FM1600	Voltage:	380V/3PH/50HZ
Power(W):	110kw	Dimension(LWH):	9000X6500X7000 mm	Weight:	14000kg
Certification:	ISO9001	Warranty:	12 Months	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Plastic processed pe film making machine

Product Description

RUNHUA Small-sized Packaging Film Blowing Line

Film layers co extrusion: 1-7 layer

Film kinds: common film, shrink film, stretch film, high-barrier film

Film lay-flat width: 300-2500mm

Film thickness: 0.04-0.1mm

Processed material: pe, ldpe, lldpe, mpe, eva, master batch or recycled materials

Consist parts of one set machine

1. Single-screw Extruder

2. Screen changer

3. Die head

4. Air ring(cooling fan and connecting soft tube)

5. Herringbone, plugboard and sizing cage

6. Traction device

7. Rewinder device

8. Matched spare parts one set

Options:

1. Rotary die head

2. Corona treater

3. Up-blowing rotation

4. Autoloader

5. Edge recycling machine

6. Automatic double rewinder

7. PLC control system

Specification parameters for Plastic processed pe film making machine

Three layer

Type	3FM1100-I	3FM1300-I	3FM1600-I	3FM2200-I
Max.lay-flat width	1000	1200	1500	2000
Raw material	LLDPE, LDPE, mPE, EVA LLDPE, LDPE and blend compound, mPE, EVA
Layer number of laminating	3
Screw diameter	φ45/φ45/φ45	φ45/φ45/φ45	φ45/φ55/φ45	φ55/φ65/φ65
Max. plasticizing capacity (LDPE)	120Kg/h	120 Kg/h	160 Kg/h	200 Kg/h
Die diameter(mm)	φ200	φ300	φ350	φ500
Air ring structure	Dyke and dam mode,even air structure
Winding roller length(mm)	1100	1300	1600	2200
Haul-off.Wind-up speed	3~30m/min
Total power(KW)	90	92	110	135
Overall dimension(mm)	9000X5500X6500	9000X5700X6500	9000X6500X7000	9000X7500X8000
Weight (kg)	12000	12500	14000	16000

One layer

Two layer

Type	2FM1100-I	2FM1300-I	2FM1600-I	2FM2200-I
Max.lay-flat width(mm)	1000	1200	1500	2000
Raw material	LLDPE, LDPE and blend compound, mPE, EVA
Screw diameter(mm)	φ45/φ45	φ45/φ45	φ50/φ50	φ55/φ55
Max. plasticizing capacity	90Kg/h	90 Kg/h	110 Kg/h	150 Kg/h
Die diameter(mm)	φ200	φ300	φ350	φ500
Air ring structure	Dyke and dam mode, even air structure
Length of traction roller(mm)	1100	1300	1600	2200
Traction winding speed	3~30m/min
Total power (kw)	60	62	70	90
Overall dimension(mm)	7000X5500X5000	7000X5700X5000	7500X6000X7000	7500X6600X7600
Weight (kg)	10000	11000	12000	12500

Detail Parts

Referenced photos

Machine extruder:

Own design, screw with structure of mixer, barrier, distributing etc.

Matched with standard big power motor.

Matched with big Model gearbox

Die head:

Large-scale composite die, center-feed, multi-layer co extrusion, rotary or fixed

Matched with load-bearing car

Chrome plated and polishing treatment

Haul-off unit

One drving steel roller, one rubber driven roller

Pneumatic air cylinder control

Built-in stepwise structure haul-off tower, conveneince for operators to go up and down

Rewinder

Back-to-back type, single or double surface, fraction rewinding

Automatic roller change optional

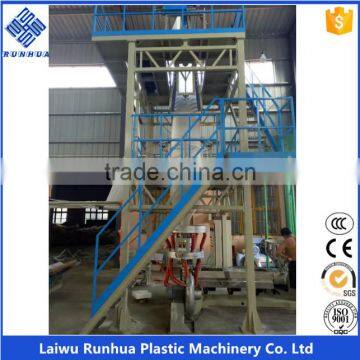

Whole machine view

Buying Guides

The Terms and Conditions

1. Trade terms: FOB, CFR, CIF, FCA, CPT, CIP

2. Transportation way: ocean or land

3. Payment terms: 30% T/T, 30% T/T + 70% L/C, or 100% L/C(for specilized country)

4. Package: disassembled nude packing in container, accessories with stretch film packing

5. Warranty: 12 months after develiry

RFQ

1. Manufacturer or Trading Company?

Manufacturer

2. Customized production or flow line production?

Customized production, configuration as your specific demands

3. Provided technical support or not?

We provide full set technical supports, for machine design, raw material ratio application, film economic prodution etc,

engineers available for oversea installation guidance

4. Can we check running machine before order?

Yes, we have domestic customers here, you can check the machine in working condition in their workshop

5. Have you exported before?

We do export business since 2009, now we have already exported to Russian, Turkey, Slovenia, Japan,

South and North Korea, Algeria, Argentina, Nigeria and Southeast Asia etc
