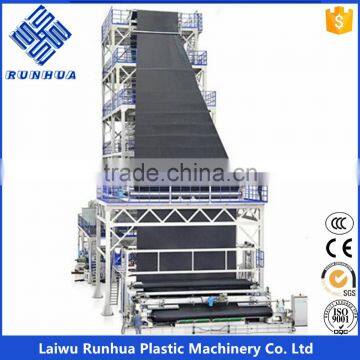

3-8m wide waterproof PE geomembrane film blowing machine
| |

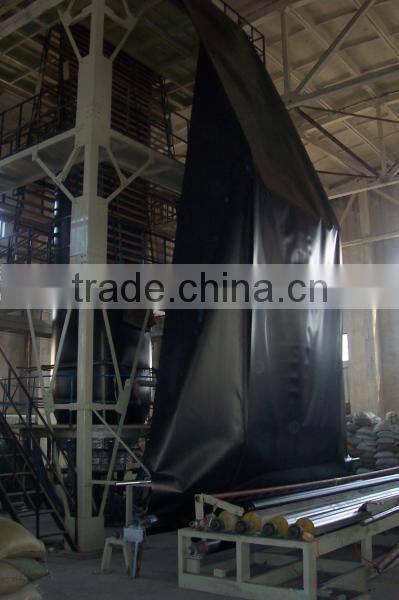

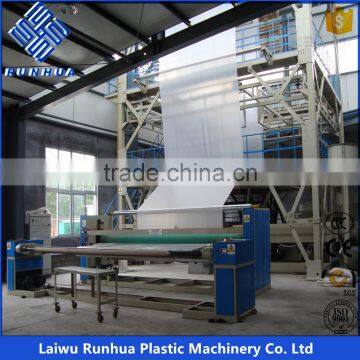

Geomembrane blown machine is one type machine which can produce geomembrane. The geomembrane produced by this machine have great horizontal and longitudinal tension, it's attribute to the reasonable blow up ration and traction speed.
The raw material of the geomembrane can be HDPE, LDPE, LLDPE, EVA. Usually people produce the geomembrane by using the compound of HDPE and LLDPE.
Laiwu Runhua is professional in blown geomembrane making machine manufacturering, the thickness our machine can make is 0.2-2.4mm, the width can reach 9.5mm. If you want to know about this machine, please feel free to contact us.
Machine Type | 3FM2800 | 3FM3500 | 3FM5000-I | 3FM5000-II | 3FM5500-I | 3FM5500-II | |
Layer of laminating | 3 layers | ||||||
Raw material | LDPE,LLDPE,EVA,mLLDPE,HDPE | ||||||
Max. Output (kg/g) | 600 | 1000 | 1500 | 1800 | 2000 | 2300 | |
Extruder | 90/30x2 120/25x1 | 120/25x2 150/30x1 | 150/30x3 | 150/30x2 180/30x1 | 180/30x3 | 180/30x3 | |
Driving power (kw) | 90x2+110 | 110x2+200 | 250x3 | 250x3+280 | 280x3 | 315x3 | |
Diameter of die (mm) | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | |
Haul-off height (mm) | 19000 | 21000 | 24000 | 24000 | 27000 | 32000 | |
Traction speed (m/min) | 3~30 | ||||||
Layflat mode | Side gusset | ||||||
Geomembrane width (mm) | 5500 | 6300 | 7000 | 8000 | 9500 | 9500 | |
Geomembrane thickness (mm) | 0.3-2.4mm | ||||||
Total power (kw) | 750 | 950 | 1400 | 1550 | 1650 | 1900 | |
Overall dimension (m) | 16x9x20 | 18x12x21 | 19x11x25 | 20x13x25 | 20x15x27 | 22x22x33 | |

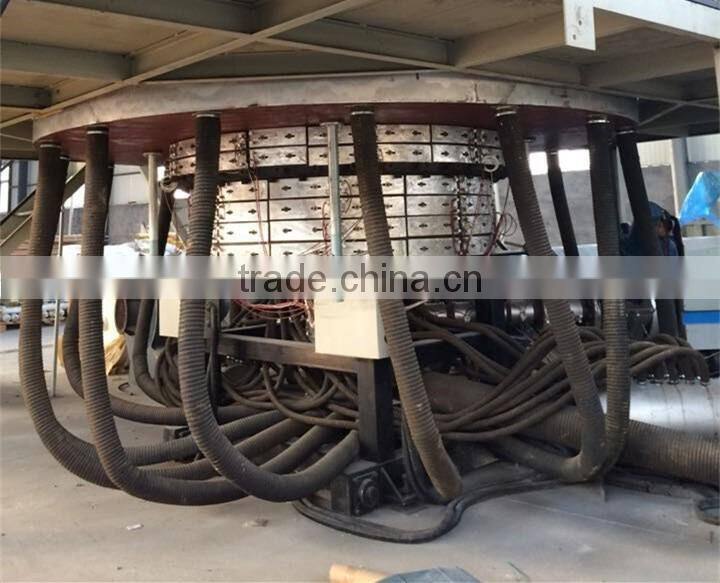

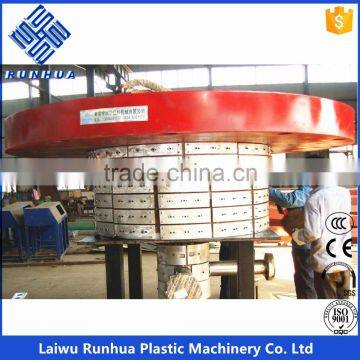

| Die head

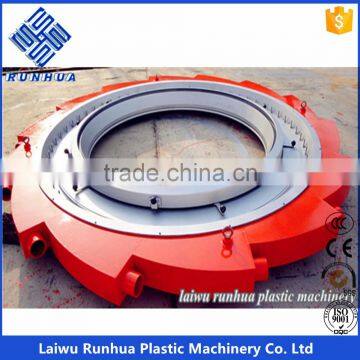

1. With IBC cooling, which can reduce the temperature of bubble quickly. 2. Air ring: dual-lip air ring 3. Die material: 42CrMo 4. With cast aluminum heater |
Extruder
1. Temperature control: automatic. Feeding zone with automatic water cooling. Barrel with air fan and cast aluminum heater to control temperature. 2. Gearbox with automatic water cooling and oil lubrication. 3. With running system to adjust the place of extruder. 4. With high speed hydraulic screen changer. | |

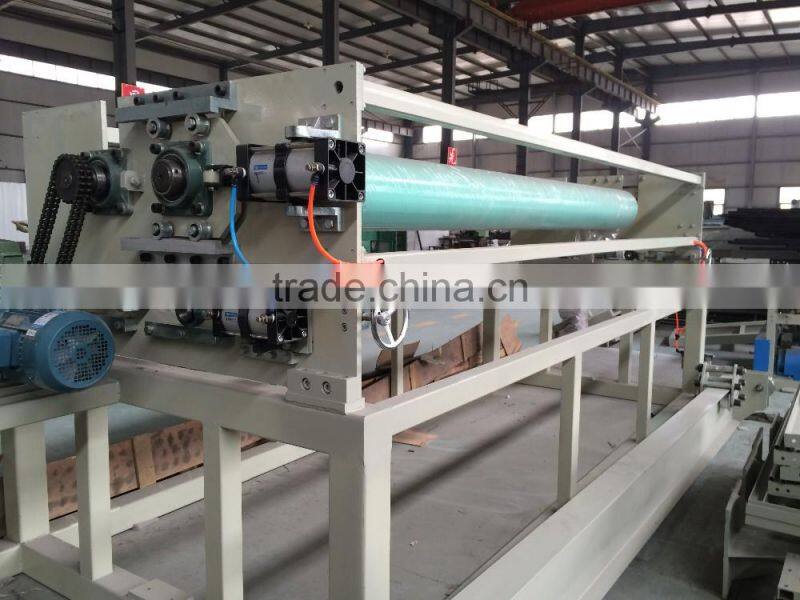

| First traction device
1. Traction speed: 1-30m/min depends the thicness of the geomembrane. 2. Traction roller: one steel roller with hard chrome plating, on NBR rubber roller,the hardness about 60 Shaw. 3. The roller's horizontal movement are controled by air cylinder, the clamp force is adjustable. |
Second traction device
1. The device can be used to guarantee the winding speed. 2. The traction rollers: the driven roller is steel roller, the passitive roller is rubber roller. The clamp force is adjustable. |
|

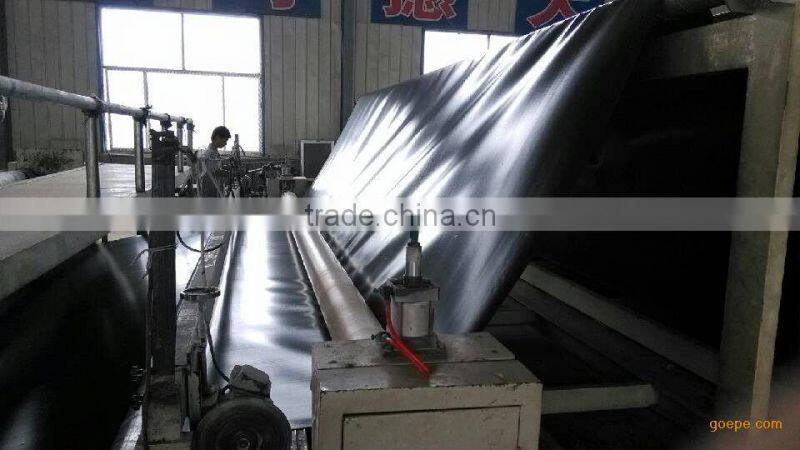

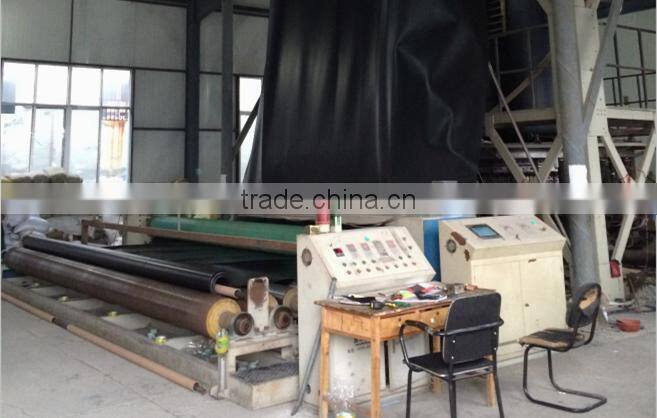

| Winding device
1. The rewinder: friction winder 2. Winding speed: 10m/min for 2.4mm geomembrane 3. Wind roller with hard chorme plating. |
Laiwu Runhua plastic Machinery Co., Ltd is a high technology enterprise which collects departments of Research& Development, Production, Sales and Service. We are specialized in plastic extruder, drawing machine, film blowing machine. Our engineers and experts have more than 20 years experiences.
Main products: Agriculture film machine, Geomembrane film machine, Packing film machine, Plastic wire drawing machine.
Our machine can prodcuce various plastic wires, plastic films. The max. width can reach 30 meters. Our machine could adopts 1-7 extruders ,can produce monolayer film and multi-layer film,can meet various needs.
Our motto: Quality comes first, Customer is the uppermost
Address: 123#, Longtan East Street, High-tech Zone, Laiwu city, Shandong Province
