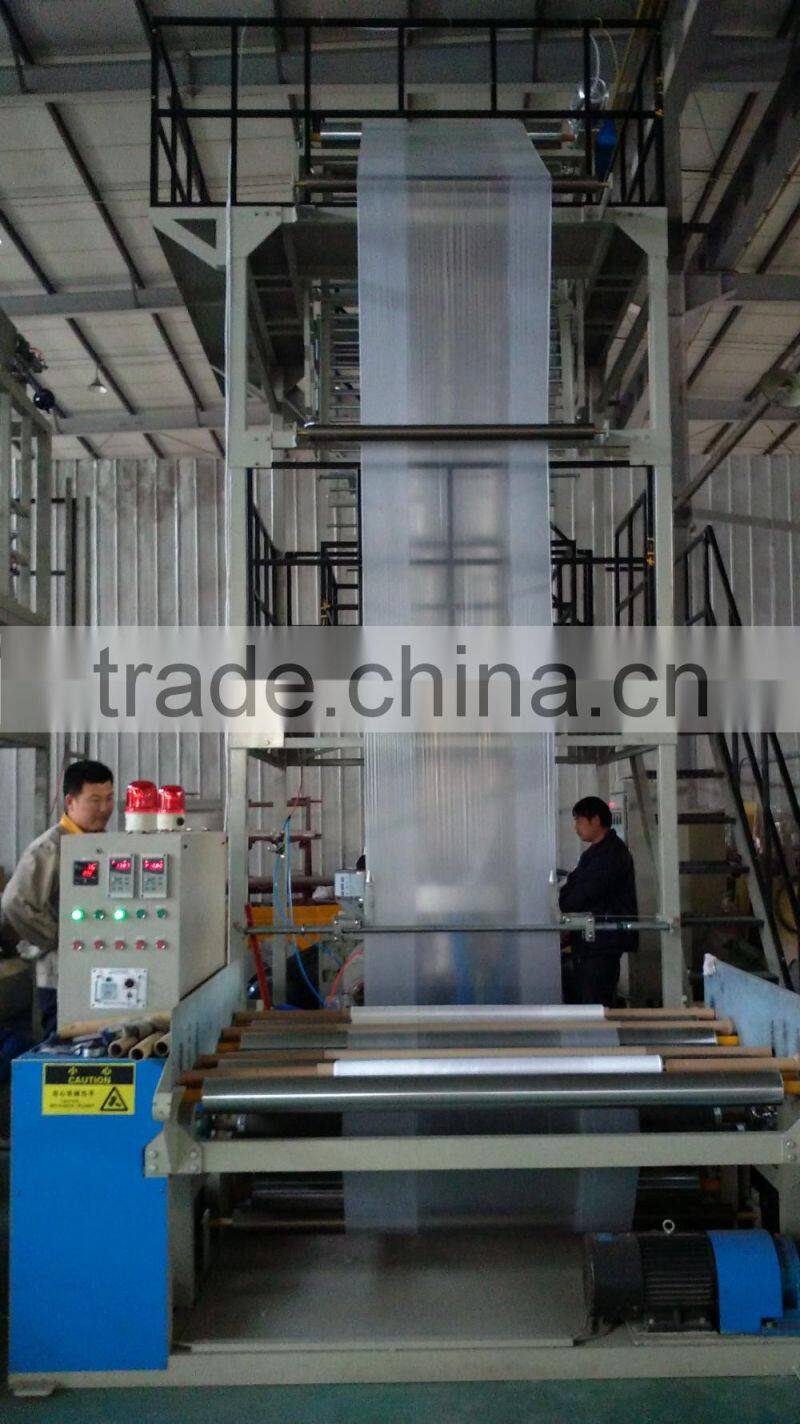

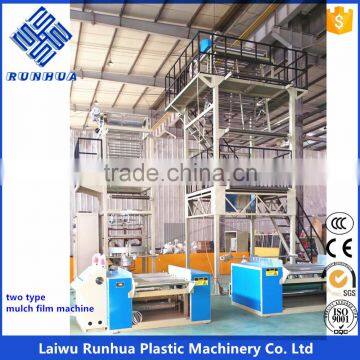

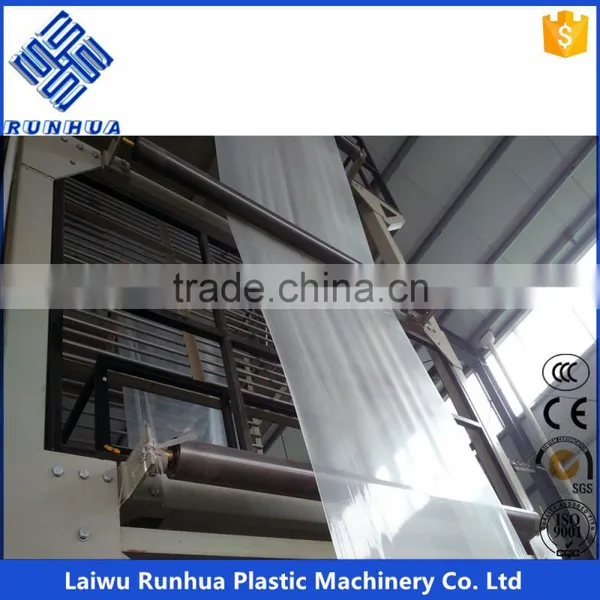

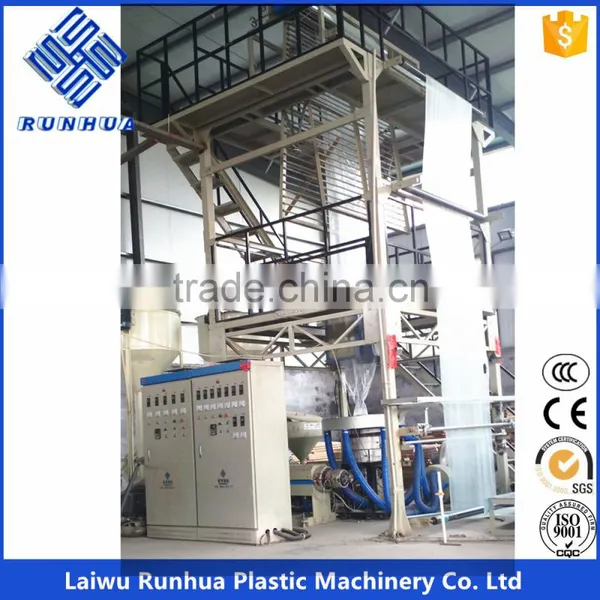

20-50 micron 1.2 meter mulch film making machine

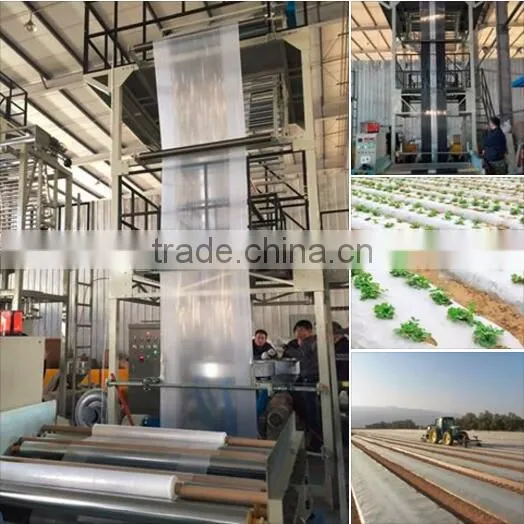

LD (L) Series Mulch/ Agricultral Blown Film lines are take 100% LLDPE or LLDPE&LDPE compound as raw material to produce mulch/ agricultural film. This lines are the crystalllization of our factory and Japan' s cooperation. It adopts the most advanced technologies in the world. The machine are high yeild, low energy consumption, goood stability and reliability. We maintain any details and optimize any parts, the machine is the most ideal equipment to produce the mulch/ agricultural films.
| |
Our advantage: 1. Unlike other film blowing machine manufacturer, our point is focus on agriculture film blowing machine, blown construction film machine, so we have accumulate a lot of related experiences. 2. As we focus on agriculture film machine, our mulch film blowing machine is very advanced in China, and can running stable, the mini. thickness we can get is 0.001mm, the max. speed we can reach is 120m/min. 3. As we use the screw, designed by ourselves, which has good plasticizing capacity, and increase the tranverse and longtitudinal stress. The mulch film produced by our machine can meet superior product of the national standard GB13735. | |
Type | LD1100 | LD1300 | PC-65 | LD2200 | LD2500 | LD2650 | LD2800 | ||
Max. film layflat width mm | 1000 | 1200 | 1500 | 2000 | 2300 | 2500 | 2600 | ||
film thickness (mm) | 0.005~0.030 | 0.006~0.030 | |||||||
Capacity (kg/h) | 50 | 52 | 110 | 130 | 180 | 220 | 240 | ||
Raw material | Virgin LLDPE LDPE LLDPE&LDPE blend compound | ||||||||
Screw diameter (mm) | 45 | 50 | 65 | 75 | 75 | 90 | 90 | ||
Screw L/D ratio | 30 | 30 | 30 | 30 | 30 | 30 | 30 | ||
Max. screw speed r/min | 130 | 130 | 140 | 105 | 110 | 120 | 120 | ||
Main motor mode | Frequency—conversion speed--regulating | ||||||||
Main motor power (kw) | 15 | 18.5 | 37 | 45 | 55 | 75 | 90 | ||
Die structure | Spiral die , central feeding | ||||||||
Max. traction speed (m/min) | 120 | 120 | 120 | 120 | 100 | 80 | 80 | ||
Total power (kw) | 28 | 32.5 | 72 | 80 | 88 | 105 | 180 | ||
Overall dimension (m) | 6.2X2.3X5 | 6.4X2.5X5 | 6.6X3X6.8 | 7.5X2.5X7.7 | 7.8X3.2X10.5 | 8X3.5X 10.5 | 13X4X 19 | ||
Weight (t) | 5.2 | 5.5 | 6.5 | 8.5 | 16 | 19.5 | 21 | ||
Note: Not all parameters can be seen for various types of our machine.

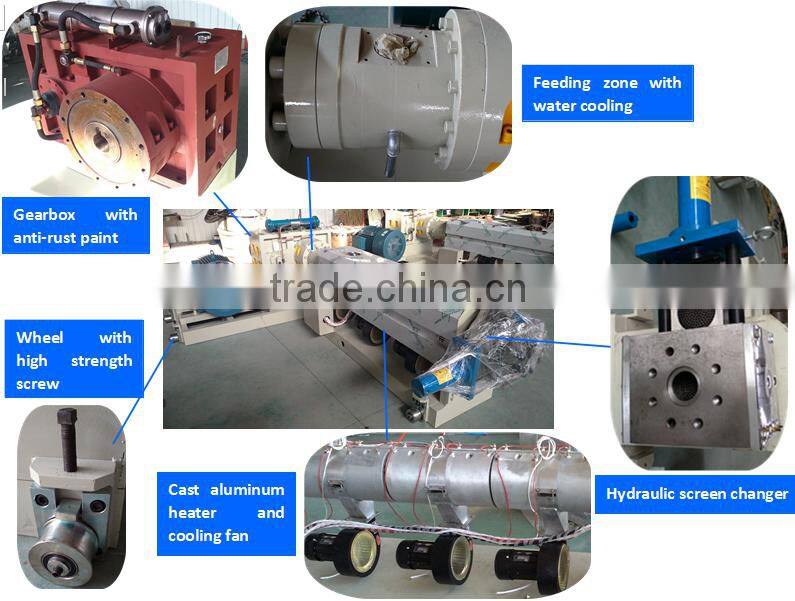

| Extruder |
|

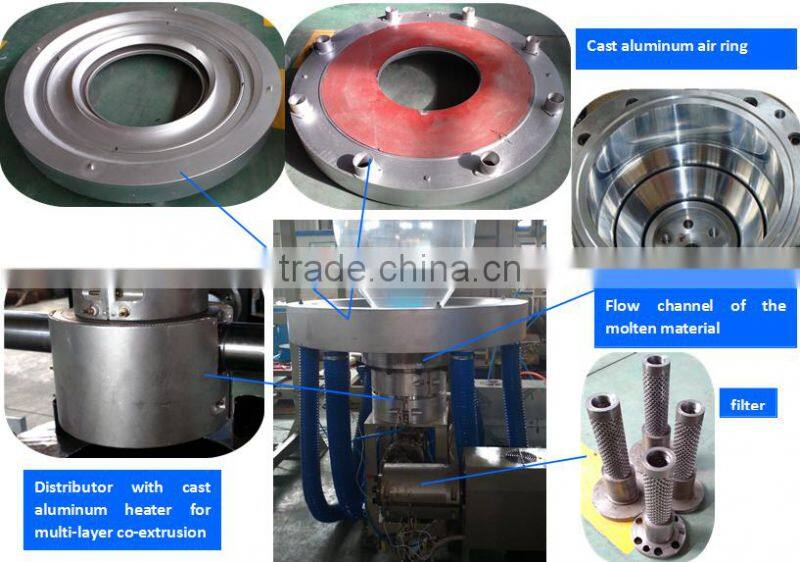

| Die head |
|

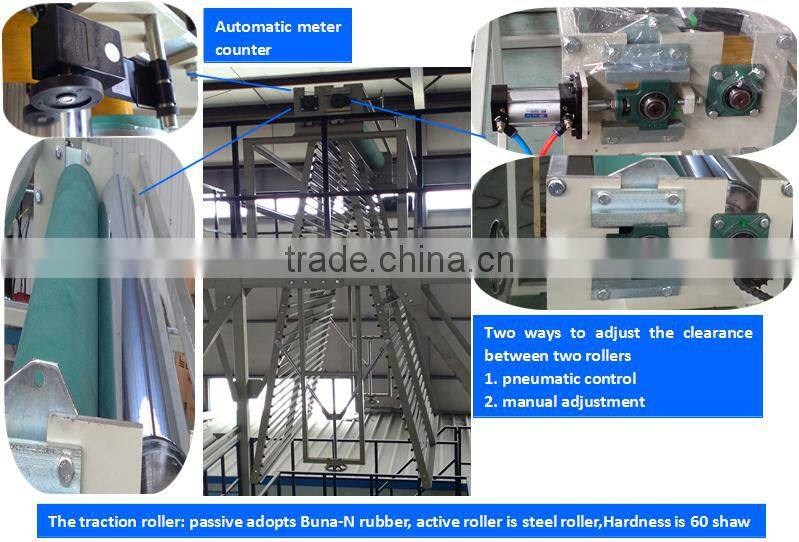

| First traction system |
|
| 8 rollers friction winding |
|
Why choose us?
The first reason is good quality, second good quality, third still good quality

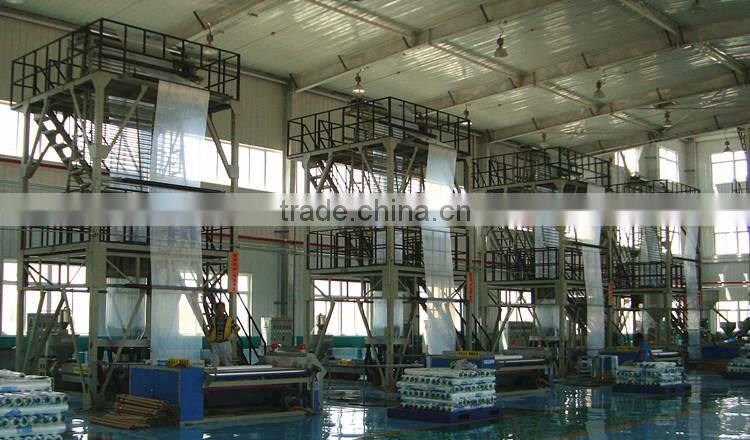

We are professional in manufacturing agriculture film blowing machine, most of PO greenhouse film blowing machine in China are produced by us, once our client buy our machine they will never change supplier.
How could we reach this high level?
Focus.
We focus on film blowing machine, especially in agriculture film blowing machine, that's why we are the best greenhouse film blowing machine.
It is no exaggeration to say our agricultural film blowing machine is most advanced in China and also in the lead of the world.
Our service
Laiwu Runhua plastic Machinery Co., Ltd is a high technology enterprise which collects departments of Reserach& Development, Production, Sales and Service. We are specialized in plastic extruder, drawing machine, film blowing machine. Our engineers and experts have more than 20 years experiences.
Main products: Agriculture film machine, Geomembrane film machine, Packing film machine, Plastic wire drawing machine.
Our machine can prodcuce various plastic wires, plastic films. The max. width can reach 24 meters. Our machine could adopts 1-7 extruders ,can produce monolayer film and multi-layer film,can meet various needs.
Plastic wires: round wires, flat wires, tearing films

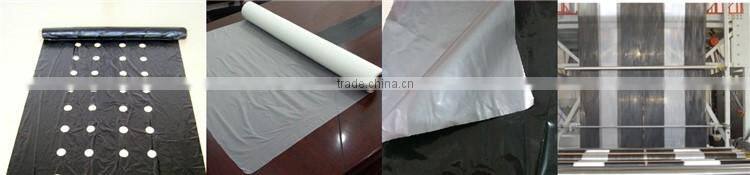

Plastic films: POF films, high barrier films, liner bag films , mulch film, greenhouse film, geomembrane and other films
Our motto: Quality comes first, Customer is the upermost
Address: 123#, Longtan East Street, High-tech Zone, Laiwu city, Shandong Province
