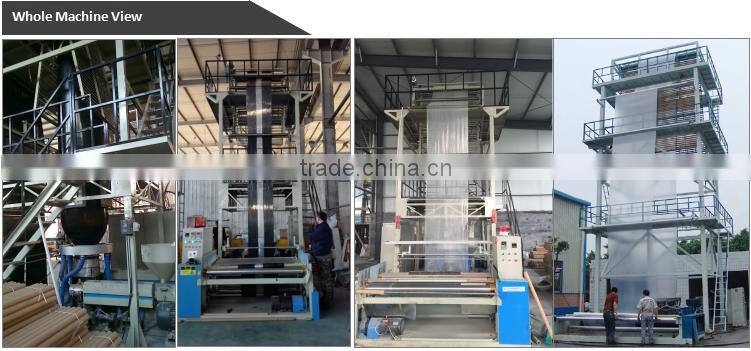

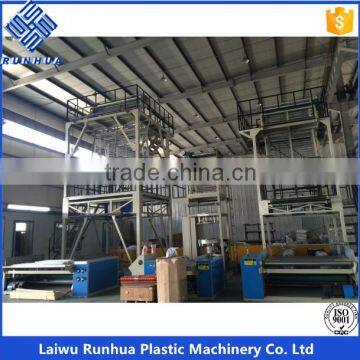

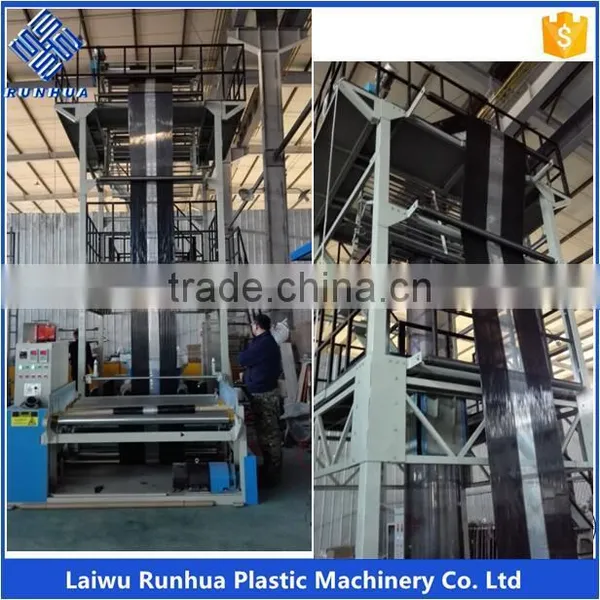

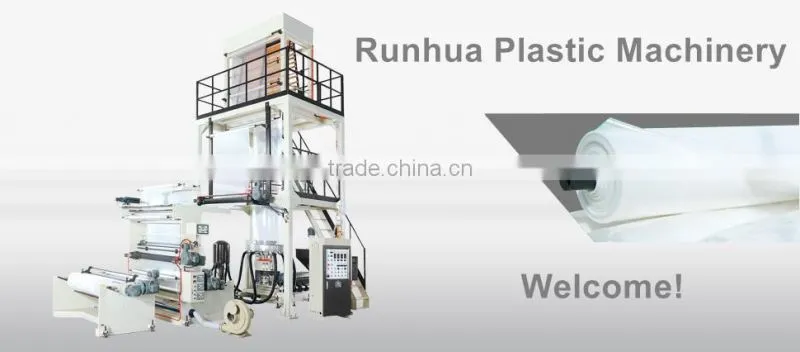

2 layer lldpe agricultural mulch film machine
RUNHUA Mulch Film Blowing Line Film wide range: 0.5-3meters Film thickness: 0.005-0.005 BUR: 2.5-3.2 Film layers co extrusion: 1-4 layer Processed material: lldpe, ldpe, biodegradable materials, master batch or recycled materials | |
Consist parts of one set machine 1. Single-screw Extruder 2. Screen changer 3. Die head 4. Air ring(cooling fan and connecting soft tube) 5. Collapser and sizing cage 6. Haul-off device 7. Rewinder device 8. Matched spare parts one set | |
Feature: 1. Suitable for produce agriculture film of 100% LLDPE or LLDPE mix with other raw material 2. Adopt the most newly advanced technology as heat flow way, extrude to shape film,special for mulch air ring 3. Extruder adopts wavy screw, with oblique barrier and the mixing screw head, stable function, reliable, high-output and low energy consumption. 4. Has the character of good plasticize, high physical and mechanical performance, strong tear resistance. 5. The die adopts central feeding spiral channel forming technology, machinning centre processed.
| |
| Model | LD1100 | LD1300 | PC-65 | LD2200 | LD2500 | LD2600 | LD2800 |
| Film width(mm) | 1100 | 1200 | 1500 | 2000 | 2300 | 2500 | 2600 |
| Film thickn | 0.005-0.008mm | 0.006-0.009mm | |||||
| Raw material | ldpe, lldpe, master batch, recycled materials | ||||||
Screw diameter(mm) | 45 | 50 | 55/65 | 65 | 75 | 75 | 90 |
| Screw L/D ratio | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Max screw rotating speed | 140 | 130 | 130 | 130 | 110 | 110 | 100 |
| Main motor mode(KW) | 15 | 18.5 | 30/37 | 37 | 55 | 55 | 75 |
| Die lip diameter(mm) | 200 | 250 | 300 | 400 | 450 | 500 | 500 |
| Haul-off speed(m/min) | 120 | 120 | 120 | 120 | 100 | 80 | 80 |
| Nip roller width(mm) | 1100 | 1300 | 1700 | 2200 | 2500 | 2600 | 2800 |
| Winding roller width(mm) | 1100 | 1300 | 1700 | 2200 | 2500 | 2600 | 2800 |
| Total power(kw) | 28 | 32.5 | 72 | 80 | 88 | 105 | 180 |
| Overall dimension(m) | 6.2X2.3X5 | 6.4X2.5X5 | 6.6X3X6.8 | 7.5X2.5X7.7 | 7.8X3.2X10.5 | 8X3.5X10.5 | 13X4X19 |
| Weight(KG) | 5200 | 5500 | 6500 | 8500 | 16000 | 19500 | 21000 |
Own design, screw with structure of mixer, barrier, distributing etc.
Matched with standard big power motor.
Matched with big Model gearbox

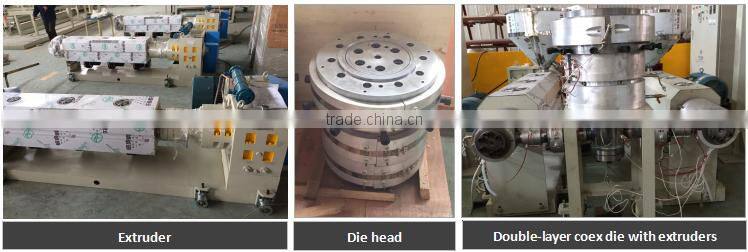

Die head:
Large-scale composite die, center-feed, multi-layer co extrusion
Matched with load-bearing car
Chrome plated and polishing treatment

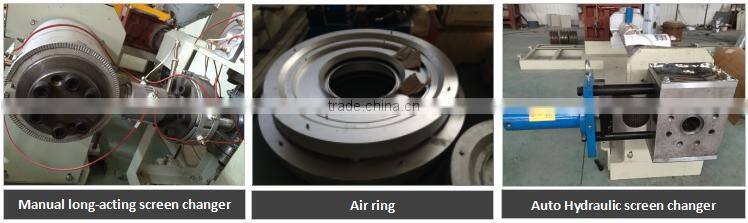

Cylindrical long-acting screen changer: low cost, manual change, machine stop necessary each time.
One steel roller, one nitrile rubber roller
Pneumatic comtrol by air cylinder
Roller with hard chrome plated, corrosion-resistance
Traction motor frequency control
Steel frame herringbone, galvanized steel pipe

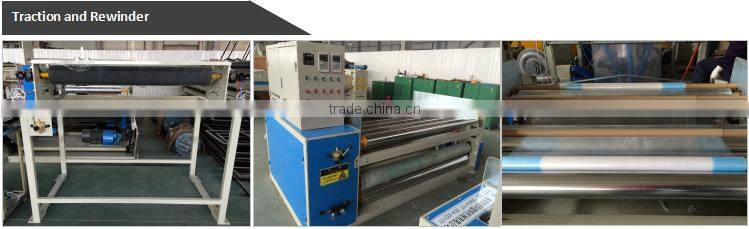

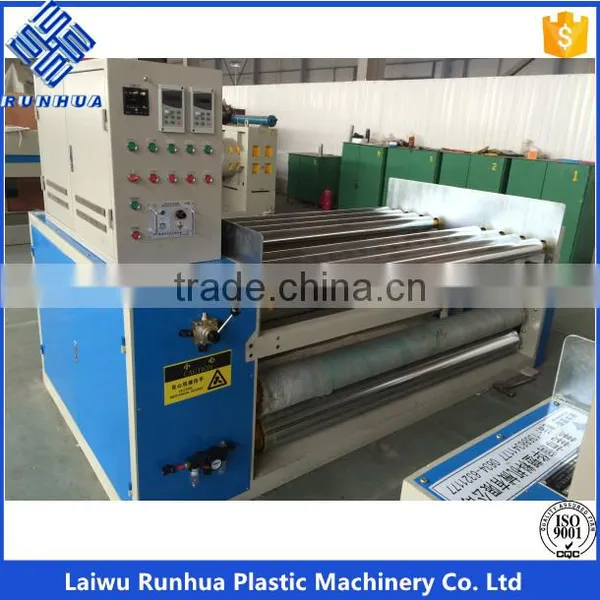

Rewinder device
Even 8 rollers, 2 film rollers winding each time

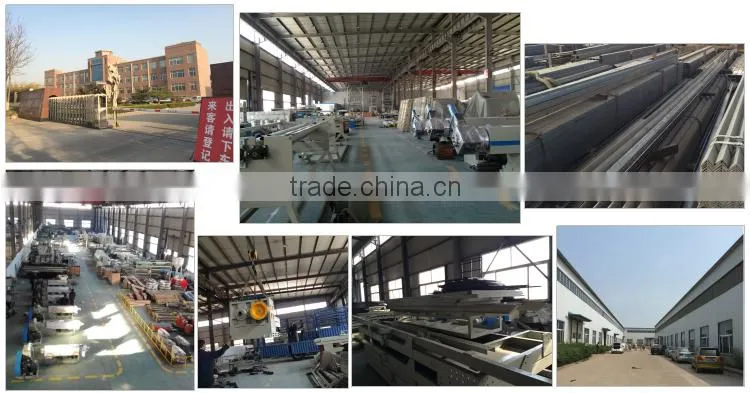

Factory Location Laiwu, Shandong, China
Nearest Airport: Jinan Yaoqiang International Airport
Nearest High-speed Rail Station: Tai’an Station
Welcome your visiting! | |
The Terms and Conditions 1. Trade terms: FOB, CFR, CIF, FCA, CPT, CIP 2. Transportation way: ocean or land 3. Payment terms: 30%T/T + 70%T/T, 30%T/T + 70%L/C, or 100% L/C(for specilized country) 4. Package: disassembled nude packing in container, accessories with stretch film packing 5. Warranty: 12 months after develiry 6. Engineers available for oversea installation direction. 7. Shipment: by sea, by land, by air |
|
RFQ 1. Manufacturer or Trading Company? Manufacturer 2. Customized production or flow line production? Customized production, configuration as your specific demands 3. Provided technical support or not? We provide full set technical supports, for machine design, raw material ratio application, film economic prodution etc, engineers available for oversea installation guidance 4. Can we check running machine before order? Yes, we have domestic customers here, you can check the machine in working condition in their workshop 5. Have you exported before? We do export business since 2009, now we have already exported to Russian, Turkey, Slovenia, Japan, South and North Korea, Algeria, Argentina, Nigeria and Southeast Asia etc |
