ABC 3 layer ldpe 8m wide greenhouse film blowing machine

Name: ABC 3 layer ldpe 8m wide greenhouse film blowing machine
Brand: RUNHUA
Price: USD $50,000 - 150,000 / Set

FOB Price

USD $50,000 - $150,000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Qingdao
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Application:	Film	Plastic Processed:	PE
Blow Moulding Type:	Extrusion Blow Moulding	Automatic:	No	Place of Origin:	Shandong, China
Brand Name:	RUNHUA	Model Number:	3FM2800	Voltage:	380V/3PH/50HZ
Power(W):	660kw	Dimension(LWH):	14000x9000 x17500mm	Weight:	66 Ton
Certification:	ISO, SGS	Warranty:	12 Months	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

ABC 3 layer ldpe 8m wide greenhouse film blowing machine

Greenhouse Film Blowing Machine made by RUNHUA Company had already successfully widely used by domestic large-scale manufacturer, such as Baishan Xifeng Plastic Limited Liability Company, Tianjin plastic Science & Technology Group Co.,Ltd, Beijing Huadun Snow Plastic Group etc. Therefore, many times win the large-scale bidding projects, such as CNPC, SINOPEC, Agricultural Bureau of middle west each provinces etc. Due to the improvement of longitudinal and transverse strength, agricultural film made by us enjoying good adaptation to severe weather.

Product Description

RUNHUA Greenhouse Film Blowing Line

Film width range: 3-22meters(unfold wide)

Film thickness: 0.05-0.2mm

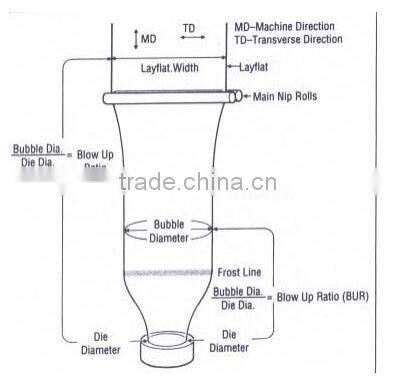

BUR: 1.3-2.6

Film layers co extrusion: 1-5 layer

Processed material: pe, ldpe, lldpe, mpe, eva, master batch or recycled materials

Film function: anti-uv, anti-fogging, anti-dripping

Consist parts of one set machine

1. Single-screw Extruder

2. Screen changer

3. Die head

4. Air ring(cooling fan and connecting soft tube)

5. Herringbone, plugboard and sizing cage

6. First haul-off unit

7. Second haul-off unit

8. Rewinder device

9. IBC inner cooling of film bubble

10. Electric control system

11. Matched spare parts one set

Machine parameter

MODEL	3FM3200	3FM2800	3FM3000	3FM3500	3FM4500	3FM5000
Max. Unfolding Width(mm)	6000	8000	10000	12000	14000	16000
Film thickness(mm)	0.05-0.2mm
Traction/Rewinding roller length(mm)	3200	2800	3000	3500	4500	5000
Raw material	LDPE, LLDPE, HDPE, mPE, EVA, master batch and compound or recycled material
Diameter of air ring(mm)	3200	3500	3800	4000	4200	4500
Die diameter(mm)	1000	1100	1450	1600	1900	2300
Traction&winding speed	3-30(m/min)
Extruder	SJ-90/30 X3	SJ-90/30 x2 SJ-120/30	SJ-120/30x3	SJ-135/30 x2 SJ-150/30 X1	SJ-180/30 x1 SJ-150/30 X2	SJ-180/30 x2 SJ-200/30
Extruder driving power(KW)	90x3	90x2, 132x1	132x3	280x1 200x2	280x1 315x1	315x2 375x1
Traction height(mm)	17000	17500	19000	22000	24000	26000
Wind-up method	Even 8 rollers winding			Double-station back-to-back type winding
Lay-flat mode	Side gusset or inverted triangular frame
Total power(kw)	600	660	700	900	1200	1500
Overall dimension(mm)	13000X9000 X17500	14000x9000 x17500	13000X9000 X19300	14000X10000 X22000	14000X11000 X24000	14000X12000 X26000
IBC Cooling	Die head film bubble inner cooling system

Machine consist part

· Screw and barrel are designed to adopt the special compounding function to melt at high speed and homogeneous, also get greater output.

· Spiral flow channel die is designed to stabilize melt flow. Optional rotating device is chosen and helpful to eliminate gauge band on the web.

· Air/ water rings are alum-alloyed special design for providing excellent and stable cooling. The combination of air and water cooling rings for water output and air blow stably working together, which results in excellent film transparency, film surface is evenly and glossy.

· Take-off unit allows adjustment to the proper height and provides effective film cooling.

· A variety of winders including manual, 2 bobbin type, 4 bobbin type, back to back winder with computerized tension control for high quality film. Computerized speed control system of take-off and winding units will provide precise winding quality, won' t cause tensile or broken of film.

Buying Guides

The Terms and Conditions

1. Trade terms: FOB, CFR, CIF, FCA, CPT, CIP

2. Transportation way: ocean or land

3. Payment terms: 30%T/T + 70%T/T, 30%T/T + 70%L/C, or 100% L/C(for specilized country)

4. Package: disassembled nude packing in container, accessories with stretch film packing

5. Warranty: 12 months after develiry

6. Engineers available for oversea installation direction.

7. Shipment: by sea, by land, by air

RFQ

1. Manufacturer or Trading Company?

Manufacturer

2. Customized production or flow line production?

Customized production, configuration as your specific demands

3. Provided technical support or not?

We provide full set technical supports, for machine design, raw material ratio application, film economic

prodution etc, engineers available for oversea installation guidance

4. Can we check running machine before order?

Yes, we have domestic customers here, you can check the machine in working condition in their workshop

5. Have you exported before?

We do export business since 2009, now we have already exported to Russian, Turkey, Slovenia, Japan,

South and North Korea, Algeria, Argentina, Nigeria and Southeast Asia etc

Workshop

Factory Location

Laiwu, Shandong, China

Nearest Airport:

Jinan Yaoqiang International Airport

Nearest High-speed Rail Station:

Tai’an Station

Welcome your visiting!
