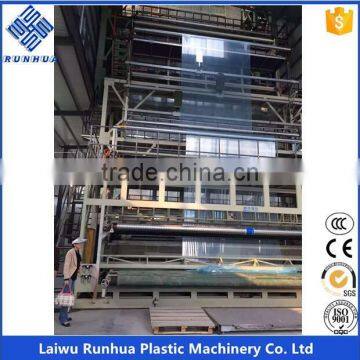

3 layer anti-fog greenhouse pe film blowing machine

Name: 3 layer anti-fog greenhouse pe film blowing machine
Brand: RUNHUA
Price: USD $120,000 - 290,000 / Set

FOB Price

USD $120,000 - $290,000 / Set

1 Set(Min.Order)

Supply Ability 120 Set / Sets per Month
Port Qingdao
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Application:	Film	Plastic Processed:	PE
Blow Moulding Type:	Extrusion Blow Moulding	Automatic:	Other, Semi auto	Place of Origin:	Shandong, China
Brand Name:	RUNHUA	Model Number:	3FM3000	Voltage:	380V/3PH/50HZ
Power(W):	700kw	Dimension(LWH):	13000X9000 X19300mm	Weight:	about 66T
Certification:	ISO	Warranty:	12 Months	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

3 layer anti-fog greenhouse pe film blowing machine

The PE Greenhouse Film Blowing Machine made by RUNHUA Company had already successfully widely used by domestic large-scale manufacturer, such as Baishan Xifeng Plastic Limited Liability Company, Tianjin plastic Science & Technology Group Co.,Ltd, Beijing Huadun Snow Plastic Group etc. Therefore, many times win the bidding of large-scale bidding projects, such as CNPC, SINOPEC, Agricultural Bureau of middle west each provinces etc. Due to the improvement of longitudinal and transverse strength, agricultural film made by us enjoying good adaptation to severe weather.

Product Description

RUNHUA Greenhouse Film Blowing Line

Film width range: 3-22meters(unfolding wide)

Film thickness: 0.05-0.2mm

BUR: 1.3-2.6

Film layers co extrusion: 1-5 layer

Processed material: pe, ldpe, lldpe, mpe, eva, master batch or recycled materials

Film function: anti-uv, anti-fogging, anti-dripping

Consist parts of one set machine

1. Single-screw Extruder

2. Screen changer

3. Die head

4. Air ring(cooling fan and connecting soft tube)

5. Herringbone, plugboard and sizing cage

6. First traction device

7. Second traction device

8. Rewinder device

9. IBC inner cooling of film bubble

10. Matched spare parts one set

Technical data for 3 layer anti-fog greenhouse pe film blowing machine

MODEL	3FM3200	3FM2800	3FM3000	3FM3500	3FM4500	3FM5000
Max. Unfolding Width(mm)	6000	8000	10000	12000	14000	16000
Film thickness(mm)	0.05-0.2mm
Traction/Rewinding roller length(mm)	3200	2800	3000	3500	4500	5000
Raw material	LDPE, LLDPE, HDPE, mPE, EVA, master batch and compound or recycled material
Diameter of air ring(mm)	3200	3500	3800	4000	4200	4500
Die diameter(mm)	1000	1100	1450	1600	1900	2300
Traction&winding speed	3-30(m/min)
Extruder	SJ-90/30 X3	SJ-90/30 x2 SJ-120/30	SJ-120/30x3	SJ-135/30 x2 SJ-150/30 X1	SJ-180/30 x1 SJ-150/30 X2	SJ-180/30 x2 SJ-200/30
Extruder driving power(KW)	90x3	90x2, 132x1	132x3	280x1 200x2	280x1 315x1	315x2 375x1
Traction height(mm)	17000	17500	19000	22000	24000	26000
Wind-up method	Even 8 rollers winding			Double-station back-to-back type winding
Lay-flat mode	Side gusset or inverted triangular frame
Total power(kw)	600	660	700	900	1200	1500
Overall dimension(mm)	13000X9000 X17500	14000x9000 x17500	13000X9000 X19300	14000X10000 X22000	14000X11000 X24000	14000X12000 X26000
IBC Cooling	Die head film bubble inner cooling system

Detailed Images

Machine extruder:

Own design, screw with structure of mixer, barrier, distributing etc.

Matched with standard power motor.

Matched with standard Model gearbox

Die head:

Large-scale composite die, center-feed, multi-layer co extrusion

Matched with load-bearing car

Chrome plated and polishing treatment

Cylindrical hydraulic screen changer: auto quick screen change, no need machine halt

Cylindrical long-acting screen changer: low cost, manual change, machine stop necessary each time.

Take-up device

Nip rollers: one steel material, one rubber material

Nip roller open and close way: pneumatic

Collapser and Gussets

To fold film to your ideal wdith size

Inverted Triangular fold device

Fold film 8 times, to get your needed size of film winding.

Rewinder device:

Overturn type, surface fraction, center-rewinding
Torque motor
Rewinder roller with hard chrome plated, excelent corrosion resistance

Various greenhouse application

Buying Guides

The Terms and Conditions

1. Trade terms: FOB, CFR, CIF, FCA, CPT, CIP

2. Transportation way: ocean or land

3. Payment terms: 30%T/T + 70%T/T, 30%T/T + 70%L/C, or 100% L/C(for specilized country)

4. Package: disassembled nude packing in container, accessories with stretch film packing

5. Warranty: 12 months after develiry

6. Engineers available for oversea installation direction.

7. Shipment: by sea, by land, by air

RFQ

1. Manufacturer or Trading Company?

Manufacturer

2. Customized production or flow line production?

Customized production, configuration as your specific demands

3. Provided technical support or not?

We provide full set technical supports, for machine design, raw material ratio application, film economic

prodution etc, engineers available for oversea installation guidance

4. Can we check running machine before order?

Yes, we have domestic customers here, you can check the machine in working condition in their workshop

5. Have you exported before?

We do export business since 2009, now we have already exported to Russian, Turkey, Slovenia, Japan,

South and North Korea, Algeria, Argentina, Nigeria and Southeast Asia etc
