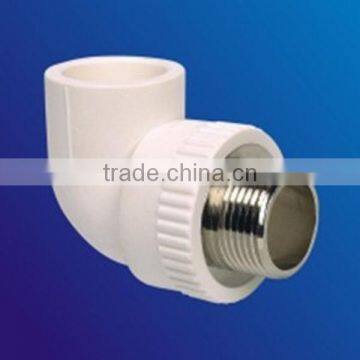

PPR Pipe Fittings Brass Ball Valve

PPR water pipe description

The quality of our PPR Pipes is entirely up to the standard of DIN8077/8078 of Germany. Its raw materials, a propylene random copolymer, are imported from Korea. Featured by excellent cleanness, cost effectiveness, applicability and advantage in safety, PPR Pipes is considered as the optimal pipe material for cold and hot water system, water purifying engineering, underground hating system for wooden floor, chemical pipe works and so on.

Dimension of  PPR Water Pipe

	PPR Water Pipe for Cold Water		PPR Water Pipe for Hot Water
Outer  Diameter (mm)	PN 1.25MPa	PN 1.6MPa	PN 2.0MPa	PN 2.5MPa
	Wall Thickness (mm)	Wall Thickness (mm)	Wall Thickness (mm)	Wall Thickness (mm)
20mm	2.0mm	2.3mm	2.8mm	3.4mm
25mm	2.3mm	2.8mm	3.5mm	4.2mm
32mm	2.9mm	3.6mm	4.4mm	5.4mm
40mm	3.7mm	4.5mm	5.5mm	6.7mm
50mm	4.6mm	5.6mm	6.9mm	8.3mm
63mm	5.8mm	7.1mm	8.6mm	10.5mm
75mm	6.8mm	8.4mm	10.3mm	12.5mm
90mm	8.2mm	10.1mm	12.3mm	15.0mm
110mm	10.0mm	12.3mm	15.1mm	18.3mm
160mm	14.6mm	17.9mm	21.9mm	26.0mm

 Packaging Details:  Inner packing and outer carton
 Delivery Detail: 20-25 days after receiving deposit

1) PP-R pipe and fitting system both for cold and hot water

2) High temperature, high pressure resistance and good resistance to chemical corrosion

3) Long service life, healthy , non-toxic , sanitary and recyclable

4) Hot welding connection adopted, making pipes and fittings into a whole, leakage effectively prevented

5) Low noise, reduced by 40% compared to common pipes

6) Light weight , easy to handle and transport

WHY CHOOSE US

• Autonomous production---we produce products with excellent quality and competitive price
• High Visibility--- We have customers from over 70 countries and religions all over the world, knowing the market well.
• After sales support---- After sales service will be highly satisfied

 G And N Fortune China Limited was founded in 1996, professional manufacturer of NFT hydroponic systems, PPR pipe and fittings, pvc pipe and fittings etc., with 55 automated assembly lines, 8 national patents and best service with professional sales team.Our products have been exported to more than 70 countries and regions, And the annual ouyput value up to $30,000,000.

For more details of brass ball valve, please feel free to contact us, solutions will be provided within 24 hours.  Thank you!
