steel wire rope hydraulic press machine
Product Description
1.Steel Wire Rope Hydraulic Press Machine
2. High junction strength and large working load limited
3. excellent cauterization resistance
4. advanced procession and efficiency
5. good solution to rigging works with limited working space
6. widely used in mine, metallurgy, wharf, railway, electrics, steel, transportation and so on
7. save wire rope cost and ensure the exact length
XT-200 Specification:
| Mode NO. | XT-100 | XT-200 | XT-300 | XT-350 | XT-500 | XT-800 | XT-1000 |
| Max press power(KN) | 1000 | 2000 | 3000 | 3500 | 5000 | 8000 | 10000 |
| Max wire rope diameter(mm) | 13 | 20 | 24 | 26 | 32 | 42 | 52 |
Max working pressure(Mpa) | 28 | 28 | 58 | 28 | 28 | 28 | 28 |
| Max piston movement(mm) | 78 | 78 | 80 | 80 | 120 | 180 | 180 |
| Power(KW) | 4 | 4 | 4 | 5.5 | 11 | 15 | 18 |
| Voltage(HZ) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Total length(mm) | 1200 | 1200 | 1200 | 1200 | 1600 | 2000 | 2350 |
| Total width(mm) | 500 | 600 | 650 | 650 | 680 | 1000 | 1250 |
| Total height(mm) | 1150 | 1220 | 1250 | 1250 | 1800 | 2000 | 2250 |
| up speed(mm/sec) | 8 | 6.5 | 4.5 | 4.8 | 4.5 | 5 | 3.7 |
| down speed(mm/sec) | 10 | 8 | 4.5 | 7.8 | 8 | 8 | 7.5 |
| Net weight(kg) | 900 | 1000 | 1000 | 1000 | 3000 | 5400 | 7000 |
Produce process:
Packaging & Shipping
Packages:
packing in wooden box or by sheet
Company Information

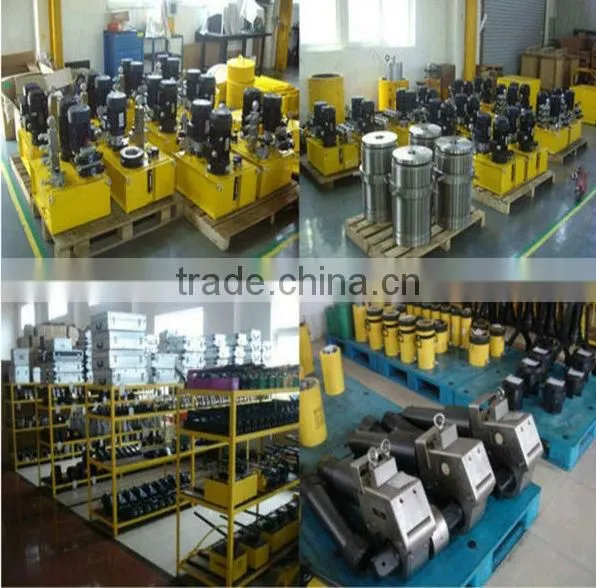

Our factory:

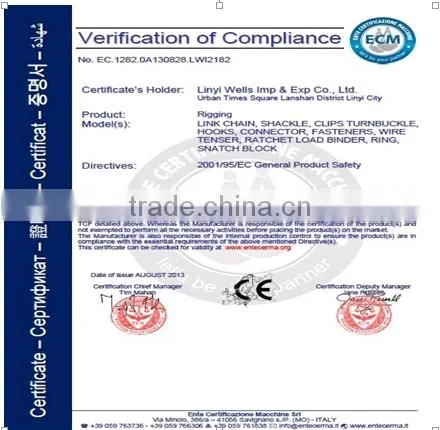

Our CE:
