Specifications
500w high power led1.Bridgelux, Epistar, Epiled Etc.
2.luminous flux 8000-9000lm
3.warranty 2 years
4.CE&ROHS
High bright led light diode white 500w
Parameter
Product | Color | Forward Current(mA) | Working voltage(v) | Wavelength (nm)/TC(k) | Luminance(LM) | Viewing angle |
500w high power led | Red | 3500 | 20.0-25 | 620-630 | 3500-5000 | 120±5° |
Yellow | 3500 | 20.0-25.0 | 585-595 | 3500-5000 | 120±5° | |
Blue | 3500 | 32-34 | 460-470 | 1000-2000 | 120±5° | |
Green | 3500 | 32-34 | 520-530 | 5000-7000 | 120±5° | |
White | 3500 | 32-34 | 6000-6500 | 8000-9000 | 120±5° | |
WW | 3500 | 32-34 | 3000-3500 | 8000-9000 | 120±5° |
Features
1.The high power led lamp use high-quality material.
2.Safe product with low working voltage.
3.Can be multiplied the colors such as red, yellow, green, blue,white, orange, purple and so on, which can make the lighting effect more attractive.
4.Storage Temperature(°C): -40 to +100.
5.Operating Temperature(°C):-30 to +55(for red yellow), -40 to +55(for blue green white).

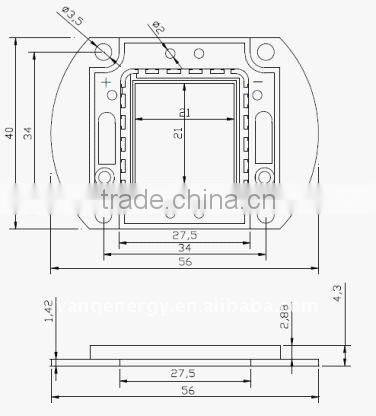

Drawing of 500w high power LED

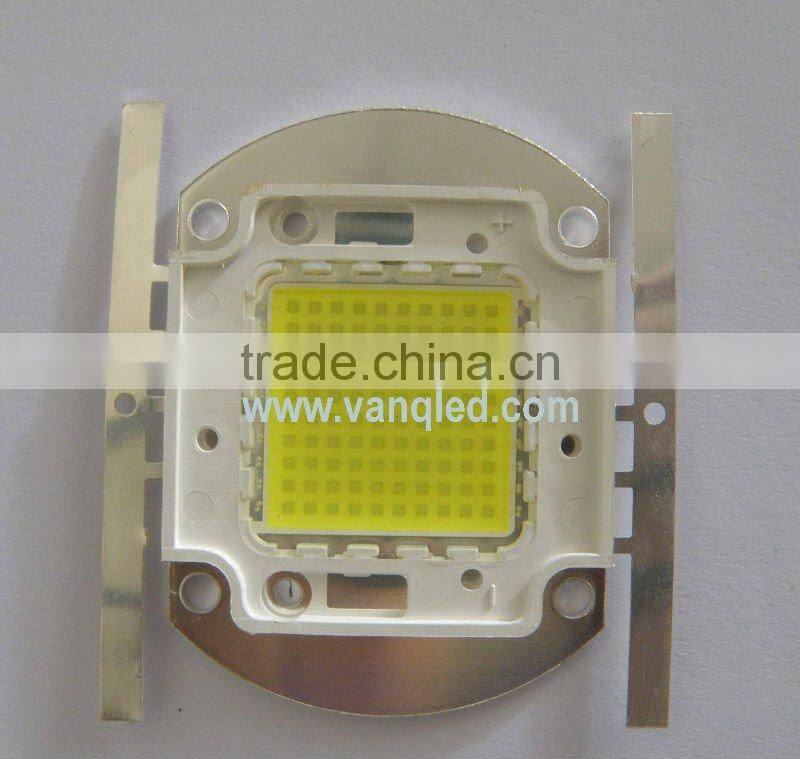

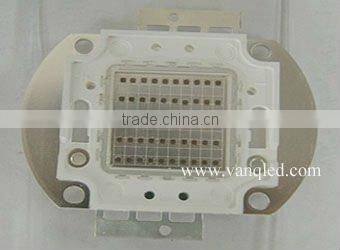

500w white high power LED&500w Red high power LED

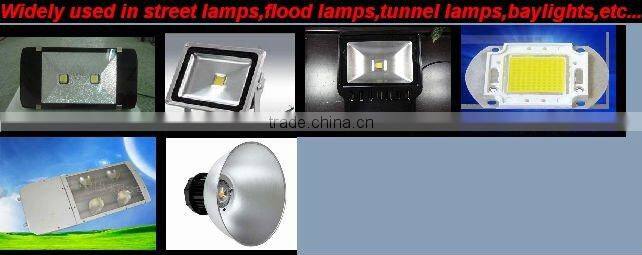

LED Application
Package
Our common MOQ is 10pcs.
Sample order is accepted in our first cooperation.
Payment&Shipment
1). Various payment terms are acceptable. such as paypal, western union, T/T, L/C.
2). Shipment is within 10 working days through DHL,Fedex,UPS,TNT
3). Packed in standard export carton box.Customized package box is available
Warranty
We offer 2 years warranty for our product from the purchasing date.Within warranty period,we offer free
repairing for the returned failed products which were operated under instruction.
Below circumstances are excluded from free repairing:
* the product wasn’t operated according to product manual.
*Artificial imposed quality problems.
*Self-transformation cause product’s failure.
Remark:
Please email us the photos of the failed light,we will do my best to solve your problem.
Start vanq is your best choice
1. Professional manufacturer of high power led for more than 5 years experience
2. Fully automatic production machine and quality checking machines
3. Own unique encapsulation technology. high-quality R&D team. special design.
4. Orignal Epileds,Epistar/Bridgelux/Epileds chips
5. All leds 100% QA passed before shipped
Our Service
1 We have our own independent R&D department, On existing products for better maintenance, we still continue to develop high-tech products, We have our own patented products.
2 Our products must pass strict quality control procedures.
3 We have advanced production equipment
4 We use the raw materials are from domestic and foreign well-known brand manufacturers.
5 After repeated tests before shipment.
