Specifications
100w high power led diodes1.45mil bridgelux led chip
2.Copper with silver chrome
3.excellent heat dissipation
4.CE&RoHS

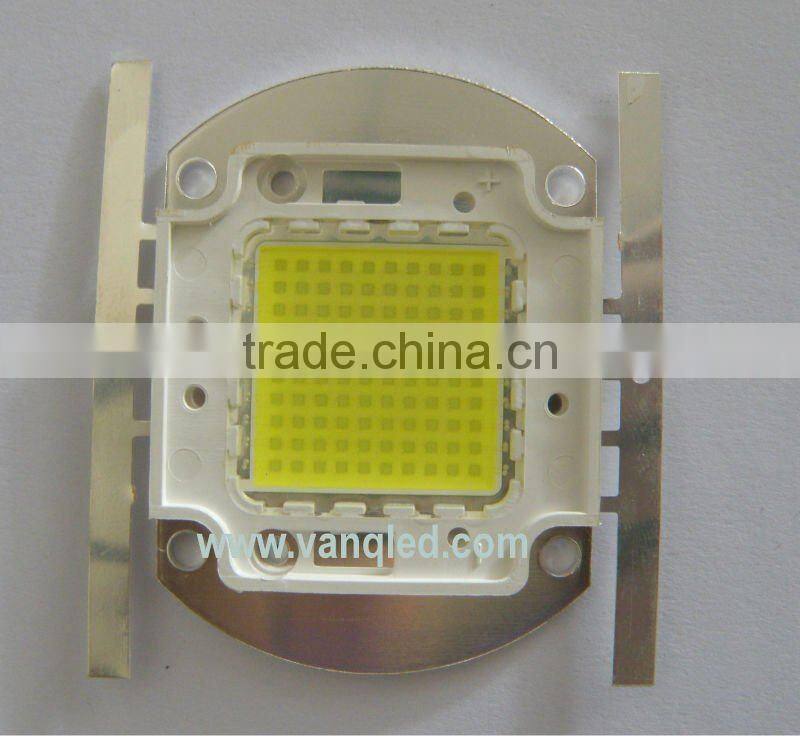

2013 cheap led array, 100w rgb high power led
High brightness,low light attenuation,less power, Long lifespan, posses a nice ability in anti-static.
Specification about 100w high power led:
Item:Integrated high power led
Power:100 W
Voltage:30-36 V
ing Current:3500 MA
Viewing Angle:120°
Luminous Flux:8000-10000 LM
Emitting color:customizable. Warm White /natural white/ Pure White/cool white
Color Temperature:customizable. 2500-3700K/3700-5000k/5000-7000k/7000-25000k
LED Array: customized available
Feature:
1. Adopt quality brand LED chip, Bridgelux, Epistar, Epiled Etc.
2. High brightness,low light attenuation,less power, Long lifespan, posses a nice ability in anti-static.
3. Import Japanese Dow Corning Silicon packing, in accordance with environmental protection, no lead included.
4. Lights attenuation: less than 2% within 2000 hours
5. Quality Intematix phosphors, quality assurance
7. Reasonable prices, fast delivery(3-5 days)
Parameter
| Part Number | Emitting Color | Forward Current(mA) | Power Dissipation(W) | Wavelength(nm) TC(K) | Drive Voltage(V) | LuminousFlux(lm) | |
| VQ-AA-80GW5018 | RED | 3500 | 100 | 620 | 22 | 1500 | Min |
| 625 | 23 | 1700 | Avg | ||||
| 630 | 34 | 2000 | Max | ||||
| VQ-AA-80GW5018 | YELLOW | 3500 | 100 | 585 | 22 | 1500 | Min |
| 590 | 23 | 1700 | Avg | ||||
| 595 | 24 | 2000 | Max | ||||
| VQ-AA-80GW5018 | BLUE | 3500 | 100 | 460 | 32 | 500 | Min |
| 465 | 33 | 600 | Avg | ||||
| 470 | 34 | 700 | Max | ||||
| VQ-AA-80GW5018 | GREEN | 3500 | 100 | 520 | 32 | 1500 | Min |
| 525 | 33 | 1700 | Avg | ||||
| 530 | 34 | 2000 | Max | ||||
| VQ-AA-80GW5018 | WHITE | 3500 | 100 | 2700 | 32 | 5200 | Min |
| 3000 | 33 | 9000 | Avg | ||||
| 3300 | 34 | 9500 | Max | ||||
| VQ-AA-80GW5018 | WHITE | 3500 | 100 | 5500 | 32 | 8500 | Min |
| 6000 | 33 | 9000 | Avg | ||||
| 7000 | 34 | 9500 | Max | ||||

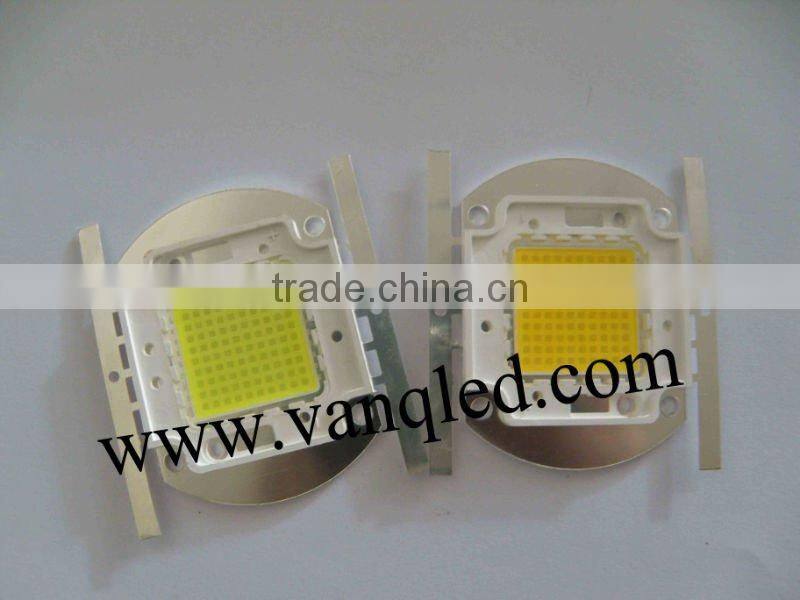

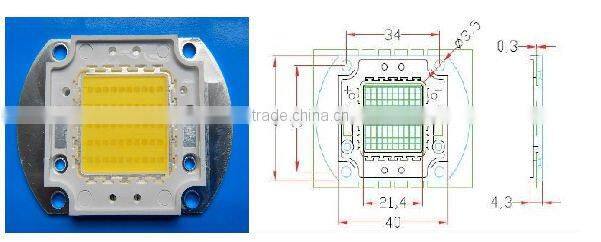

LED dimension of 30w-150w high power LED
Different color temp for white light

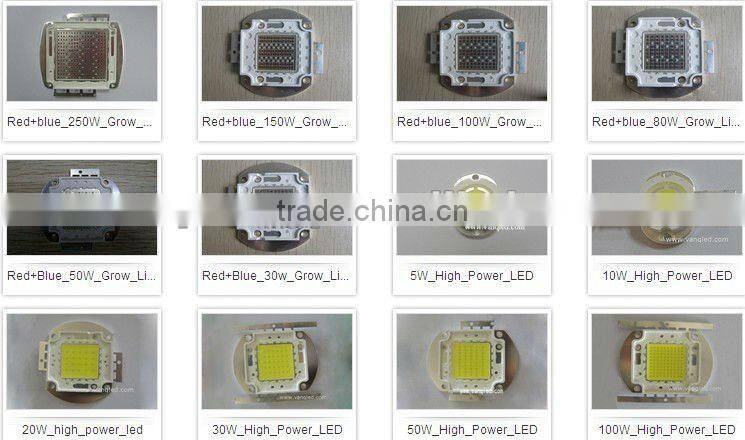

Series of LED grow light source (1w-300w) and LED (1w-500w)

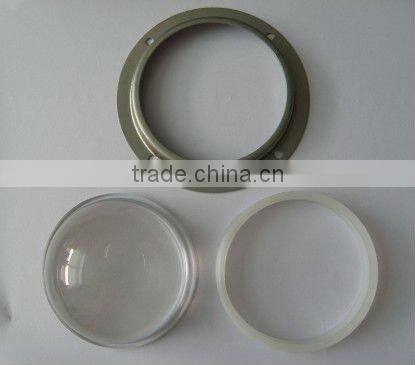

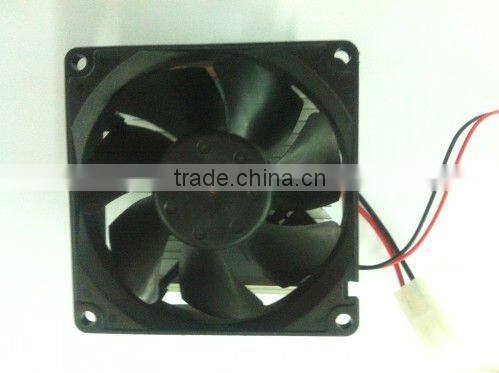

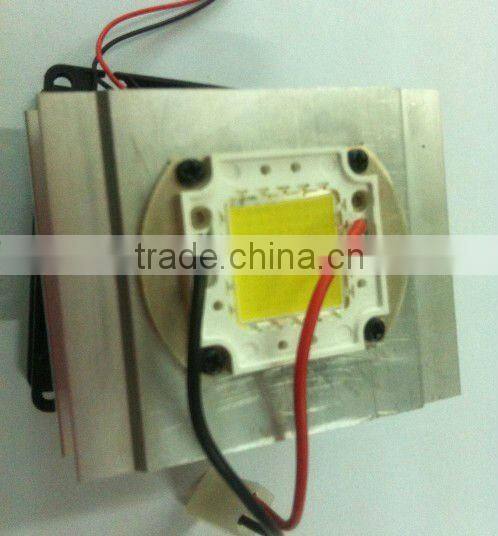

the Considerate Parts for LED lamp

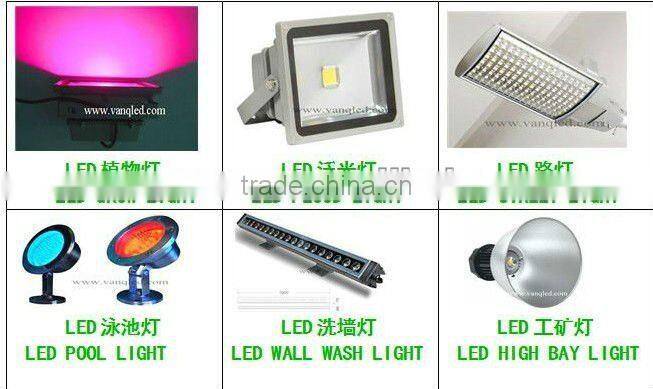

High power LED Application

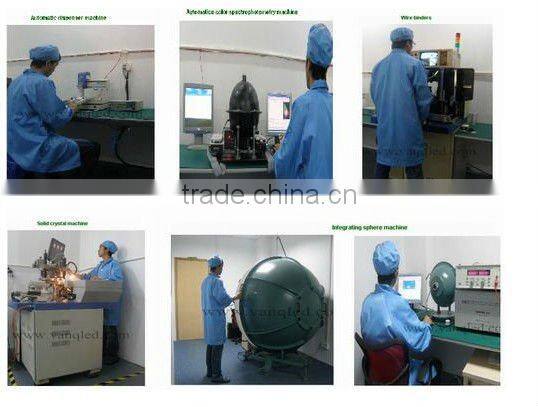

Production Facilities and testing Facilities
Company Photos and staff office
