Help Center120W Underfloor Heating Mat
Related Products
Specifications
120W underfloor heating mat1. Conductor: Metal alloy
2. AL screen
3, Tinned copper ground wir
4, Zero electromagnetic

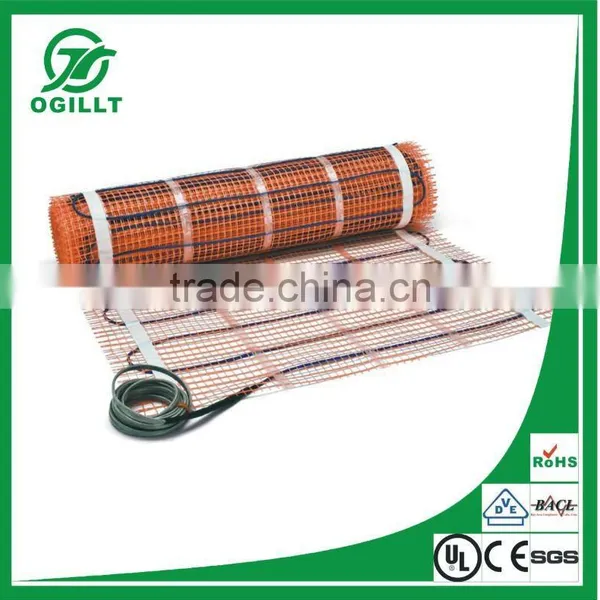

120W underfloor heating mat
Cable Construction: flat cable or round cable
Cold Tail: 2x2.5m (or as your enquiry)
Voltage: 240V (or as your enquiry)
Power: 150W-180W/M2 (or as your enquiry)
Outer sheath: Flame Retardant
Screen: Full Covering Metal Screen
Certification: CE & RoHS approved
Quality control: ISO9001
Product Description
Heat Mat can provide electric underfloor heating to fit beneath virtually any floor covering. They can supply systems from simple floor warming with low build height in a small bathroom, to complete heating systems for new-build blocks of flats where the floor covering has not been finalized. Heat Mat also produce solutions for ice and snow melting, frost protection and mirror de-misting in addition to bespoke products that can be manufactured to order.
Product Features
- 100% earth shielded undertile heating mats, in standard 150W/m² and powerful 180W/m² categories
- Unique fully earthed, cut and turn underlaminate system
- Ultra-thin fully earthed undertile heating cable allowing you to set the output
- Ease of installation
- emits zero electromagnetic fields
- genuine 10 year warranty
Cable Mat brings you the very best in design and manufacture and supplied as a finished installation friendly product complete with factory attached cold tail leads. The tough floor heating cable is uniformly spaced on a mesh mat which is easily cut and turned in any way to suit your floor space and layout.
heating mat (240V) | |||
| Length(feet) | Coverage(sq.ft.) | Watts(50W/sq.ft.) | Amps |
| 7.5 | 15 | 750 | 3.1 |
| 10 | 20 | 1000 | 4.2 |
| 12.5 | 25 | 1250 | 5.2 |
| 15 | 30 | 1500 | 6.3 |
| 17.5 | 35 | 1750 | 7.3 |
| 20 | 40 | 2000 | 8.3 |
| 22.5 | 45 | 2250 | 9.4 |
| 25 | 50 | 2500 | 10.4 |
| 30 | 60 | 3000 | 12.5 |
| 35 | 70 | 3500 | 14.6 |
| 40 | 80 | 4000 | 16.7 |
| 45 | 90 | 4500 | 18.8 |
| 50 | 100 | 5000 | 20.8 |
| 57.5 | 115 | 5750 | 24 |
| 65 | 130 | 6500 | 27.1 |
.
