Help CenterUnderfloor Heating Mat
Related Products
Specifications
underfloor heating mat1. Conductor: Metal alloy
2. AL screen
3, Tinned copper ground wir
4, Zero electromagnetic

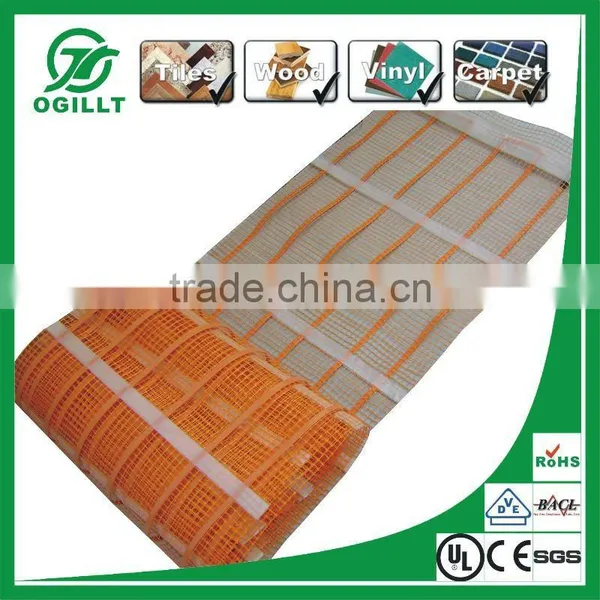

underfloor heating mat
Cable Construction: flat cable or round cable
Cold Tail: 2x2.5m (or as your enquiry)
Voltage: 220V (or as your enquiry)
Power: 150W-180W/M2 (or as your enquiry)
Outer sheath: Flame Retardant
Screen: Full Covering Metal Screen
Certification: CE & RoHS approved
Quality control: ISO9001
Product Description
Heat Mat can provide electric underfloor heating to fit beneath virtually any floor covering. They can supply systems from simple floor warming with low build height in a small bathroom, to complete heating systems for new-build blocks of flats where the floor covering has not been finalized. Heat Mat also produce solutions for ice and snow melting, frost protection and mirror de-misting in addition to bespoke products that can be manufactured to order.
Product Features
- 100% earth shielded undertile heating mats, in standard 150W/m² and powerful 180W/m² categories
- Unique fully earthed, cut and turn underlaminate system
- Ultra-thin fully earthed undertile heating cable allowing you to set the output
- Ease of installation
- emits zero electromagnetic fields
- genuine 10 year warranty
Cable Mat brings you the very best in design and manufacture and supplied as a finished installation friendly product complete with factory attached cold tail leads. The tough floor heating cable is uniformly spaced on a mesh mat which is easily cut and turned in any way to suit your floor space and layout.
150W/M2 (Parameter cable) | ||||||
| Item No. | Voltage(V) | Wattage(W) | Total Resistance (Ω) | width(M) | length(M) | Square(M2) |
| DX50-BX-150/2.0 | 220 | 300 | 160.8 | 0.5 | 4.0 | 2.0 |
| DX50-BX-150/2.5 | 220 | 375 | 129.0 | 0.5 | 5.0 | 2.5 |
| DX50-BX-150/3.0 | 220 | 450 | 106.6 | 0.5 | 6.0 | 3.0 |
| DX50-BX-150/3.5 | 220 | 525 | 92.4 | 0.5 | 7.0 | 3.5 |
| DX50-BX-150/4.0 | 220 | 600 | 80.2 | 0.5 | 8.0 | 4.0 |
| DX50-BX-150/4.5 | 220 | 675 | 71.8 | 0.5 | 9.0 | 4.5 |
| DX50-BX-150/5.0 | 220 | 750 | 64.8 | 0.5 | 10.0 | 5.0 |
| DX50-BX-150/5.5 | 220 | 825 | 58.7 | 0.5 | 11.0 | 5.5 |
| DX50-BX-150/6.0 | 220 | 900 | 54.0 | 0.5 | 12.0 | 6.0 |
| DX100-BX-150/2.0 | 220 | 300 | 160.8 | 1.0 | 2.0 | 2.0 |
| DX100-BX-150/2.5 | 220 | 375 | 129.0 | 1.0 | 2.5 | 2.5 |
| DX100-BX-150/3.0 | 220 | 450 | 106.6 | 1.0 | 3.0 | 3.0 |
| DX100-BX-150/3.5 | 220 | 525 | 92.4 | 1.0 | 3.5 | 3.5 |
| DX100-BX-150/4.0 | 220 | 600 | 80.2 | 1.0 | 4.0 | 4.0 |
| DX100-BX-150/4.5 | 220 | 675 | 71.8 | 1.0 | 4.5 | 4.5 |
| DX100-BX-150/5.0 | 220 | 750 | 64.8 | 1.0 | 5.0 | 5.0 |
| DX100-BX-150/5.5 | 220 | 825 | 58.7 | 1.0 | 5.5 | 5.5 |
| DX100-BX-150/6.0 | 220 | 900 | 54.0 | 1.0 | 6.0 | 6.0 |
180W/M2 (Parameter cable) | ||||||
| Item No. | Voltage(V) | Wattage(W) | Total Resistance (Ω) | width(M) | length(M) | Square(M2) |
| DX50-BX-180/1.85 | 220 | 330 | 148.7 | 0.5 | 3.7 | 1.9 |
| DX50-BX-180/2.25 | 220 | 400 | 116.1 | 0.5 | 4.5 | 2.3 |
| DX50-BX-180/2.75 | 220 | 500 | 97.7 | 0.5 | 5.5 | 2.8 |
| DX50-BX-180/3.15 | 220 | 570 | 83.2 | 0.5 | 6.3 | 3.2 |
| DX50-BX-180/3.65 | 220 | 650 | 73.2 | 0.5 | 7.3 | 3.7 |
| DX50-BX-180/4.0 | 220 | 720 | 63.8 | 0.5 | 8.0 | 4.0 |
| DX50-BX-180/4.5 | 220 | 810 | 58.3 | 0.5 | 9.0 | 4.5 |
| DX50-BX-180/5.0 | 220 | 900 | 53.4 | 0.5 | 10.0 | 5.0 |
| DX50-BX-180/5.5 | 220 | 990 | 49.5 | 0.5 | 11.0 | 5.5 |
| DX100-BX-180/2.0 | 220 | 360 | 134.0 | 1.0 | 2.0 | 2.0 |
| DX100-BX-180/2.5 | 220 | 450 | 107.5 | 1.0 | 2.5 | 2.5 |
| DX100-BX-180/3.0 | 220 | 540 | 88.8 | 1.0 | 3.0 | 3.0 |
| DX100-BX-180/3.5 | 220 | 630 | 77.0 | 1.0 | 3.5 | 3.5 |
| DX100-BX-180/4.0 | 220 | 720 | 66.8 | 1.0 | 4.0 | 4.0 |
| DX100-BX-180/4.5 | 220 | 810 | 59.9 | 1.0 | 4.5 | 4.5 |
| DX100-BX-180/5.0 | 220 | 900 | 54.0 | 1.0 | 5.0 | 5.0 |
| DX100-BX-180/5.5 | 220 | 990 | 49.0 | 1.0 | 5.5 | 5.5 |
| DX100-BX-180/6.0 | 220 | 1080 | 45.0 | 1.0 | 6.0 | 6.0 |
