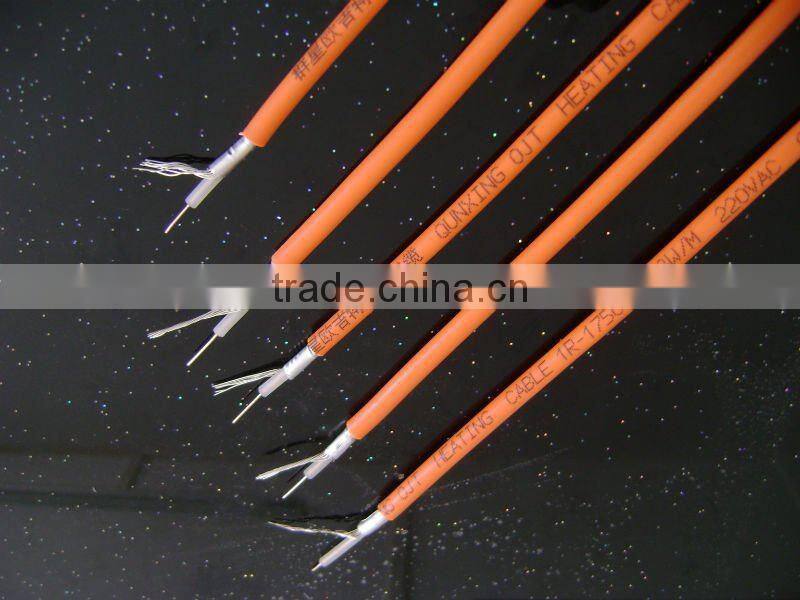

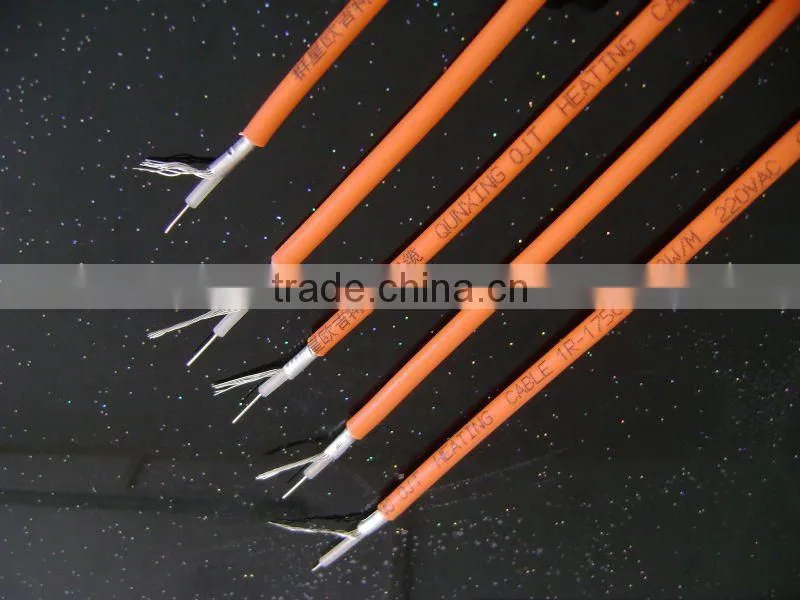

Underfloor Electric Heating Cable
20141010
1. Unify Heating Wire and Cold Tail
2.CE & RoHS approval

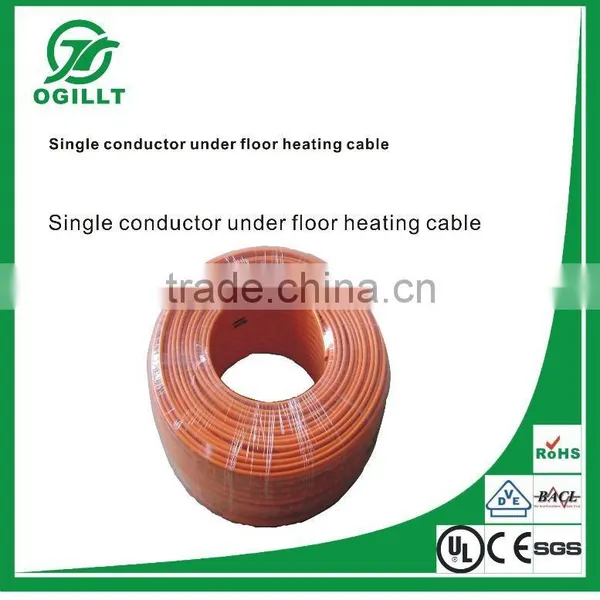

Single Conductor Underfloor Heating Cable
Technical Data:
Cable Construction: Sigle Conductor
Cable Shape: Round
Diameter:6.5mm
Cold Tail: 2x2.5m
Volt: 220V
Power: 18W/meter
Conductor Insulation: XLPE
Outer Sheath: Flame Retardant PVC
Screen: Full COVERING Metal Screen
| Specification | Power(W) | Length(M) | Total Resistance(ohm) |
| QX-1R-18W/m | 300 | 17 | 161.3 |
| QX-1R-18W/m | 500 | 28 | 96.9 |
| QX-1R-18W/m | 800 | 44 | 60.5 |
| QX-1R-18W/m | 1000 | 56 | 48.4 |
| QX-1R-18W/m | 1250 | 69 | 38.7 |
| QX-1R-18W/m | 1500 | 83 | 32.3 |
| QX-1R-18W/m | 1750 | 97 | 27.7 |
| QX-1R-18W/m | 2000 | 111 | 24.2 |
| QX-1R-18W/m | 2250 | 125 | 21.5 |
| QX-1R-18W/m | 2500 | 139 | 19.4 |
| QX-1R-18W/m | 2750 | 153 | 17.6 |
| QX-1R-18W/m | 3000 | 167 | 16.1 |
