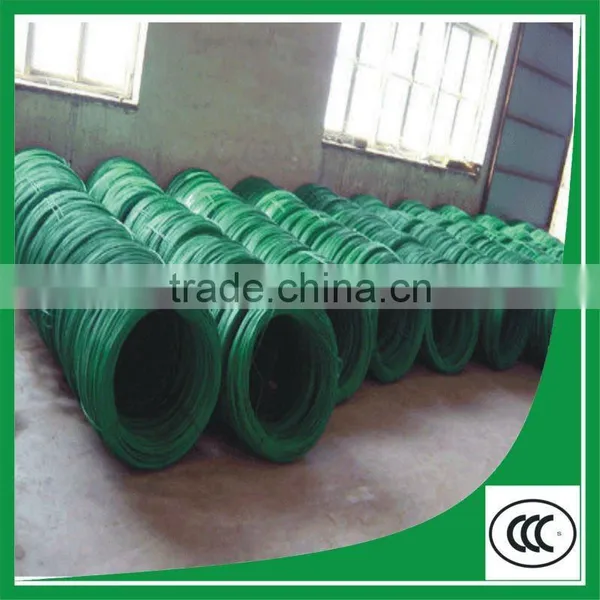

PVC Insulated Electric Wire for building
1.Standard: GB5023-85 or IEC227
2.Low voltage wires
3.Heavy duty quality
4.BV RV BVR
Insulated electical wire is manufactured according to GB5023-85 or IEC227
A. Electrical Wire's different conductors and valid section area:
| PVC Insulated Wire | |||
| Conductor | Insulation | Type | Section Area mm² |
| Copper | PVC | BV | 1-300 |
| Aluminum | BLV | 2.5-300 | |
| Copper | PVC(flame retardant) | ZRBV | 1.5-300 |
| Aluminum | ZRBLV | 2.5-300 | |
| Copper | Crosslinked Insulation | YJV | 1.5-630 |
| Aluminum | YJLV | 2.5-630 | |
| Copper | PVC(refractory) | NHBV | 1.5-300 |
B. Wires & Cables:
1). PVC insulated wire and cable
PVC insulated wires belong to the series of laying electric wires, which is mainly suitable for laying at the fixed places. It is widely used as connectors of drive, lighting, electric equipment, instruments and telecommunication equipment with rated voltage of 450/750V (U0/U) or below. Parts of the plastic wires are used at the equipment with AC rated voltage of 300/300V or below.
2). Electrical wire passed standards and application:
wire can be produced and provided according to standard GB/T 5023, IEC 60227, BS 6004, JB 8734. It's used of AC rated voltage 450V/750V(U0/U)and below for the following: Lighting, electrical installation, the connection between instrumentation and telecommunication equipment, partial PVC insulated electrical wire are used of 300/500V and below for the electrical equipments.
