3 awg wire
- 1000000000 Meter / Meters per Month
- Shenzhen Shanghai Ningbo
- T/T L/C D/P D/A Credit Card PayPal
- AY A108 Laser Radar FPC Cable Solves iPhone Camera Lag Problem
- 2.5/4/6mm red black solar cable 1500V DC solar cable awg PV solar panel cable
- New Design 4mm 6mm 10mm Tinned Copper Conductor DC Photovoltaic Solar pv Cable
- 2.5mm 4mm solar dc wire pv electric cable 6mm2 solar panel power cable H1Z2Z2-K photovoltaic solar extension wire
- electric power solar extension cable 6mm2 solar cable 4mm 10mm 16mm dc pv wire h1z2z2-k solar panel photovoltaic electric cable
- TUV pv solar cable Red 6mm PV1-F for solar panel collecting cable electric solar cable wire
Product Details
Place of Origin: | Guangxi, China | Brand Name: | Qunxing | Model Number: | pvc wire |
Insulation Material: | PVC | Type: | Low Voltage | Application: | Industrial |
Conductor Material: | Copper | Jacket: | PVC |
Product Description
Specifications
3 awg wire1,Conductor: Copper/Aluminum
2,Jacket:PVC
3,Standard:BS/VED/UL/CSA/CCC
4,Packing: roll
3 awg wire
Application and Description
These cables are designed for use as fixed wiring in domestic, Industrial power and lighting applications such as light fittings, appliances, switchgear and control gear, they can be used in conduit or trunking or surface mounted when used as an earth. 6491X is equivalent to H05V-U/H07V-U/H07V-R.The heat-resistant version is ideal for use in installation which are subject to direct contact with high temperature equipments (e.g. varnishing machines and drying towers etc.).
Cable Construction

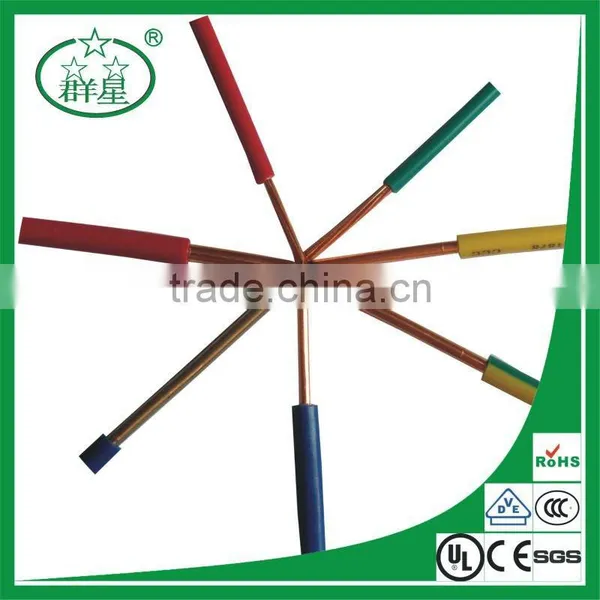

- Bare copper made of solid/strands conductor
- Stranding to BS/VED/UL/CSA/CCC
- Special PVC core insulation
- H05V-U (20, 18 & 17 AWG)
- H07V-U (16 AWG and Larger)
Core Identification
Green/Yellow, Black, Blue, Brown, Red, White, Grey, Violet
- Working voltage: 300/500 volts, 450/750 volts
- Test voltage: 2000 volts(H05V-R), 2500 volts(H07V-U/H07V-R)
- Minimum bending radius: Up to 10mm²: 3xoverall diameter
10mm² to 25mm²: 4xoverall diameter
Above 25mm²: 5xoverall diameter
- Operating temperature: -0º C to +70º C/105 º C(for 6491X HR)
- Short circuit temperature: +160º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 10 MΩxkm
Cable Parameter
