Medium Voltage Heavy Duty Steel Tape Armored Cable WDZN Cable

Medium Voltage Heavy Duty Steel Tape Armored Cable WDZN Cable photo-1
Medium Voltage Heavy Duty Steel Tape Armored Cable WDZN Cable photo-2
Medium Voltage Heavy Duty Steel Tape Armored Cable WDZN Cable photo-3
Medium Voltage Heavy Duty Steel Tape Armored Cable WDZN Cable photo-4
Medium Voltage Heavy Duty Steel Tape Armored Cable WDZN Cable photo-5
Medium Voltage Heavy Duty Steel Tape Armored Cable WDZN Cable photo-6
US$ 0.08 - 45 MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangxi, China
Brand Name:
QUNXING
Insulation Material:
PVC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangxi, China
Brand Name QUNXING
Insulation Material PVC
Type Medium Voltage
Application Other, laying indoor, tunnels, underground, etc
Conductor Material Other, copper or aluminum
Jacket PVC

Medium Voltage Heavy duty Steel tape Armored Cable

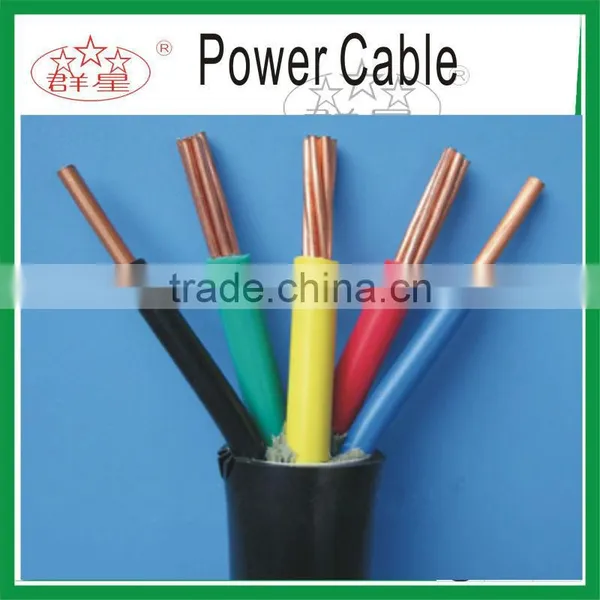

1.Medium Voltage power cable
2.Heavy duty cable
3.Steel tape/wire Armored Cable
4.MOQ: 500 meters
5.ISO: 9001:2007 & 3C





A. Application

(1)Rated voltage Uo/U is 0.6/1 kilovolts.

(2)Maximum rated temperature of cable conductor is 90°C.

(3)Maximum conductor temperature is lower than 250°C when cable is shorted for less than 5 seconds.

(4)Ambient temperature is not lower than 0°C and its minimum bending radius is as follows when cable is installed.



B. Type of power cable

Type

Name

JKV   JKLV

0.6/1kv,10kv,35kv

Cu./Al. Conductor PVC Insulated Aerial Cable for Rated Voltage 0.6/1kv,10kv,35kv

JKY   JKLY

0.6/1kv,10kv,35kv

Cu./Al. Conductor PE Insulated Aerial Cable for Rated Voltage 0.6/1kv,10kv,35kv

JKYJ  JKLYJ

0.6/1kv,10kv,35kv

Cu./Al. Conductor XLPE Insulated Aerial Cable for Rated Voltage 0.6/1kv,10kv,35kv



Cores No. Cu Conductor Al Conductor
YJV,ZRYJV YJV22,ZRYJV22 YJLV,ZRYJLV YJLV22,ZRYJLV22
1 1.5-500 10-500 10-500 10-500
2 1.5-500 4-300 10-300 10-300
3 1.5-500 2.5-300 10-300 10-300
4 1.5-500 2.5-300 10-300 10-300
5 1.5-500 2.5-300 10-300 10-300
3+1 4-300 4-300 10-300 10-300
3+2 4-300 4-300 10-300 10-300
4+1 4-300 4-300 10-300 10-300





 Medium Voltage Heavy duty Steel tape Armored Cable WDZN cableMedium Voltage Heavy duty Steel tape Armored Cable WDZN cable

 20170208

 Medium Voltage Heavy duty Steel tape Armored Cable WDZN cable



Medium Voltage Heavy duty Steel tape Armored Cable WDZN cable
