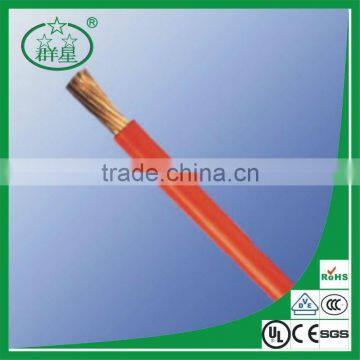

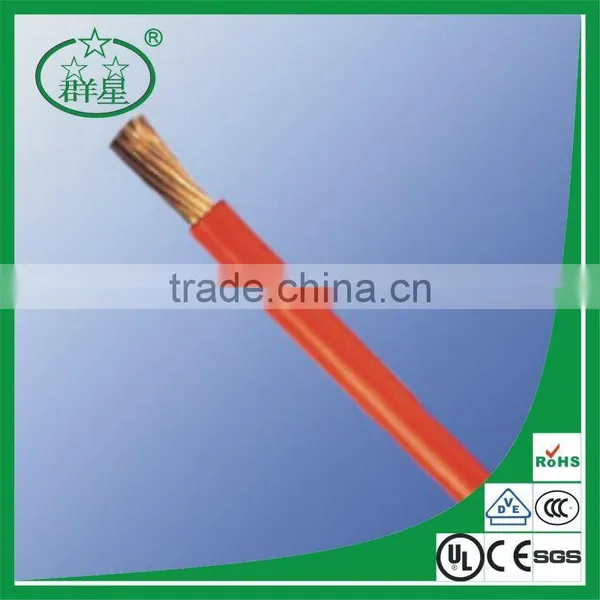

wire 1.5 mm

Specifications

wire 1.5 mm
1,Conductor: Copper/Aluminum
2,Jacket:PVC
3,Standard:BS/VED/UL/CSA/CCC
4,Packing: roll

wire 1.5 mm







Application and Description



These cables are designed for use as fixed wiring in domestic, Industrial power and lighting applications such as light fittings, appliances, switchgear and control gear, they can be used in conduit or trunking or surface mounted when used as an earth. 6491X is equivalent to H05V-U/H07V-U/H07V-R.The heat-resistant version is ideal for use in installation which are subject to direct contact with high temperature equipments (e.g. varnishing machines and drying towers etc.).



Cable Construction



- Bare copper made of solid/strands conductor

- Stranding to  BS/VED/UL/CSA/CCC

- Special PVC  core insulation

- H05V-U (20, 18 & 17 AWG)

- H07V-U (16 AWG and Larger)



jacketed wire



Green/Yellow, Black, Blue, Brown, Red, White, Grey, Violet









- Working voltage: 300/500 volts, 450/750 volts

- Test voltage: 2000 volts(H05V-R), 2500 volts(H07V-U/H07V-R)

- Minimum bending radius: Up to 10mm²: 3xoverall diameter

                                                 10mm² to 25mm²: 4xoverall diameter

                                                  Above 25mm²: 5xoverall diameter

- Operating temperature: -0º C to +70º C/105 º C(for 6491X HR)

- Short circuit temperature: +160º C

- Flame retardant: IEC 60332.1

- Insulation resistance: 10 MΩxkm



Cable Parameter
