Help CenterXlpe Cable 300mm
Related Products
Specifications

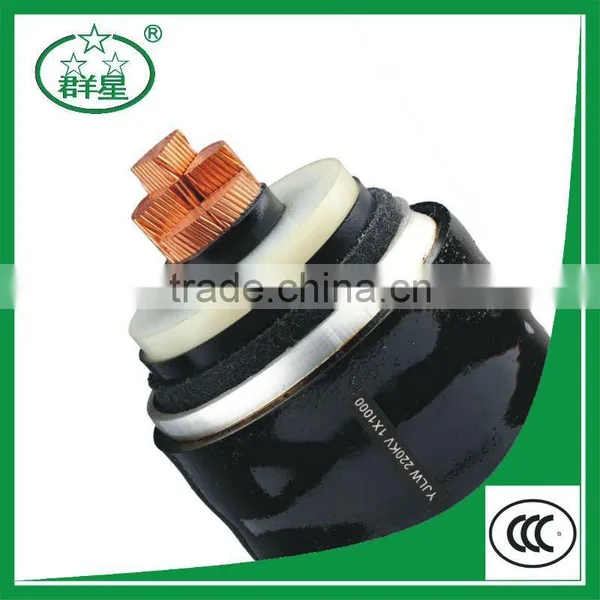

xlpe cable 300mm1,Conductor: ALuminum,Copper
2,Insulation: XLPE
3,Jacket:PVC
4,Armored:Option
xlpe cable 300mm
Application:
Power cables for power networks, underground, outdoors and in cable ducting.
Standards:
GB/T 12706,GB/T11017,GB/T 18380
Conductor:
Copper & Aluminum
Conductor screen:
Semi-conducting Layer
Insulation:
XLPE
Insulation Screen:
Semi-conducting Layer
Metallic Screen:
Individual and overall copper tape screen
Bedding:
PVC
Armoring:
Single Core: Aluminum Wire Armored (AWA)
Multicourse: Steel Wire Armored (SWA)
Sheath:
PVC
Color:
Red or Black
Voltage Rating:
19000/33000V
Temperature Rating:
0 to +70°C
Minimum Bending Radius:
Single Core: 15 x overall diameter
Three Core: 12 x overall diameter
(Single Core 12 x overall diameter and 3 core 10 x overall diameter where bands are positioned adjacent to joint or terminations provided that the bending is carefully controlled by the use of a former)
>Not drop restriction on laying
>Stable & process performance
>Strong ability to adapt to the environment
>Short circuit (the longest duration of not more than 5s)
>The highest temperature of cable does not exceed 250 °C
>The maximum normal operating temperature of conductor 70°C
>Good flexibility, easy maintenance, installation, simple structure
>AC rated voltage 0.6/1kv,50 HZ for the fixed installation , transmission and distribution lines.
In cable laying, to ensure sufficient mechanical tension in the case of not drop restrictions, but the single core cable can’t be laid in the iron pipe, it’s also not permissible for using steel instrument around and fix the cable .During the cable laying ,its temperature is not less than zero,
33kV XLPE Cable
Cable Type
Nominal Cross Sectional Areamm²
Nominal Diameter Under Armour
Nominal Diameter Over Armour
Nominal Diameter Overall
Nominal Weight
Continuous Current Rating in Ground – Trefoil
Continuous Current Rating in Ground – Flat
mm
mm
mm
kg/Km
Amps
Amps
Copper
1 x 70
32.6
36.6
41
2300
270
280
Copper
1 x 95
34.3
38.3
42.9
2650
320
335
Copper
1 x 120
35.9
39.9
44.5
3000
360
380
Copper
1 x 150
37.5
42.5
47.3
3500
410
430
Copper
1 x 185
39.3
44.3
49.3
4000
455
485
Copper
1 x 240
41.7
46.7
51.7
4650
520
560
Copper
1 x 300
44.2
49.2
54.4
5450
580
640
Copper
1 x 400
47.3
52.3
57.7
6350
650
730
Copper
1 x 500
50.5
55.5
61.1
7600
710
830
Copper
1 x 630
54.2
59.2
65
9150
760
940
